Hypertherm Powermax45 SYNC Plasma Cutter w/ CPC Port, 75° Handheld Torch, 20ft Lead (200-240V 1PH) #088562

Part Number: 088562
UPC: 662310523961
$3,025.00 + Free Shipping

Plasma torch:

Handheld

Handheld

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

  • 50ft torch leads20' Leads
  • Handheld plasma torch included75° Hand Torch
  • CPC portCPC Port
  • 220V single phase power input220-240V
  • Single phase plasma cutting machine1-Phase
  • Hypertherm 3 year warranty3-Year Power Warranty

Powermax45 SYNC Portable Plasma Cutting Machine w/ CPC Port, 75° Hand Torch & 20ft Leads (200-240V 1PH) #088562

Introducing the Hypertherm Powermax45 SYNC plasma cutter, engineered to elevate your cutting experience. Operating at 200-240V input, this cutter offers unparalleled precision and power. Featuring a convenient CPC port, seamlessly integrate auxiliary CNC equipment for enhanced functionality. Navigate effortlessly with the 75 degree handheld torch, ensuring precise cuts in any position. With a generous 20ft lead & work cable, tackle projects with confidence and efficiency. Transform your workspace with the versatility and reliability of the Powermax45 SYNC.

Hypertherm logo

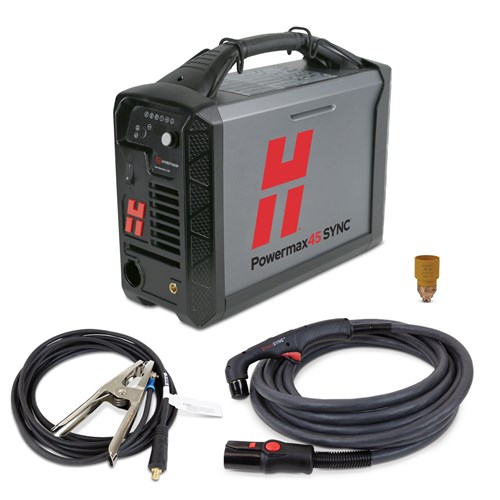

What's Included

  • Powermax45 SYNC power supply w/ CPC port
  • 75° handheld SmartSYNC torch
  • 20ft torch lead
  • 20ft work clamp
  • 10ft power cable
  • (1) 45A Drag Cut SmartSYNC Cartridge
  • Operator and Safety Manuals

Cut Capacity

  • Recommended: 5/8" @ 20 ipm (16mm @ 500 mm/min)
  • Severance (hand cutting): 1 1/8" @ 5 ipm (29mm @ 125 mm/min)
  • Pierce*: 1/2" (12mm)

Max Removal Gouging - Typical Gouge

  • Metal removal rate: 7.5 lbs/hr (3.4kg/hr)
  • Groove profile: 0.12" D x 0.26" W (3.2mm D x 6.8mm W)

*Pierce rating for handheld use or with automatic torch height control.

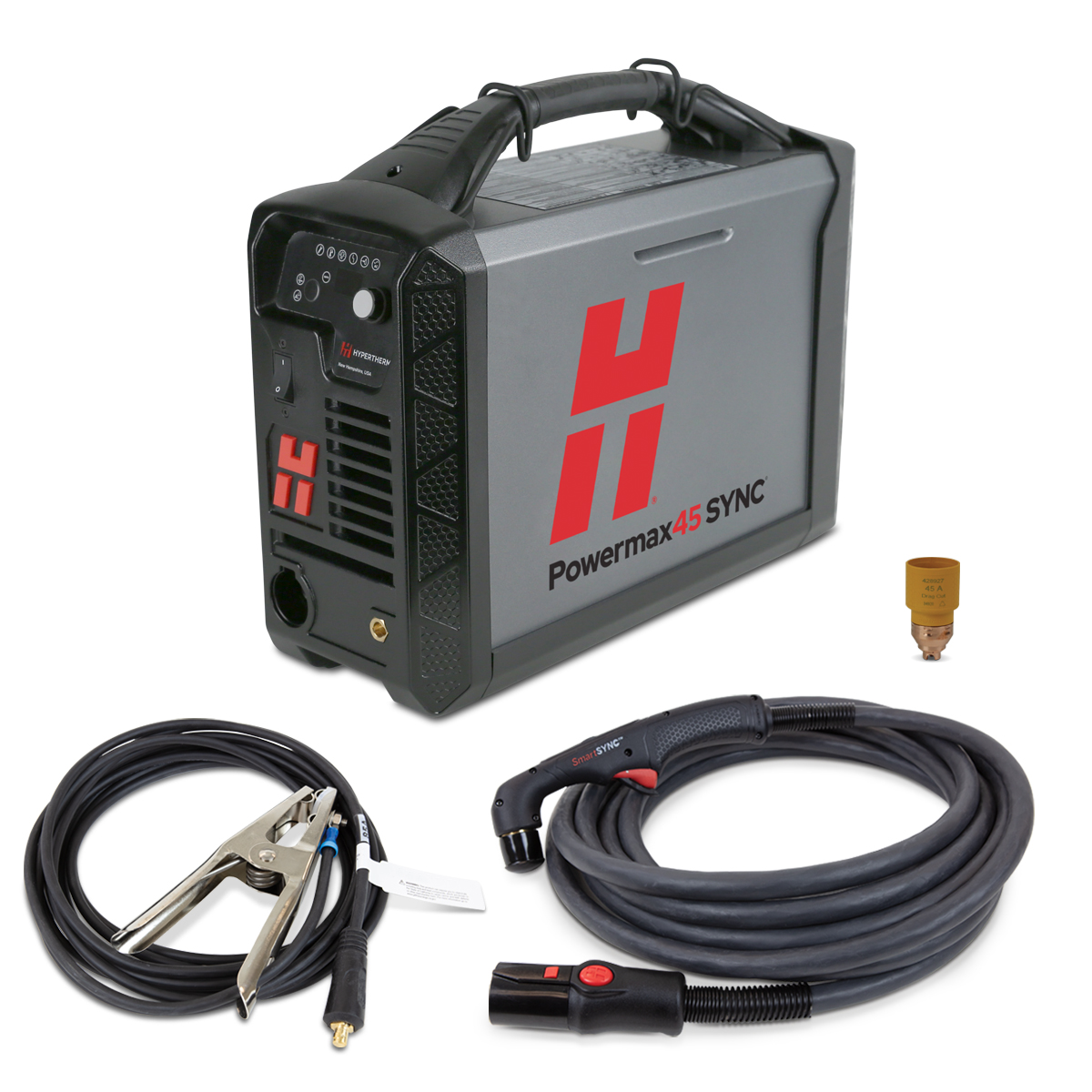

Powermax45 SYNC 088562 - What's Included

Applications:

  • Drag Cutting: High-speed, general purpose cutting for straight lines and simple shapes. Ideal for scrap metal processing, fabrication, and construction.
  • Mechanized Cutting: Automated or table-based cutting for increased productivity and precision. Suitable for high-volume production and complex parts.
  • Fine Feature Cutting: Precision cutting for intricate details with minimal material loss and heat-affected zone. Used in automotive, aerospace, and mold and die industries.
  • Flush Cutting: Edge preparation for welding or beveling by cutting close to the base material. Common in shipbuilding and structural fabrication.
  • Max Control Gouging: Precise metal removal for weld preparation, surface cleaning, and creating grooves. Applicable in repair and maintenance.
  • Max Removal Gouging: Aggressive metal removal for heavy-duty applications like salvaging and demolition. Used less frequently due to its specialized nature.
Powermax45 SYNC Cutting Applications

Powermax45 SYNC Benefits:

Maximize Uptime and Efficiency

  • Reduced downtime: Up to 5x longer consumable life compared to previous models and simplified change-outs
  • Improved productivity: RFID SmartSYNC torches and laser-marked cartridges minimize setup errors and downtime
  • Lower operating costs: Decreased training, troubleshooting, and consumable disposal expenses

Enhance Operator Experience

  • Simplified operation: Intuitive design and on-torch controls for faster adjustments
  • Reduced fatigue: Flexible torch leads for improved comfort
  • Accurate performance: Cartridge usage data for optimized inventory management

Deliver Superior Cut Quality

  • Consistent performance: SpringStart™ technology ensures reliable ignition
  • Versatile applications: Easily switch between cutting, gouging, and flushing with different cartridges
  • Optimized results: Advanced torch communication for precise amperage control and cut quality

Fast, Free Shipping & Easy Returns

Your in-stock items ship same or next day from our five distribution hubs in WI and IL via fast UPS Ground. Need special shipping? Just call 1-844-682-0205 - we accommodate any request, including using your shipping accounts. Enjoy hassle-free 14-day returns on new, sealed products. Count on exceptional service backed by industry-leading shipping and return policies. Experience the advantage on your next order!

All Hypertherm Powermax 45 SYNC Models

  Power Supply Only Handheld Torch Included Machine Torch Included
Handheld Only
CPC Port
CPC & Serial Port

Hypertherm Powermax45 SYNC Features

Shop Powermax SYNC plasma cutters and compatible SmartSYNC consumables at the lowest prices online, from Welders Supply.

This product replaces these legacy models:

Powermax45 SYNC Torches & Consumables

Powermax45 SYNC Specs:

Cut Capacity

Recommended 5/8" (16 mm)
@ 20 ipm (500 mm/min)
Severance (hand cutting) 1 1/8" (29 mm)
@ 5 ipm (125 mm/min)
Pierce 1/2" (12 mm)

Input, Output & Operation

Input voltages

CSA
200-440 V, 1-PH, 50/60 Hz
480 V, 3-PH, 50/60 Hz
480 V, 3-PH, 10 A @ 6.9kW

CE
230 V, 1-PH, 33 A
400 V, 3-PH, 10 A

Kilowatt output 6.9kW
Input current 9-45 A
Output current 155 VDC
Rated output voltage

CSA
200-240 V, 1-PH 39/32 A @ 6.5 kW

CE
230 V, 1-PH, 33 A
400 V, 3-PH, 10 A

Duty Cycle @ 104° F

CSA
50% @ 45 A, 200-240 V, 1-PH
60% @ 41 A, 200-240 V, 1-PH
100% @ 32 A, 200-240 V, 1-PH
50% @ 45 A, 480 V, 3-PH
60% @ 41 A, 480 V, 3-PH
100% @ 32 A, 480 V, 3-PH

CE
50% @ 45 A, 230 V, 1-PH
60% @ 41 A, 230 V, 1-PH
100% @ 32 A, 230 V, 1-PH
50% @ 45 A, 400 V, 3-PH
60% @ 41 A, 400 V, 3-PH
100% @ 32 A, 400 V, 3-PH

Open circuit voltage (OCV)

CSA
275 VDC 200-240 V
275 VDC 480 V

CE
265 VDC 400 V

Gas supply Cutting: air (clean, dry and oil-free), nitrogen, F5
Gouging: air (clean, dry and oil-free), nitrogen, F5
Marking: air (clean, dry and oil-free)
Recommended gas inlet flow rate/pressure 400 scfh @ 85 psi (188 l/min @ 5.9 bar)
Input power cable length 10 ft (3 m)
Power supply type Inverter - IGBT
Engine drive requirement 12.5 kVA (10 kW) for full 45 A output
Electrical efficiency 90%
Certifications CSA - certified for use in the Americas and Asia, except China
CE - for use in Europe, Australia, New Zealand, Belarus, Kazakhstan, Serbia, Ukraine, and other countries where accepted.
Also RCM, Ukraine and Serbian. UKCA - Great Britain
Warranty Power supplies have a 3-year warranty and torches a 1-year warranty

SHIPPING DIMENSIONS

Height: 14.00 Inches
Width: 6.80 Inches
Length: 17.40 Inches
Weight: 31 Lb(s) 0 Oz
