Miller CONTINUUM 500 230-575V W/RUNNIN #907640001
220V 3 Phase

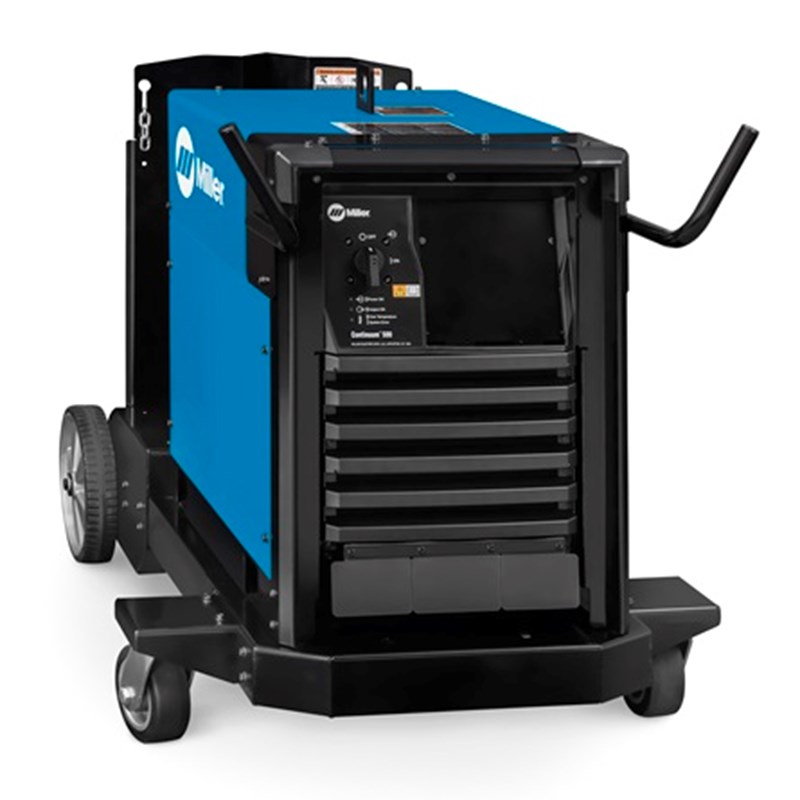

Continuum™ 500 w/Running Gear #907640001

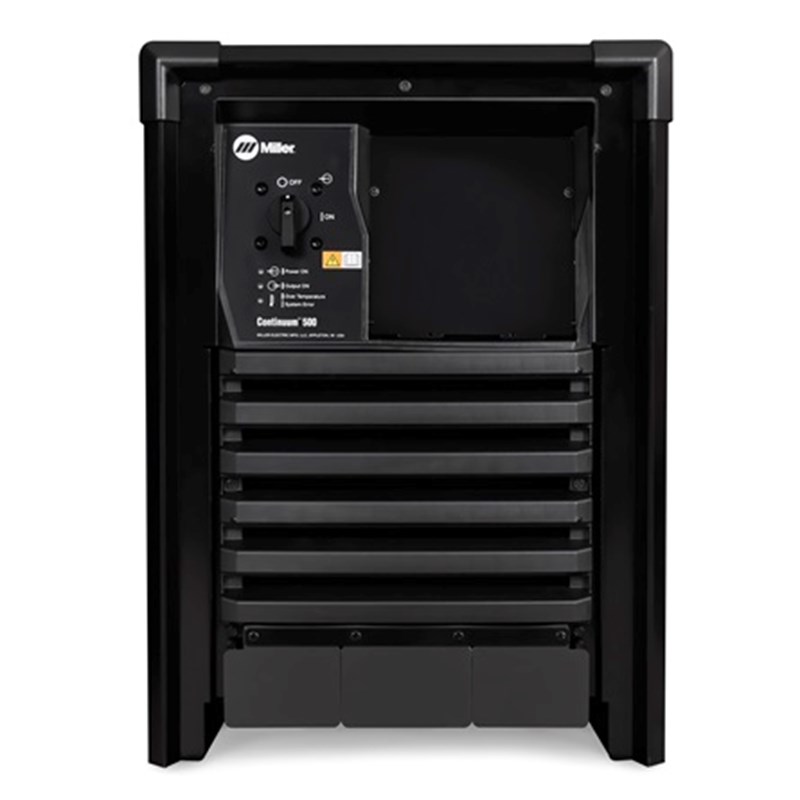

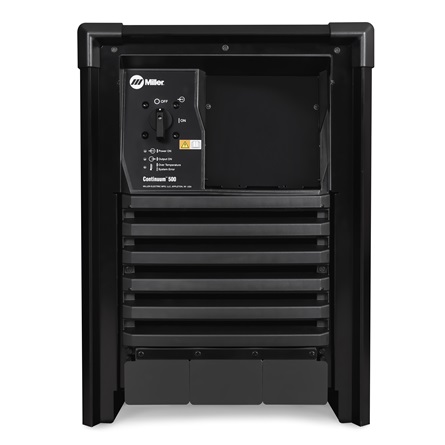

All-new power source design
- Smart and powerful digital design has the fast response needed to deliver the most stable welding performance for better welding results.
- Developed as a platform to meet current and future needs with integrated expansion capabilities.
Superior Arc Performance
- Improved Accu-Pulse® provides less spatter, better arc control and less heat input – very forgiving to changes in stick-out.
- Improved MIG performance delivers consistently smooth arc starts and reduced spatter.
- Improved RMD – designed for thin materials and gap filling with very low spatter.
New Weld Processes
- Versa-Pulse™ is a fast, low-heat, low-spatter process resulting in faster travel speeds and increased productivity for semi-automated and automated welding. Typically used on thin materials up to 1/4 inch., great for gap filling on sheet metal and tube applications.
- High-Deposition MIG offers higher deposition rates than standard spray transfer — resulting in faster welding and increased productivity. Typically used for thicker material and larger welds (6 to 8 mm).
Adaptable to a Variety of Weld Cell Configurations

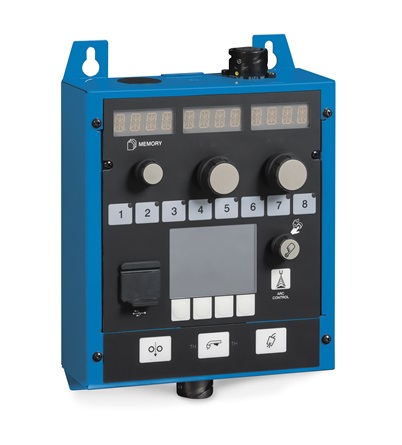

- Flexible user interface location (power source, feeder, remote operator interface)
- Welding Intelligence™ Solutions: Insight Core™ (standard) and Insight Centerpoint™ (optional)
- Easily add process and programs
- Wire feeder is easily configurable for standard spool sizes, 60-pound spools or bulk-feeding systems
Auto-Line™ Power Management Technology - Allows for any input voltage hookup (230–575 V) with no manual linking. Eliminates weld defects caused by dirty or unreliable power.

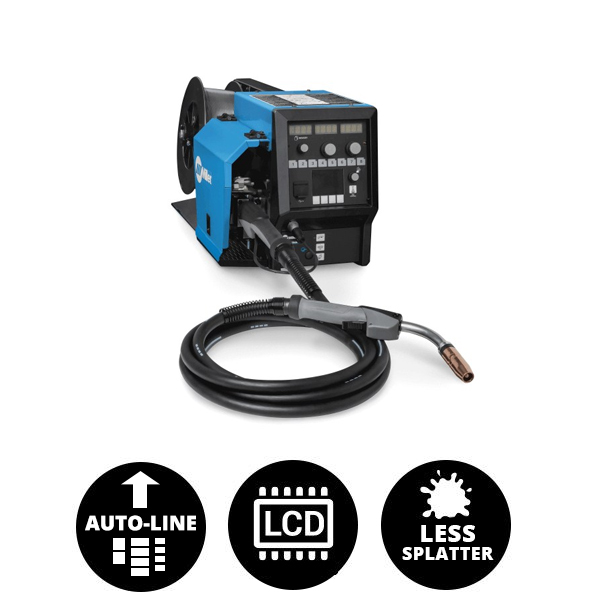

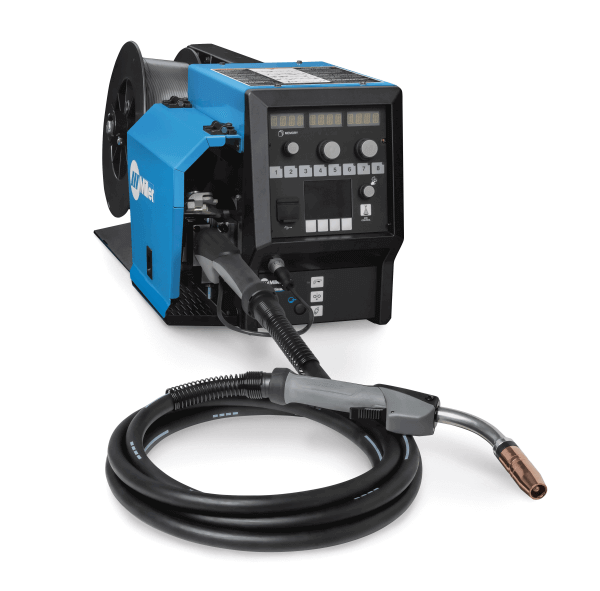

All-new feeder design
- Faster motor response provides the best arc starts with the least amount of spatter.
- Tru-Feed ™ Technology provides precise feeding operation for stable arc performance.
LCD Display - New user interface makes the system easy to set up and adjust with minimal training. Shows complete words, graphics and numeric values.
Easy to Set Up and Adjust with Minimal Training
- 8 program/memory buttons
- USB functionality for updates, cloning and more.
- Browser-based connection to remotely view and adjust machine parameters, configure machine settings and ability to set locks and limits.
Tool-less, Lockable Rotatable Drive
- Allows operator to rotate the drive, eliminating severe bends in the wire feeding path.
- Extends gun-liner life.
- Aids in feeding difficult wires.
Balanced-pressure Drive-roll Design and Tensioner - Feed wire in its truest and straightest form for consistent feedability, resulting in better welding performance.
See our line of quality welding equipment or view our full selection of quality welding machines and welding machine accessories.
|Title||Continuum™ 500 w/Running Gear|
|Industries Interests||Heavy Equipment Manufacturing
|Weldable Metals|| Stainless Steel
|Input Voltage||220/230/240 V
|Rated Carbon Diameter||1/2 in (12.7 mm)|
|Input Hz||50/60 Hz|
|Max Open Circuit Voltage||75 VDC|
|Weld Output||CC / CV|
|Net Width||28 in|
|Net Height||36 in|
|Net Length||48 in|
Miller's True Blue Warranty
