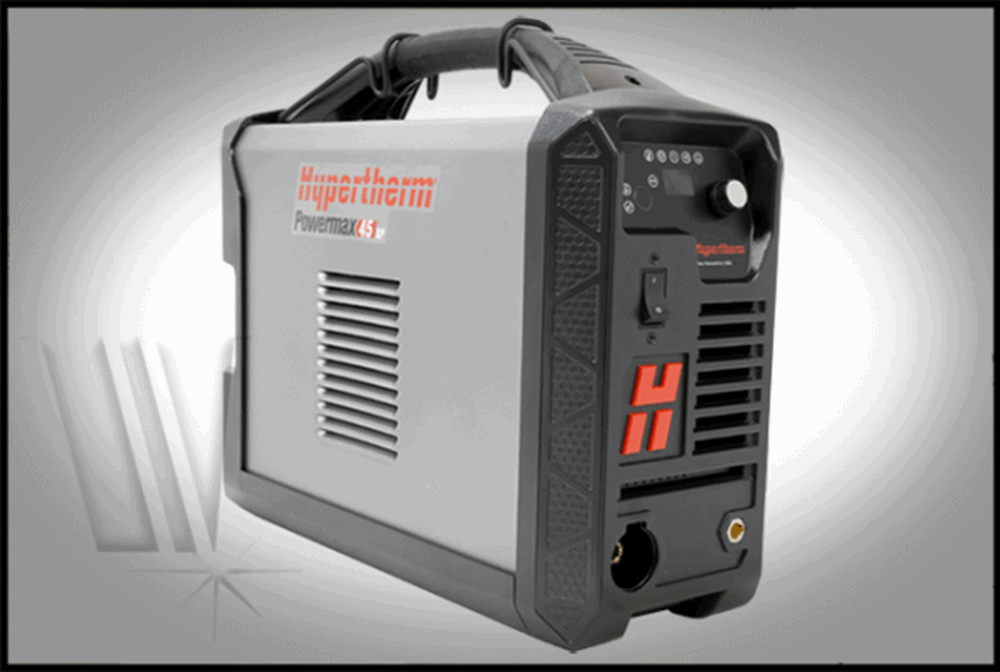

Hypertherm Powermax 45 XP #088121 Machine System CPC 25' Leads

Powermax 45

Output current: 20-45

kW output @max power: 5.95

Cut capacity: ½” (12mm)

Severance: 1” (25mm)

Auto gas adjustment: no

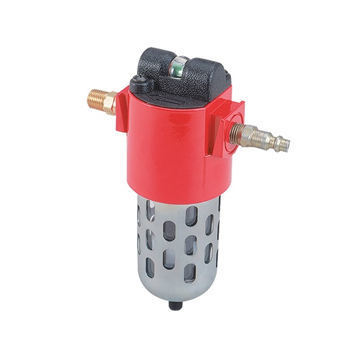

Easily accessed, protected
air filter regulator: no

Number of torch options: 2

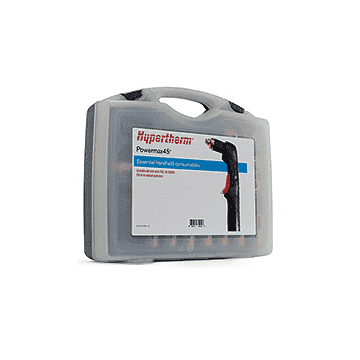

Consumables styles: 4

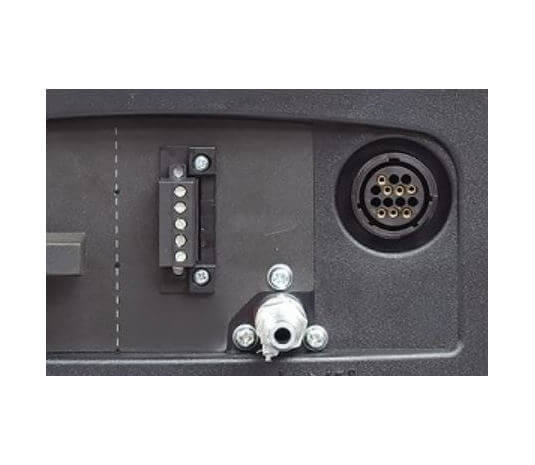

Machine interface options: standard CPC port

F5 gas operation: no

Precision gouging capability: no

Powermax 45 XP

Output current: 10-45

kW output @max power: 6.5

Cut capacity: 5/8” (16mm)

Severance: 1 1/8” (29mm)

Auto gas adjustment: yes

Easily accessed, protected
air filter regulator: yes

Number of torch options: 11

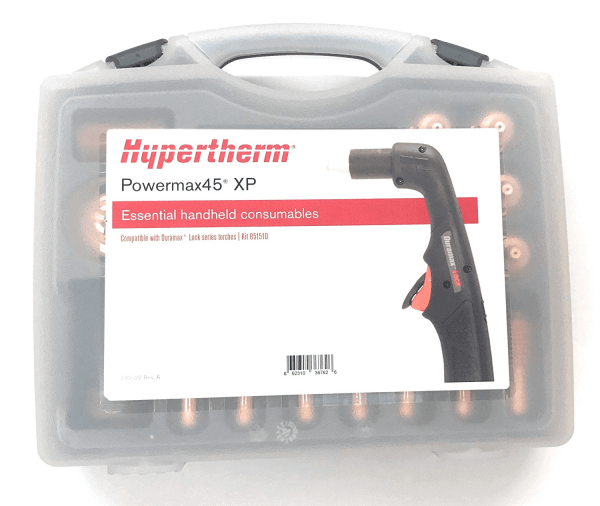

Consumables styles: 7

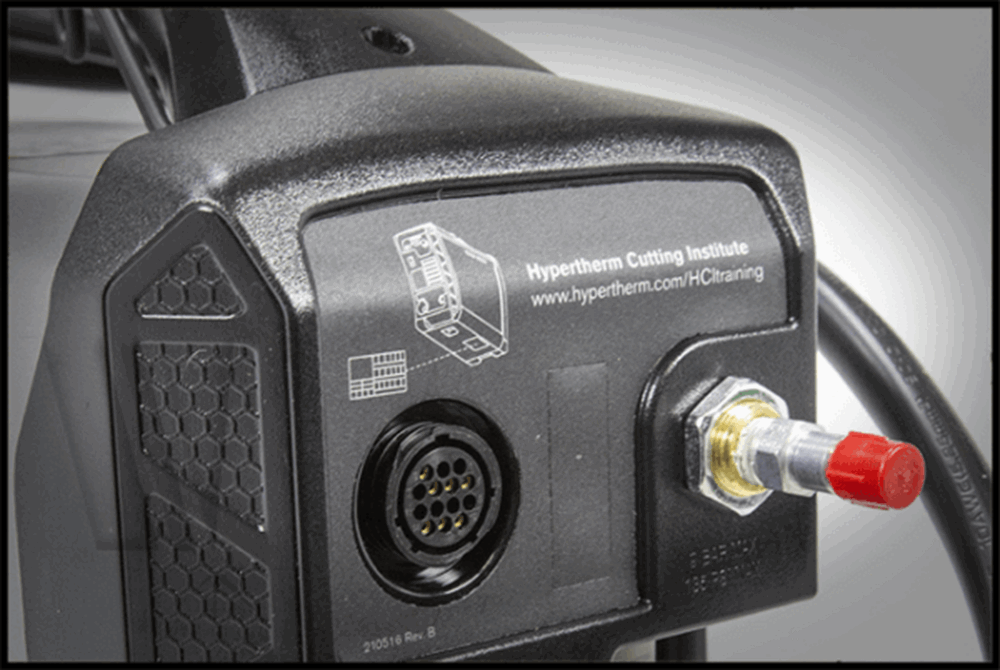

Machine interface options: Optional CPC*

F5 gas operation: yes

Precision gouging capability: yes

Input voltages
(± 10%)

CSA:
200 – 240 V, 1-PH, 50-60 Hz
480 V, 3-PH, 50-60 Hz

CE/CCC:
230 V, 1-PH, 50-60 Hz
400 V, 3-PH, 50-60 Hz

Input Current @ 5.95 kW

CSA:
200/240 V, 1-PH, 39/32 A
480 V, 3-PH, 9.4 A

CE:
230 V, 1-PH, 33 A
400 V, 3-PH, 10 A

Output current

10 - 45 A

Rated output voltage

145 VDC

Duty cycle @ 40°C (104°F)

CSA:
50% @ 45 A, 200 – 240 V, 1-PH
60% @ 41 A, 200 – 240 V, 1-PH
100% @ 32 A, 200 – 240 V, 1-PH
50% @ 45 A, 480 V, 3-PH
60% @ 41 A, 480 V, 3-PH
100% @ 32 A, 480 V, 3-PH

CE/CCC:
50% @ 45 A, 230 V, 1-PH
60% @ 41 A, 230 V, 1-PH
100% @ 32 A, 230 V, 1-PH
50 % @ 45 A, 400 V, 3-PH
60% @ 41 A, 400 V, 3-PH
100% @32 A, 400 V, 3-PH

Open circuit voltage (OCV)

275 VDC (200-240 V, CSA/CE/CCC and 480 V, CSA)
265 VDC (400 V CE/CCC)

Dimensions with handles

442 mm (17.4") D; 173 mm (6.75") W;
357 mm (14.1") H

Weight with 6.1 m (20') torch

CSA: 14 kg (31 lbs)

CE: 15 kg (33 lbs)

Gas Supply

Cutting: air (clean, dry and oil-free), nitrogen, F5
Gouging: air (clean, dry and oil-free), nitrogen, F5
Marking: air (clean, dry and oil-free), argon

Recommended gas inlet
flow rate / pressure

188 l/min (400 scfh; 6 scfm) @ 90 psi (5.9 bar)

Input power cable length

3 m (10')

Power supply type

Inverter - IGBT

Engine drive requirement

Electrical efficiency

Recyclability

Certifications

Warranty

Power supply: 3-year
Torch: 1-year
