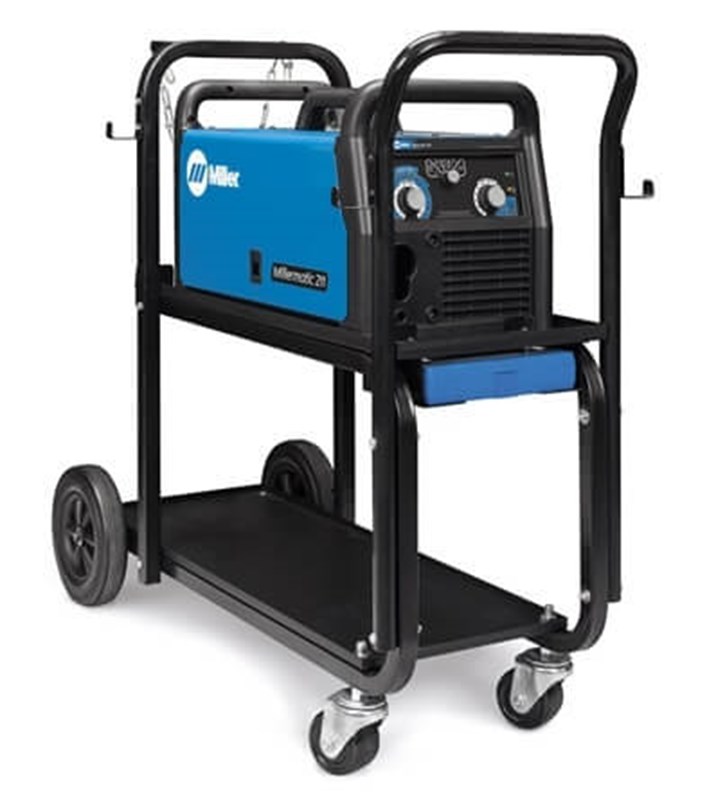

VideoMillermatic 211 Auto-Set MIG Welder #951603 (110/220 Volt)
Miller routinely updates their product line to increase performance, comfort and safety. The Millermatic 211 has received a number of updates to make it better than ever. In addition to welding material from 24-gauge to 3/8" thick in just a single pass, the Millermatic 211 offers several advantages over previous models.
Features of the Millermatic 211
- It’s more convenient: The newest 211 model features Advanced Auto-Set, which allows you to select from five different wire and gas combinations and .024, .030, and .035 inch wires.
- It’s more portable: The new 211 model has a 50% weight reduction from 74lbs to 38lbs with a 3-inch reduction in height from the previous model. Its lightweight design and new triple-handle design
makes this Millermatic 211 easier to transport. - It’s easier to use: The Miller's Quick Select Drive Roll makes for a speedy setup by offering three grooves--two for different size solid wire and third for flux-cored wire. Plus it has a redesigned angled wire drive with an updated motor for smoother wire feeding and better welds while supporting longer torch options.
- It’s smarter: This new model allows you to plug in a Miller Spoolmate 100 or Spoolmate 150 gun and the machine will automatically detect and configure itself for the appropriate spool gun.
- It's more consistent: An angled cast-aluminum drive system with calibrated tension knob makes for consistent feeding and easy setup for up to 15-foot MIG guns.
- It's smoother: Miller's Smooth-Start technology enables a smooth, spatter-free start.
- It's simpler: Miller's Multi-voltage plug (MVP) lets you connect to common 120 or 240 V power receptacles without any tools. Just choose the plug that fits the receptacle and connect to the power cord.
PROCESSES:
- MIG (GMAW)
- Flux Cored (FCAW)

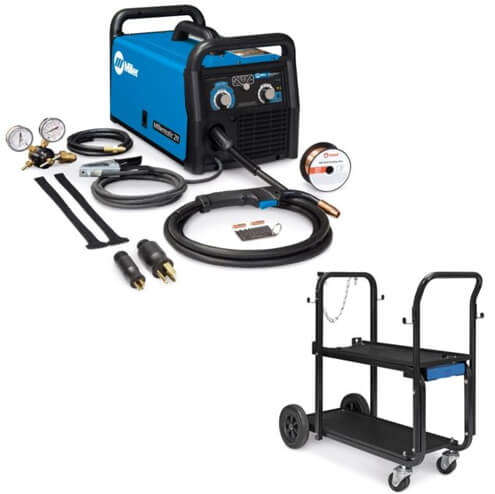

WHAT'S INCLUDED:
- Millermatic 211
- 6.5 ft (2 m) power cord and MVP™ adapter plugs for 120V and 240V
- 10 ft (3 m) MDX™-100 MIG gun
- 10 ft (3 m) work cable and clamp
- Argon and AR/CO2 mix regulator/flow gauge with hose
- Spool of Hobart® .030 in (0.8 mm) solid wire
- Two contact tips for .030 in (0.8 mm) wire
- Quick Select™ drive roll for .024 in (0.6 mm) or .030/.035 in (0.8/0.9 mm) solid wire, and .030/.035 (0.8/0.9 mm) flux-cored wire
- Material thickness gauge #229895
- Hook-and-loop cord wraps
- Running gear/cylinder rack
Check out all the MIG, TIG, Stick and Gas welders available online at Welders Supply Company.
Free Shipping to the Lower 48 States!
Welders Supply has the best prices on MIG welders, and we offer free shipping within the continental US on all orders over $300.
Don't forget these accessories with your new Millermatic 211!
Other Versions:
- 907614 110/220 Volt Mig Welder (Formerly 907422)
Millermatic 211 Specifications |
|
| Current Type | DC |
| Input Power | 240 V, 25 A, 60 Hz, 1-Phase 120 V, 20 A, 60 Hz, 1-Phase |
| Rated Output | 120 V: 115 A at 19.8 VDC, 20% duty cycle 240 V:150 A at 21.5 VDC, 40% duty cycle |
| Amperage Range | 30 A - 230 A |
| Max Open Circuit Voltage | 54 VDC |
| Net Height | 12.5 in |
| Net Length | 20.5 in |
| Net Width | 11.25 in |
| Net Weight | 38 lbs |
| Portability | Handle(s) Running Gear / Cart (Standard) |
| Industries Interests | DIY / Home Hobbyist Farm and Ranch Metal Art / Sculptures Auto / Cycle (Racing, Customizing, Restoring) |
| Weldable Metals | Mild Steel Stainless Steel Aluminum |
| Material Thickness | Mild Steel 24 ga - 0.375 in Aluminum 18 ga - 0.375 in |
| Wire Feed Speed | 1.5 m/min - 15.2 m/min 60 IPM - 600 IPM |
| Wire Diameter | Solid Steel 0.024 in—0.035 in Stainless 0.024 in—0.035 in Flux Cored 0.03 in—0.045 in Solid Steel 0.6 mm—0.9 mm Stainless 0.6 mm—0.9 mm Flux Cored 0.8 mm—1.2 mm |
| Spool Size | 8 in (203 mm) |
| Warranty | Miller's True Blue Warranty |
SHIPPING DIMENSIONS |
|
| Height: | 18.00 Inches |
| Width: | 22.00 Inches |
| Length: | 38.00 Inches |
| Weight: | 85 Lb(s) 0 Oz |
Accessories
Consumables
Product Questions and Answers
Q - Can the Millermatic 211 Auto-Set/Small Cart 110/220 Volt Mig Welder be used to MIG weld aluminum?
A - The Millermatic 211 Auto-Set/Small Cart 110/220 Volt MIG Welder can weld aluminum if used with Miller Spoolmate 100 MIG Spoolgun #300371 or Miller Spoolmate 150 Spoolgun. #301272.
Q - Will the cart on the Millermatic 211 Auto-Set/Small Cart 110/220 Volt MIG Welder hold a gas tank?
A - The Millermatic 211 Auto-Set/Small Cart 110/220 Volt MIG Welder will hold a gas tank up to 7" in diameter and 75lbs.
Q - What size spools does the Millermatic 211 take?
A - The Millermatic 211 can hold 10 or 11lb spools depending on the thickness of the wire. It can hold 4-8" spools.
Q - What size rolls can be used with the Millermatic 211?
A - The Millermatic 211 takes .024-.035 solid/stainless steel roll sizes. For flux core .030-.045 should be used.
Q - Can you stick weld with the Millermatic 211?
A - The Millermatic 211is not designed to stick weld.
Q - Can you TIG weld with the Millermatic 211?
A - No. The Millermatic 211 is capable of MIG and flux-cored welding processes.
Q - What max thickness is it rated for?
A - Millermatic 211 welds material from 24-gauge to 3/8” thick in a single pass.
