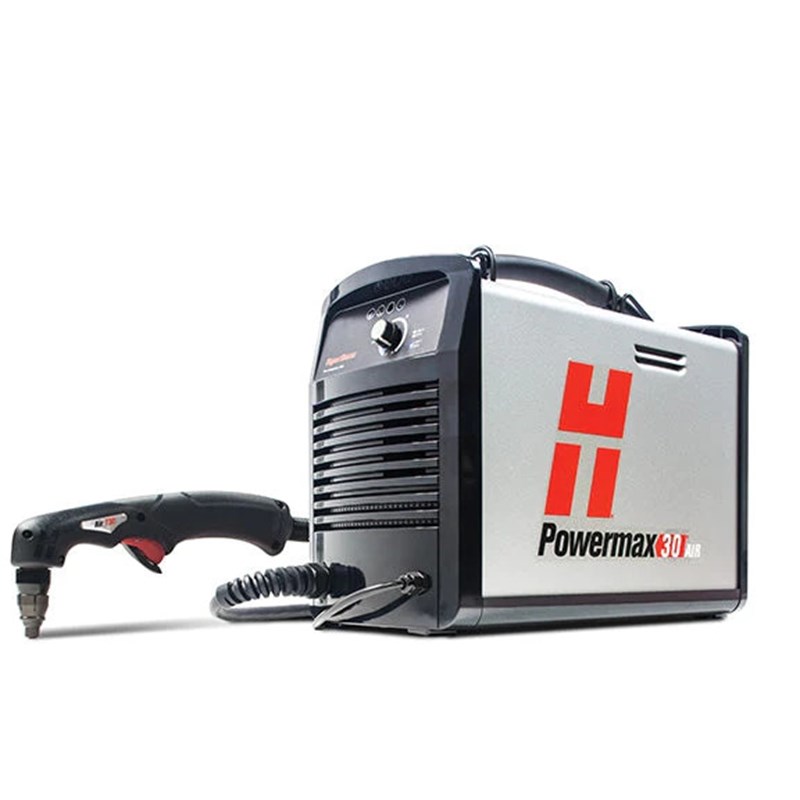

Hypertherm Powermax 30 Air Plasma Cutter #088097 with Built-in Compressor
Forget about buying air- just plug in the Hypertherm Powermax and start cutting!
The Powermax 30 AIR is an advanced plasma arc cutting system with an integrated air compressor for cutting conductive metals including mild steel, stainless steel and aluminum up to 3/8 inches (10 mm) thick and pierce thicknesses up to 1/4 inch (6 mm).
How do Mechanized Plasma Torches Work?
Mechanized plasma torches generate thermal plasma by harnessing direct current (DC) discharge. Thermal plasma can also be generated using alternating current (AC) or radiofrequency.
Why Buy the Hypertherm Powermax 30 Air?
As the lightest and smallest system in its class, the ergonomic Hypertherm Powermax 30 Air lets you enjoy all the power you know and love form Hypertherm with portable convenience at your fingertips. 120 and 240 V plugs and an internal air compressor give you the freedom to take your Powermax just about anywhere.
Register your Hypertherm Powermax 30 Air to make sure you don't miss out on the confidence, quality and support of a Hypertherm warranty.
Benefits of the Powermax 30 AIR:
Portable operation
- Internal air compressor lets you operate anywhere—maximum portability and ease of use
- Plugs into either a 120-volt or 240-volt outlet with the included plug adapters
- Lightweight, ergonomic hand torch reduces cramping and soreness
- Adding to its portability, it’s the lightest and smallest system in its class
Faster, more versatile
- High efficiency: fast cutting speeds and amazing cut quality reduces secondary operations
- Continuous pilot arc feature lets you quickly and easily cut rusted metal or metal grate without retriggering
- One tool for a variety of cutting functions - large range of metal thicknesses and types
Reliable, robust, and cost-effective
- Internal air compressor eliminates the unnecessary costs of external air compressors
- Rugged design withstands the elements
- High performance from Hypertherm, a trusted brand
What's Included:
The Hypertherm Powermax 30 Air comes with everything you need to get started. A complete set of consumables are pre-installed on the AIR T30 torch, including:
- Electrode (#420132)
- Swirl ring (#420133)
- Nozzle (#420134)
- Retaining cap (#420135)
- Deflector (#420399)
- Extra nozzle (#420134)
- Extra electrode (#420132)
- Carrying strap
- Quick setup card
- Operator’s, safety, and compliance manuals
With a 15-foot lead, the AIR T30 also includes a work clamp (with a 15-foot lead) and a 10-foot power cord, plus adapters for both 120-volt & 240-volt outlets.
Oxy-fuel welding and cutting for CNC efficiency
Oxy-fuel welding and cutting (also referred as oxyacetylene welding, oxy welding, or gas-welding) are processes that use fuel gases to burn pure oxygen to achieve high temperatures—allowing the user to weld and cut metals.
Plasma cutting and welding vs. oxy-fuel welding and cutting
The average cost of using a plasma torch is about 37% cheaper per foot, which, over time can save you a big chunk of change. In regions with high labor rates, such as the US, Canada, Europe, etc., it’s extremely important to achieve the highest efficiency possible to maximize your profit. Due to its ability to obtain a high-capacity and high-speed in fabrication operations, plasma torches are the clear-cut preference over oxy-fuel torches.
Plasma Cutting:
|
Oxy Fuel Cutting:
|
Why choose the Powermax 30 AIR plasma cutter?
Compare the Hypertherm Powermax 30 Air vs. 30 XP
Compare the Hypertherm Powermax 30 Air vs. Thermal Dynamics Cutmaster
Shop other Hypertherm products, or browse Powermax 30 Air consumables and compatible torch.
Hypertherm Powermax 30 Air #088097 Specifications | |
---|---|
Input Voltages | 120-240 V, 1-PH, 50/60 Hz |
Input current @ 2.5 kW | 120-240 V, 1-PH, 29-15 A |
Output current | 15-30 A |
Rated output voltage | 83 VDC |
Duty cycle @ 104°F (40°C) | 35%, 240 V, 20%, 120 V |
Open circuit voltage (OCV) | 256 VDC |
Cuttable metals | Mild steel, stainless steel, aluminum |
Cut capacity | 3/8" (10 mm) |
Input power cable length | 10 ft |
Power supply type | Inverter – insulated-gate bipolar transistor (IGBT) – 13.1’’H x 7.7’’W x 16.5’’D |
Engine drive requirement | 5.5 kW for full 30A output |
Warranty | Power supplies: 3-year warranty; torches: 1-year warranty |
Certifications Accepted in These Countries & Regions | |||
---|---|---|---|
CSA | North America | South America | Asia (except China) |
CE | European Union | EFTA countries | Serbia |
C-Tick | Australia | ||
CU / GOST | Russia | Belarus | Kazakhstan |
UkrSERPO | Ukraine |
* Includes countries or regions where the certification is also accepted
SHIPPING DIMENSIONS |
|
Height: | 13.10 Inches |
Width: | 7.70 Inches |
Length: | 16.50 Inches |
Weight: | 29 Lb(s) 13 Oz |
- Hypertherm Powermax 30 Air #088097 Operators Manual/Guide
- Hypertherm Powermax 30 Air #088097 Brochure
- Error Codes and Troubleshooting for the Powermax 30 Air Plasma Cutter
