VideoMultimatic™ 200 with TIG Kit #951649
The only all-in-one, portable, multiprocess power source from Miller is one of the most versatile and compact machines made. Weighing only 29 pounds (13.2 kg) and running on either 120 or 230 V, the Multimatic 200 can go anywhere.
Miller's Auto-Set™ Elite - Auto-Set Elite can be used on multiple materials and multiple processes to fine-tune your settings. Simple to set up and use!
Excellent arc characteristics - Multimatic 200 offers positive arc starts and an extremely stable arc with minimal spatter on both mixed gases and straight CO2.
Simple Aluminum Solution - Miller Spoolmate 100 direct-connect spool gun offers a reliable and economical solution for welding aluminum up to 1/4 inch with 4043 aluminum wire.
Fan-On-Demand - Miller's Fan-On-Demand technology operates only when needed to reduce noise, power consumption and the amount of airborne contaminants pulled through the machine.
Ultimate Durability - The Multimatic 200's impact-resistant case protects the internal components and welding wire.
Plugs in Anywhere - Multi-voltage plug (MVP™) allows you to connect to common 120 or 230 V power receptacles without the use of any tools—just choose the plug that fits the receptacle and connect it to the power cord.
TIG Contractor Kit - The Multimatic 200 TIG Contractor Kit gives you everything you need for remote TIG welding with the Multimatic 200.
Miller's Auto-Line Technology - Provides state-of-the-art flexibility, automatically connecting to 115 or 230 VAC, single-phase power without removing the cover to re-link the power source. See how it works.

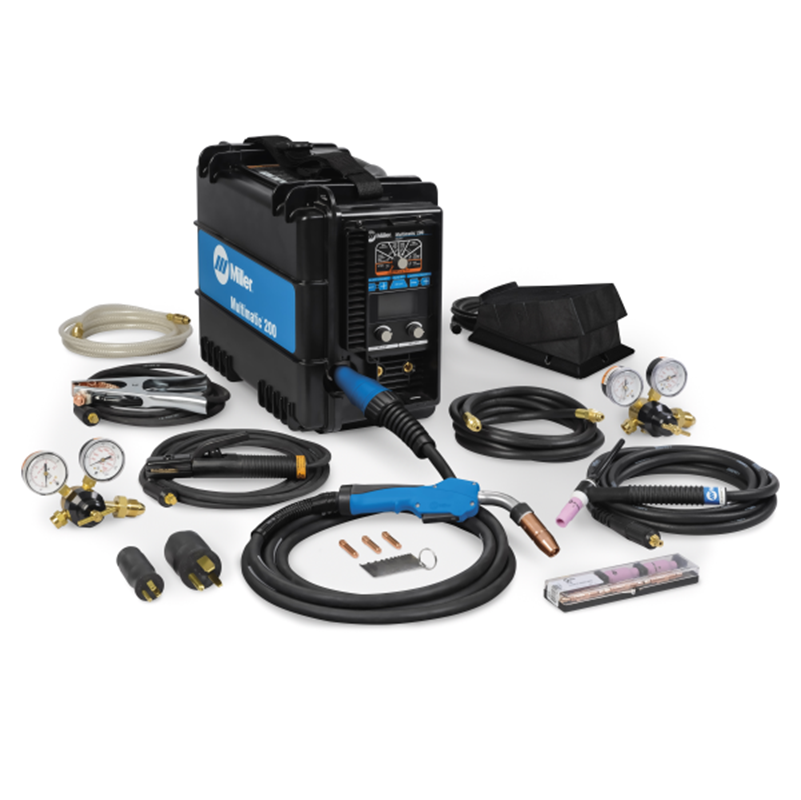

Comes Complete With:
- Power source
- Power cord and MVP plugs for 120 and 230 V
- 10-ft. (3 m) Bernard® Q150 MIG gun
- 13-ft. (4 m) lead with electrode holder and 25-mm Dinse connector
- 10-ft. (3 m) work lead with clamp and 25-mm Dinse connector
- Two contact tips for .030-in. (0.8 mm) wire, two contact tips for .035-in. (0.9 mm) wire
- Dual-groove quick-change drive rolls for .024-in. (0.6 mm) or .030/.035-in. (0.8/0.9 mm) wire
- Argon and AR/CO2 mix regulator/flow gauge w/12-ft. (3.7 m) hose
- Setup and operation DVD
- Information/settings chart and quick setup guide
- Material Thickness Gauge #229895

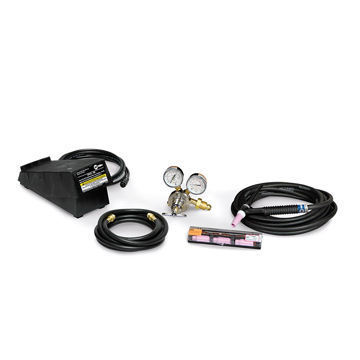

Multimatic TIG Kit includes:
- Weldcraft 150-amp WP17 TIG torch w/25-mm Dinse connector
- RFCS-6M foot control
- AK2C torch accessory kit
- Regulator
- Gas Hose
- Protective carrying case
Processes:
- MIG (GMAW)
- TIG (GTAW)
- DC TIG (DC GTAW)
- Stick (SMAW)
- Flux Cored (FCAW)
Applications:
- Aluminum Welding
- Farm and Ranch
- Field Maintenance and Repair
- Home/Hobby
- In-Plant Maintenance and Repair
- Mechanical Contracting
- Motorsports (car, truck, bike, etc.)
- Rental
- Schools/Training
For the best prices on Miller welding machines, multi-process welders, and welding machine accessories, shop Welders Supply online.
Other Miller Multimatic 200 Options:
Multimatic™ 200 PKG W/WP17 TIG KIT (Formerly 951586) Specs | |
|---|---|
| Industries & Interests |
Auto Repair DIY / Home Hobbyist Farm and Ranch Metal Art / Sculptures Manufacturing Racing / Customizing / Restoring |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Input Voltage | 110/115/120 V 220/230/240 V |
| Input Phase | 1-phase |
| Input Hz | 50 / 60 Hz |
| Current Type | DC |
| Max Open Circuit Voltage | 90 VDC |
| Wire Feed Speed | 1.8 m/min - 10.8 m/min 70 IPM - 425 IPM |
| Width | 9.75 in |
| Height | 14.5 in |
| Length | 17 in |
| Weight | 29 lbs |
| Portability | Handle |
| Warranty | Miller's True Blue Warranty |
SHIPPING DIMENSIONS |
|
| Height: | 12.00 Inches |
| Width: | 25.00 Inches |
| Length: | 29.00 Inches |
| Weight: | 66 Lb(s) 0 Oz |
Accessories
Consumables
Product Questions and Answers
How to calibrate Spoolmate 100 or Spoolmate 150:
-
Connect Spoolmate.
Connect Spoolmate to unit. Cut wire flush at nozzle.
-
Section 6-3.
Follow instructions in Section 6-3 to enter the setup menu.
-
Press Material Thickness Plus (+).
Press Material Thickness Plus button twice after entering setup to enter the Spoolmate Calibration menu.
-
Spoolmate callibration 24 in. runout test.
Turn left Adjustment knob and verify that a check mark appears next to 100 IPM. Be sure that wire is cut flush at nozzle, then trigger Spoolmate.
-
Cut wire flush.
Spoomate will feed approximately 24 in of wire through gun. Cut wire flush at nozzle and measure run-out.
-
If wire is not 24 in.
If wire is not 24 inches long, use left Adjustment knob to increase or decrease the length of the run-out and repeat the test.
-
Save settings.
Cycle through menu items using the Material Thickness Plus (+) button or cycle unit power to save settings and exit menu.
