Hypertherm Powermax 45 XP #088114
Hypertherm Powermax 45 XP #088114 Hypertherm Powermax 45 XP #088114 Hand Torch available online at Welders Supply Consumable Kit for the Hypertherm Powermax45 XP #088114 Hypertherm Powermax 45 XP #088114 Hypertherm Powermax 45 XP #088114 - 50 Hypertherm Powermax 45 XP #088114 - Torch Hypertherm Powermax 45 XP #088114

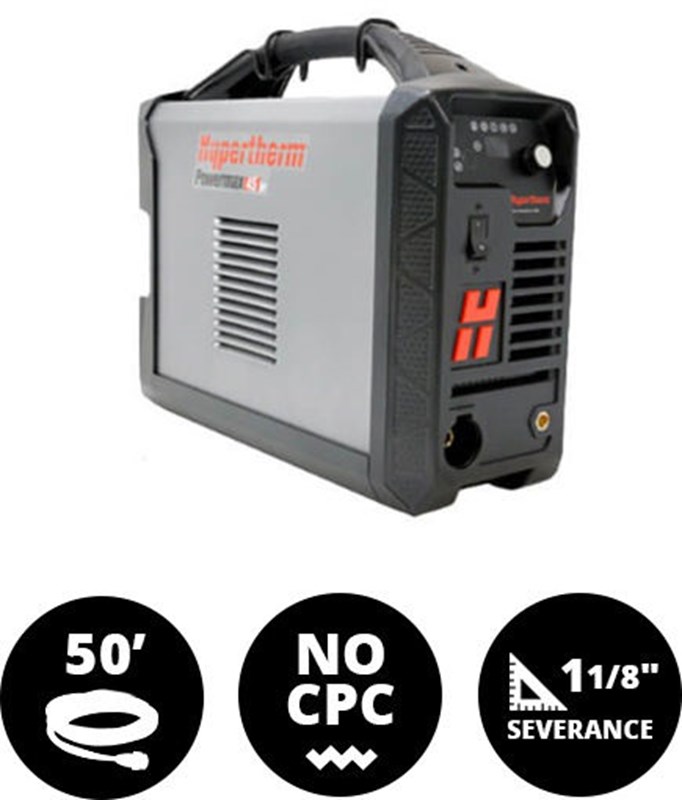

Hypertherm Powermax 45 XP #088114 Hand System w/o CPC - 50' Leads

Part Numbers: 088114
$2,550.00

Buy it as a bundle and SAVE:

Select your Bundle!

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

Power supply:

220V Single Phase

220V Single Phase

Cut capacity:

1/2" Capacity

1/2" Capacity

  • 1/2" Cut
  • 50' Leads
  • 460V
  • Torch Included

Which Hypertherm Powermax 45XP is right for me?

Hypertherm Powermax 45 XP #088114 Mechanized Hand System w/o CPC - 50' Leads

Hypertherm Powermax 45 XP Student RebateHypertherm Powermax 45 XP Trade Ins

Our Most Popular Portable Plasma Cutter …Improved!

The Powermax 45 XP, the successor to the wildly popular Powermax 45, packs a serious punch in a compact package. With increased cut capacity over its predecessor, faster cut speeds and unbelievable ease of use, the Powermax 45 XP sets new standards for portable plasma cutters. Capable of slicing through 5/8” thick steel, as well as gouging and marking, the Powermax 45 XP is the perfect all-around machine for both professional and hobbyist use.

Powermax 45 XP (#088114) At A Glance

  • 5/8” (16mm) rated cutting capability (mild steel, stainless steel, aluminum)

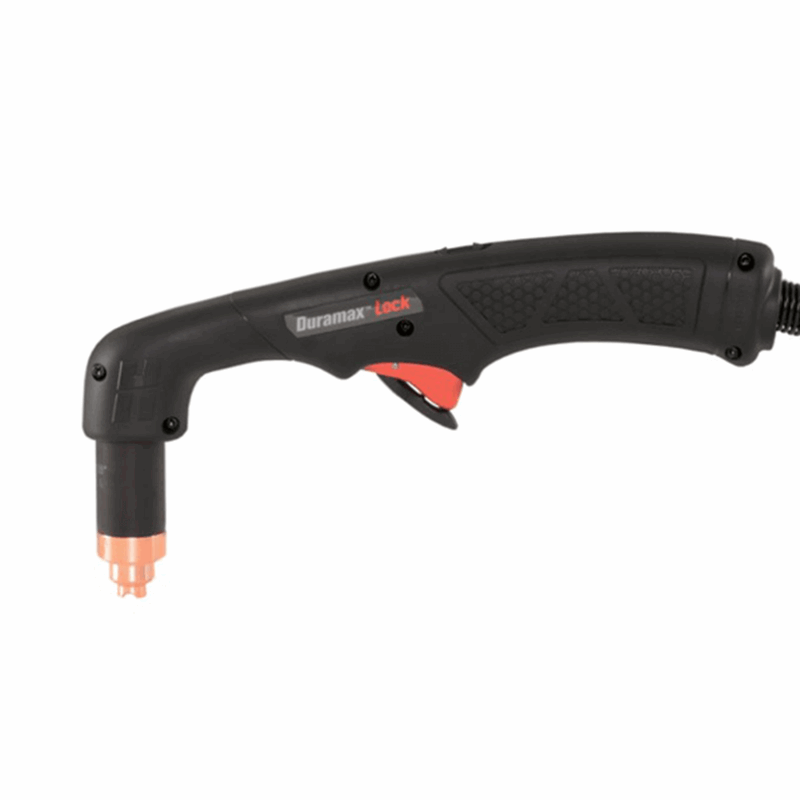

  • Duramax® Lock torch with disable switch for fast and easy replacement of consumables.
  • CNC interface and FastConnect™ torch connection
  • Smart Sense™ automatically monitors and adjusts air pressure for maximum performance
  • Patented drag-cutting technology for ease of use
  • Consumables available for fine feature cutting, extended reach cutting, gouging, precision gouging, marking

Mechanized for Maximum Versatility and Productivity

With a CNC interface and FastConnect™ torch connection, the Powermax 45 XP can be used in either a handheld or mechanized torch configuration. Plus, Hypertherm offers a wide range of torches for both types of operation, as well as specialty consumables for cutting, gouging and marking. Cut speeds are 1.5 times faster than oxyfuel on ¼” mild steel, and the quality of the cuts and gouges are so good you’ll spend less time grinding and prepping edges.

Included With This Package (#088114):

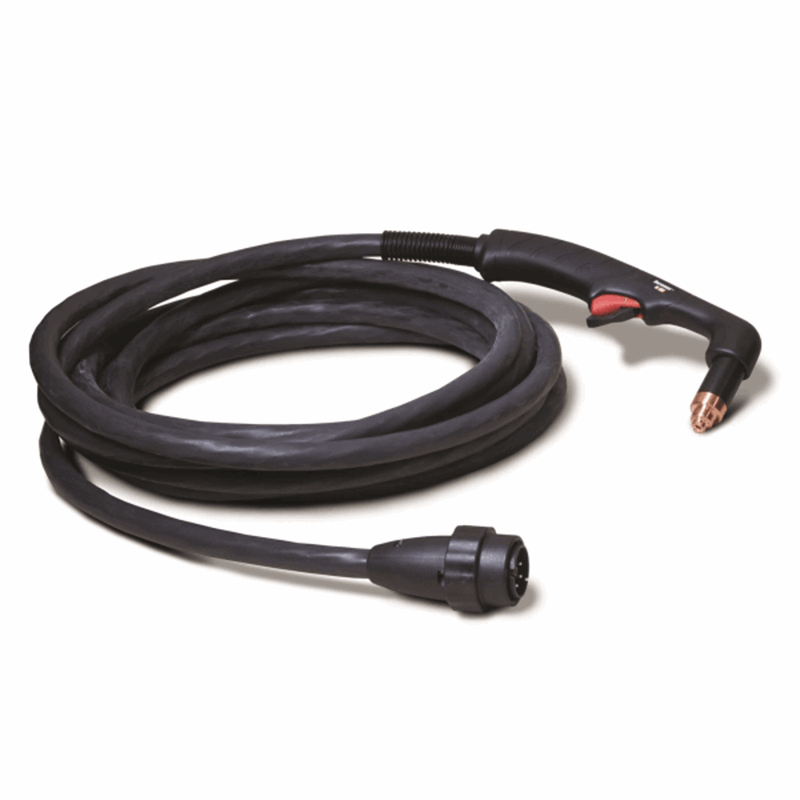

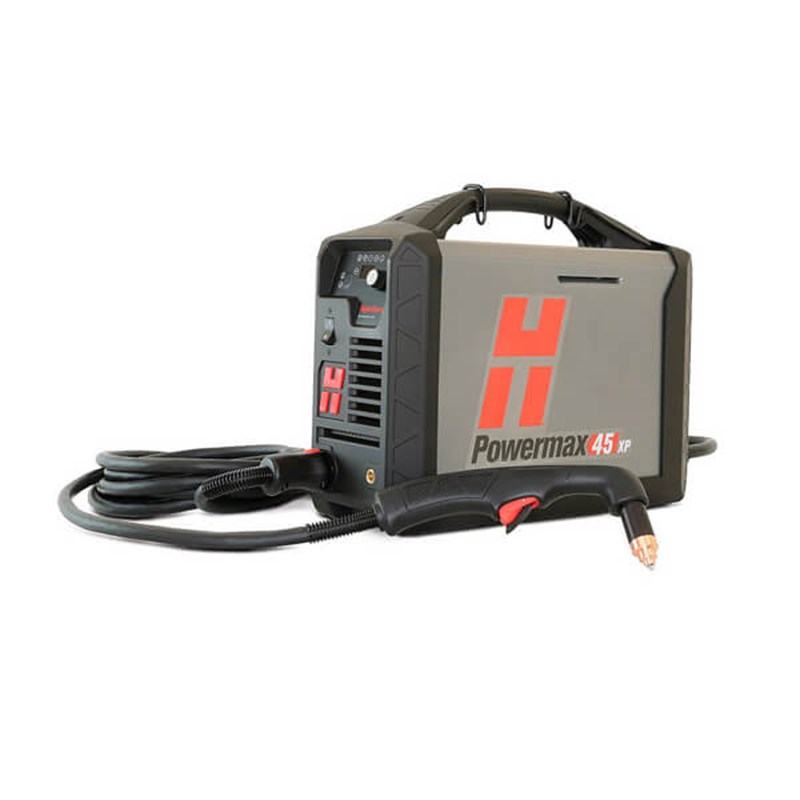

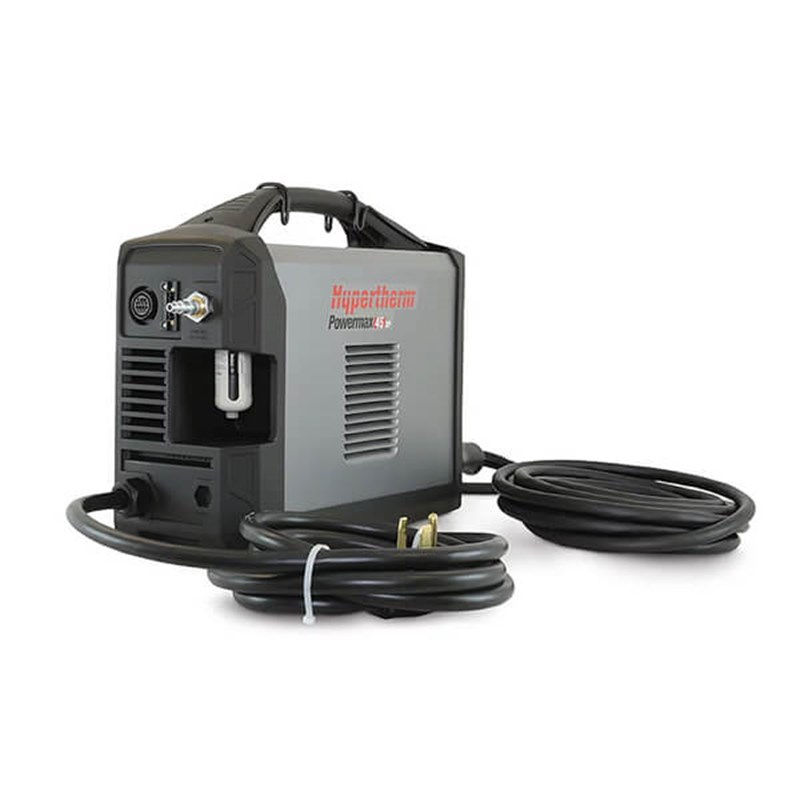

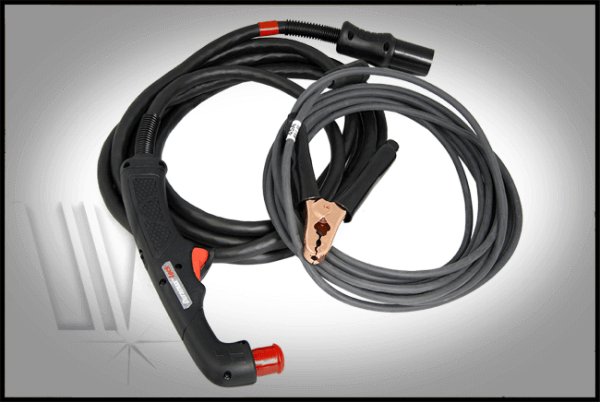

Powermax 45 XP plasma cutter, Duramax®Lock Torch, assembly and 50' ground lead with clamp. All components in this package are fully backed by Hypertherm’s 3-year warranty (Powermax) and 1-year coverage on torch and lead.

HYPERTHERM Powermax 45 CONSUMABLES AND KITS

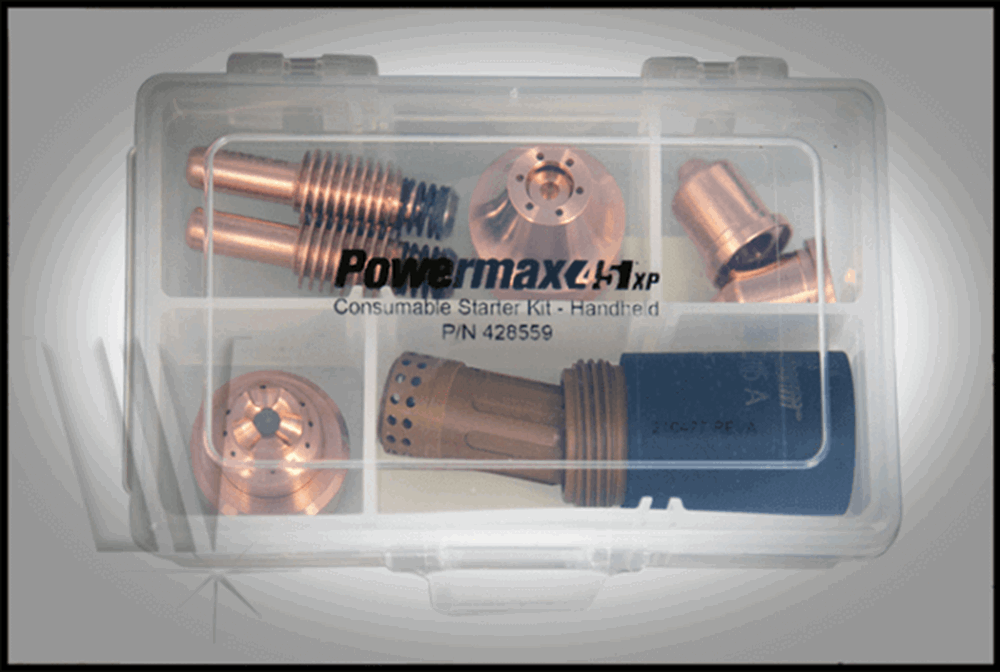

Stock up on consumables with the Powermax 45 handheld CSA consumable kit or Powermax 45 XP essential handheld consumables kit.

Warranty information for Hypertherm products

Register your Hypertherm product on the Hypertherm website

Torches compatible with the Powermax 45 XP:

View more Hypertherm Powermax Plasma cuttersView all Hypertherm Powermax Plasma Cutter Torches

Additional Error Codes and Troubleshooting for the Powermax 45 XP

Shop for Hypertherm products, Hypertherm accessories, and safety apparel at Welders Supply.

Hypertherm Powermax 45 XP #088114 Specifications

Output current

10 - 45 A

Rated output voltage

145 VDC

Open circuit voltage (OCV)

275 VDC (200-240 V, CSA/CE/CCC and 480 V, CSA), 265 VDC (400 V CE/CCC)

Dimensions with handles 442 mm (17.4") D; 173 mm (6.75") W; 357 mm (14.1") H
Gas Supply

Cutting & Gouging: air (clean, dry and oil-free), nitrogen, F5

Marking: air (clean, dry and oil-free), argon

Recommended gas inlet flow rate / pressure 188 l/min (400 scfh; 6 scfm) @ 90 psi (5.9 bar)
Input power cable length 3 m (10')
Power supply type Inverter - IGBT
Cuttable metals

Aluminum, Mild Steel, Stainless Steel

Cut Capacity 1/2"
Engine drive requirement 12.5 kVA (10kW) for full 45 A output
Electrical efficiency 88%
Recyclability 100%
Warranty Power supply: 3-year   Torch: 1-year
Certifications CSA certified for use in Americas and Asia, except  China. CCC for use in China. CE, REM, GOST-TR, ukrSEPRO, and Serbian AAA for use in Europe, Austrailia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted

Hypertherm Powermax 45 XP CSA / CE / CCC Certifications

Input voltages (± 10%)

CSA

200 – 240 V, 1-PH, 50-60 Hz

480 V, 3-PH, 50-60 Hz

CE/CCC

230 V, 1-PH, 50-60 Hz

400 V, 3-PH, 50-60 Hz

Input Current @ 5.95 kW

CSA

200/240 V, 1-PH, 39/32 A

480 V, 3-PH, 9.4 A

CE

230 V, 1-PH, 33 A

400 V, 3-PH, 10 A

Duty cycle @ 40°C (104°F)

CSA

50% @ 45 A, 200 – 240 V, 1-PH

60% @ 41 A, 200 – 240 V, 1-PH

100% @ 32 A, 200 – 240 V, 1-PH

50% @ 45 A, 480 V, 3-PH

60% @ 41 A, 480 V, 3-PH

100% @ 32 A, 480 V, 3-PH

CE/CCC

50% @ 45 A, 230 V, 1-PH

60% @ 41 A, 230 V, 1-PH

100% @ 32 A, 230 V, 1-PH

50 % @ 45 A, 400 V, 3-PH

60% @ 41 A, 400 V, 3-PH

100% @32 A, 400 V, 3-PH

Weight with 6.1 m (20') torch

CSA

14 kg (31 lbs)

CE

15 kg (33 lbs)

Product Questions and Answers


Q - Does this have an air compressor? A - No, you'll need to connect to an air compressor.
Q - Can this be used with a plasma table? A - Not this package. You need one that comes with the CPC.
Q - Can this be used for mechanized cutting? A - Not this package. You need one that comes with the CPC.
Q - Can a CPC be added later? A - Yes.

Have a question about this product? Submit your question using the form below

Related Products

Extend 3 crucial inches with the duramax cutting starter pack#428445
HyAccess Duramax Cutting Starter Pack
$88.30
$106.00
Hypertherm Air Filtration Kit #128647
Hypertherm Air Filtration Kit
$228.70
$247.00
Hypertherm Plasma Cutter Circle Cutting Guide Basic Package #127102
Hypertherm Circle Cutting Guide Basic Package
$131.20
$144.00
Hypertherm Deflector Handheld FineCut #220931
Hypertherm Deflector, Handheld FineCut #220931
$12.30
$14.20
Close Up of Hypertherm Deluxe Circle Cutting Kit #027668
Hypertherm Deluxe Circle Cutting Kit
$212.20
$239.00
Hypertherm Dual Face Shield Helmet #127239
Hypertherm Dual Face Shield Helmet, Shade 6 (for <60A)
$62.30
$64.00
HyAccess gouging starter pack #420412
Hypertherm Extended Gouging Nozzle
$32.90
$39.75
Hypertherm FineCut Nozzle #220930 (pack of 5) Powermax45 XP
Hypertherm FineCut Nozzle #220930 (pack of 5)
$35.40
$41.50
Hypertherm FineCut Swirl Ring #220947
Hypertherm FineCut Swirl Ring #220947
$20.10
$24.00
Low priced Hypertherm HyAcess Consumable Kit Shop online at Welder Supply
Hypertherm HyAccess Consumable Kit
$152.30
$188.00
Hypertherm HyAccess Cutting Nozzle - #420410
Hypertherm HyAccess Cutting Nozzle
$32.90
$39.75
HyAccess Starter Pack Part#428446
Hypertherm HyAccess Duramax Gouging Starter Pack
$88.30
$106.00
Hypertherm Electrode for Handheld Plasma Torches
Hypertherm HyAccess Electrode
$22.95
$27.25
HyAccess Retaining Cap Part #420413
Hypertherm HyAccess Retaining Cap
$49.00
$49.00
Hypertherm Leather Cutting Gloves #127169
Hypertherm Leather Cutting Gloves
$23.70
$23.70
Get Hypertherm Leather Torch Lead Cover with Velcro Closure
Hypertherm Leather Torch Lead Cover with Velcro Closure 25 FT
$118.95
$135.00
Hypertherm Operator Face Shield Shade 8 #127103
Hypertherm Operator Face Shield Shade 8
$62.30
$64.00

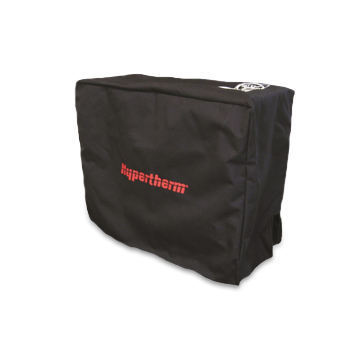

Hypertherm Powermax 45 Cover #127219
