Which Hypertherm Powermax 45XP Machine is right for me?

&nbsp Hypertherm Powermax 45 XP 088112 Hypertherm Powermax 45 XP 088114 Hypertherm Powermax 45 XP 088113 Hypertherm Powermax 45 XP 088124 Hypertherm Powermax 45 XP 088015 Hypertherm Powermax 45 XP 088123 Hypertherm Powermax 45 XP 088121 Hypertherm Powermax 45 XP 088016 Hypertherm Powermax 45 XP 088117 Hypertherm Powermax 45 XP 088122 Hypertherm Powermax 45 XP 088118 Hypertherm Powermax 45 XP 088123 CPC port not included but can be installed using the upgrade kit 428653 CPC port not included but can be installed using the upgrade kit 428653 This unit includes a CPC Port This unit includes a CPC Port Includes extra 15 degree torch This unit includes a CPC Port This unit includes a CPC Port Includes both a machine torch and a 75 degree hand torch This unit includes a CPC Port This unit includes a CPC Port Includes on/off remote switch This unit includes a CPC Port Includes on/off remote switch This unit includes a CPC Port This unit includes a CPC Port Includes on/off remote switch This unit includes a CPC Port Includes both a machine torch and a 75 degree hand torch 20’ FastConnect™ Torch 50’ FastConnect™ Torch 20’ FastConnect™ Torch 20’ FastConnect™ Torch 50’ FastConnect™ Torch 25’ FastConnect™ Torch 20’ FastConnect™ Torch 25’ FastConnect™ Torch 35’ FastConnect™ Torch 50’ FastConnect™ Torch 50’ FastConnect™ Torch 25’ FastConnect™ Torch Hypertherm Powermax 45 XP 088112 Hypertherm Powermax 45 XP 088114 Hypertherm Powermax 45 XP 088113 Hypertherm Powermax 45 XP 088124 Hypertherm Powermax 45 XP 088015 Hypertherm Powermax 45 XP 088123 Hypertherm Powermax 45 XP 088121 Hypertherm Powermax 45 XP 088016 Hypertherm Powermax 45 XP 088117 Hypertherm Powermax 45 XP 088122 Hypertherm Powermax 45 XP 088118 Hypertherm Powermax 45 XP 088123 CPC port not included but can be installed using the upgrade kit 428653 CPC port not included but can be installed using the upgrade kit 428653 This unit includes a CPC Port This unit includes a CPC Port Includes extra 15 degree torch This unit includes a CPC Port This unit includes a CPC Port Includes both a machine torch and a 75 degree hand torch This unit includes a CPC Port This unit includes a CPC Port Includes on/off remote switch This unit includes a CPC Port Includes on/off remote switch This unit includes a CPC Port This unit includes a CPC Port Includes on/off remote switch This unit includes a CPC Port Includes both a machine torch and a 75 degree hand torch 20’ FastConnect™ Torch 50’ FastConnect™ Torch 20’ FastConnect™ Torch 20’ FastConnect™ Torch 50’ FastConnect™ Torch 25’ FastConnect™ Torch 20’ FastConnect™ Torch 25’ FastConnect™ Torch 35’ FastConnect™ Torch 50’ FastConnect™ Torch 50’ FastConnect™ Torch 25’ FastConnect™ Torch

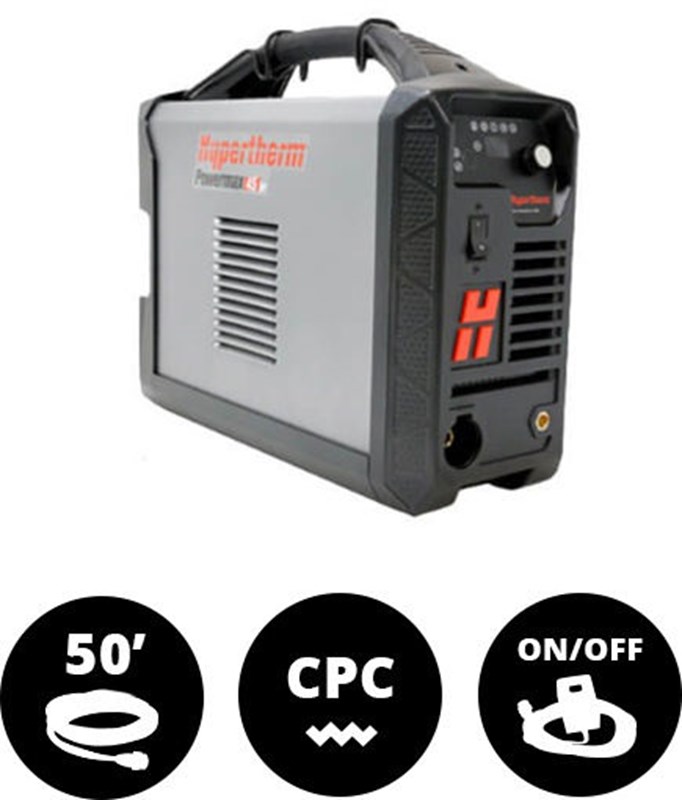

Hypertherm Powermax 45 XP #088118 Machine System CPC 50' w/ Remote On/Off

Powermax 45XP Plasma Cutter—What A Portable CNC Plasma Cutter Should Be

Hypertherm has yet to disappoint us, and the Powermax 45XP is no exception.  Successor to the Powermax 45, our number one selling plasma cutter of all time, the 45XP effortlessly slices through mild steel, stainless steel and aluminum. It’s the perfect tool for gouging, cutting, shaping and marking metals. And with as much as 70% more power than comparably sized units from competitors, it sets a new standard for portable plasma cutters.

Powermax 45 XP at A Glance

  • 5/8” (16mm) rated cutting capability (mild steel, stainless steel, aluminum)
  • Duramax® Lock torch with disable switch for fast and easy replacement of consumables.
  • CNC interface and FastConnect™ torch connection
  • Smart Sense™ automatically monitors and adjusts air pressure for maximum performance
  • Consumables available for fine feature cutting, extended reach cutting, gouging, precision gouging, marking

The new Powermax 45XP improves upon the Powermax 45 in both big and small ways. The end result is a finely-tuned, highly versatile piece of machinery equally suited to both the seasoned pro and the novice or hobbyist. And with more power at your disposal, you’ll work faster and have better results.

What sets the Powermax 45 XP apart from the Powermax 45?

  Powermax 45 Powermax 45 XP
Output current 20-45 10-45
kW output @max power 5.95 6.5
Cut capacity  ½” (12mm) 5/8” (16mm)
Severance 1” (25mm) 1 1/8” (29mm)
Auto gas adjustment no yes
Easily accessed, protected air filter regulator no yes
Number of torch options 2 11
Consumables styles 4  7
Machine interface options standard CPC port Optional CPC port with 5 position selectable voltage divider card or serial port via RS-485 communication
F5 gas operation no yes
Precision gouging capability no yes

Included With This Machine System Package (#088118):

The Hypertherm Powermax 45XP package 088118 includes the Powermax 45XP CSA Machine System with CPC port, 50 ft. (15.2 m) leads and remote On/Off switch.  All components in this package are fully backed by Hypertherm’s 3-year warranty (Powermax) and 1-year coverage on torch and lead.

HYPERTHERM Powermax 45 CONSUMABLES AND KITS

Stock up on consumables with the Powermax 45 handheld CSA consumable kit or Powermax 45 XP essential handheld consumables kit.

Shop all Plasma Cutters, CNC Plasma Cutters and Plasma Cutting Consumable Parts and Accessories on sale at the lowest price from Welders Supply.

Other versions of the Powermax 45:

View more Hypertherm Powermax Plasma cuttersView all Hypertherm Powermax Plasma Cutters

Input voltages
(± 10%)

CSA

200 – 240 V, 1-PH, 50-60 Hz
480 V, 3-PH, 50-60 Hz

CE/CCC

230 V, 1-PH, 50-60 Hz
400 V, 3-PH, 50-60 Hz

Input Current @ 5.95 kW

CSA

200/240 V, 1-PH, 39/32 A
480 V, 3-PH, 9.4 A

CE

230 V, 1-PH, 33 A
400 V, 3-PH, 10 A

Output current

10 - 45 A

Rated output voltage

145 VDC

Duty cycle @ 40°C (104°F)

CSA

50% @ 45 A, 200 – 240 V, 1-PH
60% @ 41 A, 200 – 240 V, 1-PH
100% @ 32 A, 200 – 240 V, 1-PH
50% @ 45 A, 480 V, 3-PH
60% @ 41 A, 480 V, 3-PH
100% @ 32 A, 480 V, 3-PH

CE/CCC

50% @ 45 A, 230 V, 1-PH
60% @ 41 A, 230 V, 1-PH
100% @ 32 A, 230 V, 1-PH
50 % @ 45 A, 400 V, 3-PH
60% @ 41 A, 400 V, 3-PH
100% @32 A, 400 V, 3-PH

Open circuit voltage (OCV)

275 VDC (200-240 V, CSA/CE/CCC and 480 V, CSA)
265 VDC (400 V CE/CCC)

Dimensions with handles

442 mm (17.4") D; 173 mm (6.75") W;
357 mm (14.1") H

Weight with 6.1 m (20') torch

CSA

14 kg (31 lbs)

CE

15 kg (33 lbs)

Gas Supply

Cutting: air (clean, dry and oil-free), nitrogen, F5
Gouging: air (clean, dry and oil-free), nitrogen, F5
Marking: air (clean, dry and oil-free), argon

Recommended gas inlet
flow rate / pressure

188 l/min (400 scfh; 6 scfm) @ 90 psi (5.9 bar)

Input power cable length

3 m (10')

Power supply type

Inverter - IGBT

Engine drive requirement 12.5 kVA (10kW) for full 45 A output
Electrical efficiency 88%
Recyclability 100%
Certifications CSA certified for use in Americas and Asia, except  China. CCC for use in China. CE, REM, GOST-TR, ukrSEPRO, and Serbian AAA for use in Europe, Austrailia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted
Warranty

Power supply: 3-year
Torch: 1-year

Hypertherm Powermax 45 XP Error Codes and Troubleshooting

Hypertherm Powermax 45 XP Error and Fault Codes

Additional Error Codes and Troubleshooting for the Powermax 45 XP

Cut Chart for Powermax 45 XP

Hypertherm Powermax 45 XP Setup

Hypertherm Powermax 45 XP First Look

Hypertherm Powermax 45 XP Marking & Gouging
