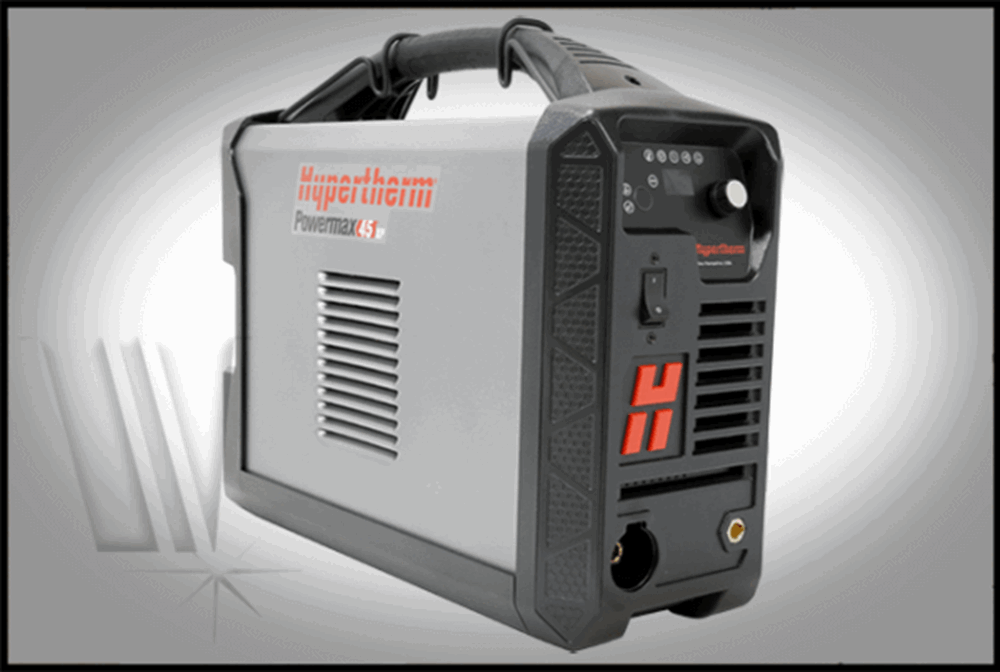

Hypertherm Powermax 45 XP #088115 available online at Welders Supply

Hypertherm Powermasx 45 XP #088115 with CPC port great price with fast FREE Shipping

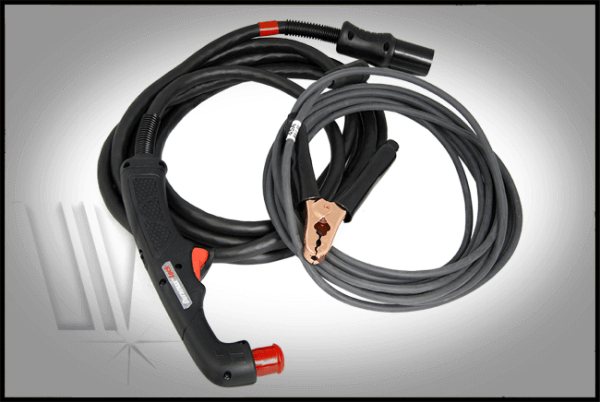

Hypertherm Powermax 45 XP #088115 Hand Torch available online at Welders Supply

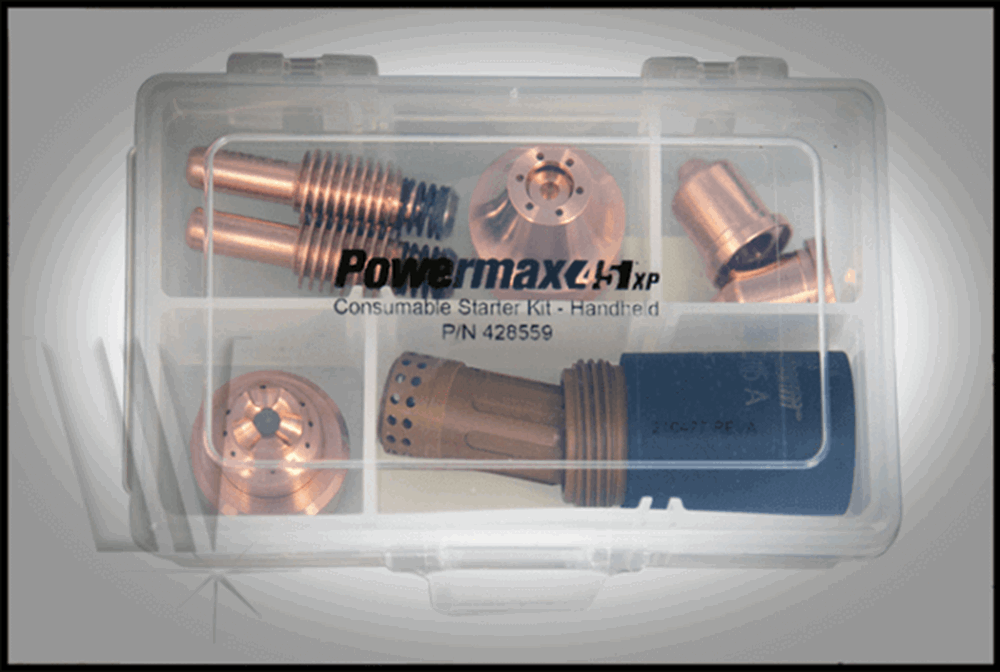

Consumable Kit for the Hypertherm Powermax45 XP #088115

Owner Manual for the Hypertherm Powermax45 XP #088115

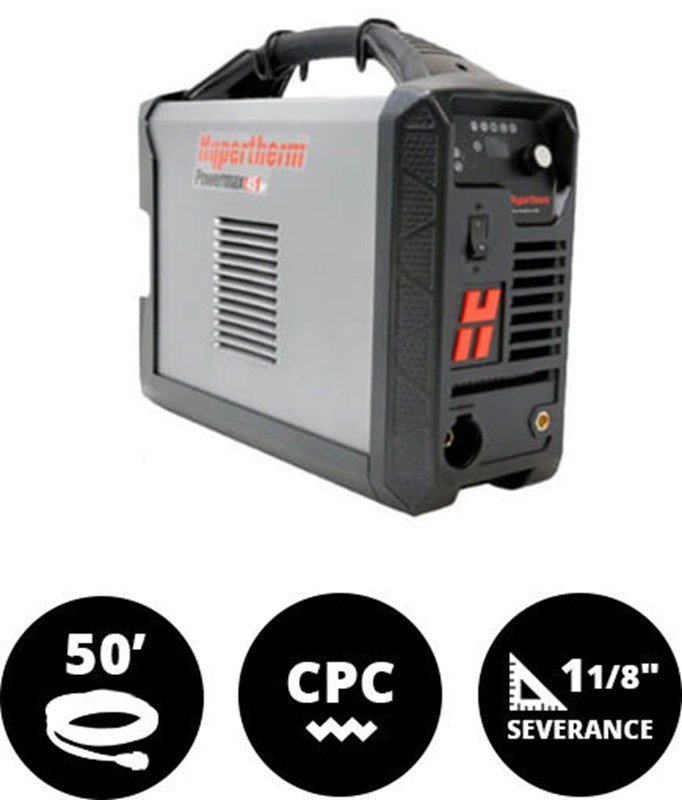

Hypertherm Powermax 45 XP Hand System w/ CPC - 50' Leads (220V CSA) #088115

Part Number: 088115

UPC: 662310367787

This Item Has Been Discontinued and has been replaced by Hypertherm Powermax45 SYNC Plasma Cutter w/ 50' 75° Hand Torch & CPC Port #088563 - Level up today!

Features
Specs
Documents
Videos
Accessories
Consumables
FAQS

Lightweight and Portable
75° DuraMax™ Lock Torch
50' Leads (15.2m)
CPC Port
3-Year Power Warranty
First Time Student Rebate

Hypertherm Powermax45 XP #088115 Hand System w/ CPC - 50' Leads

Powermax45 XP Plasma Cutting System #88115

The Hypertherm Powermax 45XP plasma cutter is the successor to the top-selling Powermax welder ever, the Powermax 45. The NEW 45 XP is loaded up with all the essential features serious experienced welders need, now with 11 torch options. Get better cut capacity and new levels of gouging and marking with the Powermax45 XP and watch your portable plasma cutter performance soar to new heights.

New features on the Hypertherm Powermax45 XP include:

Patented drag-cutting technology for ease of use
5/8” (16mm) rated cutting capability (mild steel, stainless steel, aluminum)
Smart Sense™ automatic air pressure adjustment for maximum performance
CNC interface and FastConnect™ torch connection

Included With This Package (#088115):

The Powermax45 XP bundle features the reliable Powermax45 XP power supply, complete with a CPC* port, a 75-degree Duramax hand torch, and a 50 ft. (15.2m) lead. All components included in this package are fully supported by Hypertherm's comprehensive warranty, offering an impressive 3-year coverage for the Powermax and 1-year coverage for the torch and lead.

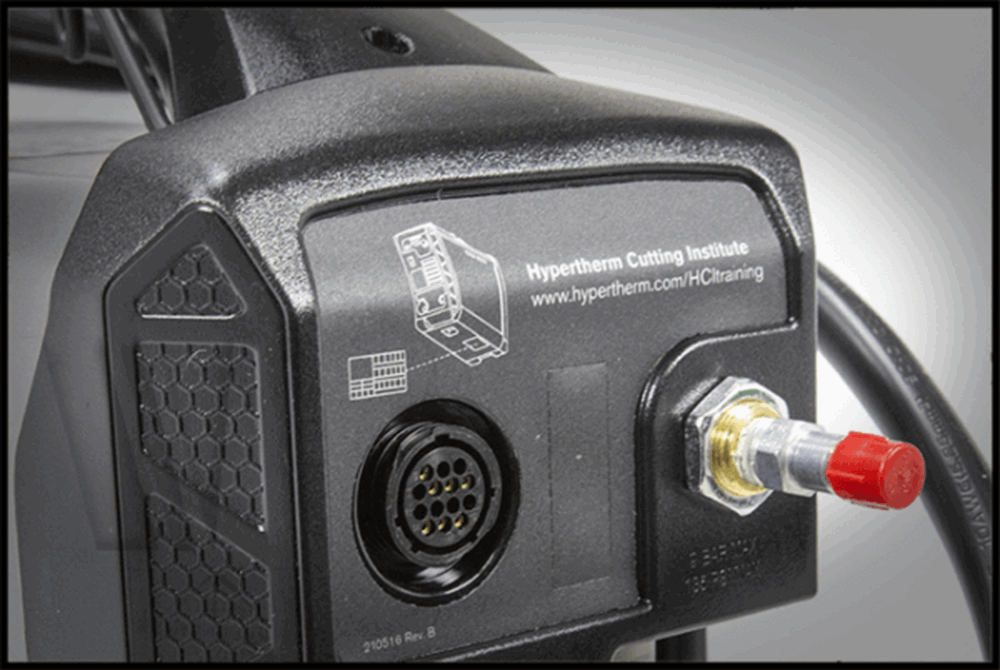

*Note: The CPC port is also known as a "Circular Plastic Connector." It is a standard 14-pin plug for use with machine torches.

HYPERTHERM Powermax 45 CONSUMABLES AND KITS

Stock up on consumables with the Powermax 45 handheld CSA consumable kit or Powermax 45 XP essential handheld consumables kit.

Warranty information for Hypertherm products

Torches compatible with the Powermax 45 XP:

View all Hypertherm Powermax Plasma Cutter Torches

Hypertherm Powermax 45 XP Error Codes and Troubleshooting

Additional Error Codes and Troubleshooting for the Powermax 45 XP

Cut Chart for Powermax 45 XP

Shop for Hypertherm products, Hypertherm accessories, and safety apparel at Welders Supply.

All Hypertherm Powermax 45XP Models
	Power Supply Only	Handheld Torch Included	Machine Torch Included
Handheld Only		088126 75° torch, 20' lead (460V) 088112 75° torch, 25' lead (220V) 088114 75° torch, 50' lead (220V) 088128 75° torch, 50' lead (460V)
CPC Port	088104 power supply only (220V) 088110 power supply only (460V)	088113 75° torch, 20' lead (220V) 088127 75° torch, 20' lead (460V) 088116 75° torch, 25' lead (220V) 088115 75° torch, 50' lead (220V) 088129 75° torch, 50' lead (460V) 088124 75° & 180° torch, 20' lead (220V) 088123 75° & 180° torch, 25' lead (220V)	088121 180° torch, 25' lead (220V) 088117 180° torch, 35' lead & remote (220V) 088122 180° torch, 50' lead (220V) 088118 180° torch, 50' lead & remote (220V) 088124 75° & 180° torch, 20' lead (220V) 088123 75 & 180° torch, 25' lead (220V)
CPC & Serial Port	088105 power supply only (220V) 088111 power supply only (460V)		088119 180° torch, 25' lead (220V) 088120 180° torch, 50' lead (220V)

View all Hypertherm Powermax Plasma Cutters

Hypertherm Powermax 45 XP #088115 Specifications
Input voltages (± 10%)	CSA	200 – 240 V, 1-PH, 50-60 Hz 480 V, 3-PH, 50-60 Hz
Input voltages (± 10%)	CE/CCC	230 V, 1-PH, 50-60 Hz 400 V, 3-PH, 50-60 Hz
Input Current @ 5.95 kW	CSA	200/240 V, 1-PH, 39/32 A 480 V, 3-PH, 9.4 A
Input Current @ 5.95 kW	CE	230 V, 1-PH, 33 A 400 V, 3-PH, 10 A
Output current	10 - 45 A
Rated output voltage	145 VDC
Duty cycle @ 40°C (104°F)	CSA	50% @ 45 A, 200 – 240 V, 1-PH 60% @ 41 A, 200 – 240 V, 1-PH 100% @ 32 A, 200 – 240 V, 1-PH 50% @ 45 A, 480 V, 3-PH 60% @ 41 A, 480 V, 3-PH 100% @ 32 A, 480 V, 3-PH
Duty cycle @ 40°C (104°F)	CE/CCC	50% @ 45 A, 230 V, 1-PH 60% @ 41 A, 230 V, 1-PH 100% @ 32 A, 230 V, 1-PH 50 % @ 45 A, 400 V, 3-PH 60% @ 41 A, 400 V, 3-PH 100% @32 A, 400 V, 3-PH
Open circuit voltage (OCV)	275 VDC (200-240 V, CSA/CE/CCC and 480 V, CSA) 265 VDC (400 V CE/CCC)
Dimensions with handles	442 mm (17.4") D; 173 mm (6.75") W; 357 mm (14.1") H
Weight with 6.1 m (20') torch	CSA	14 kg (31 lbs)
Weight with 6.1 m (20') torch	CE	15 kg (33 lbs)
Gas Supply	Cutting: air (clean, dry and oil-free), nitrogen, F5 Gouging: air (clean, dry and oil-free), nitrogen, F5 Marking: air (clean, dry and oil-free), argon
Recommended gas inlet flow rate / pressure	188 l/min (400 scfh; 6 scfm) @ 90 psi (5.9 bar)
Input power cable length	3 m (10')
Power supply type	Inverter - IGBT
Cuttable metals	Aluminum Mild Steel Stainless Steel
Cut capacity	1/2"
Engine drive requirement	12.5 kVA (10kW) for full 45 A output
Electrical efficiency	88%
Recyclability	100%
Certifications	CSA certified for use in Americas and Asia, except China. CCC for use in China. CE, REM, GOST-TR, ukrSEPRO, and Serbian AAA for use in Europe, Austrailia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted
Warranty	Power supply: 3-year Torch: 1-year

SHIPPING DIMENSIONS
Height:	14.10 Inches
Width:	6.80 Inches
Length:	17.40 Inches
Weight:	31 Lb(s) 0 Oz

Hypertherm Powermax 45 XP SetupHypertherm Powermax45: System overview and demonstrationHypertherm Powermax Demo (30, 45, 65, 85, 105)

Accessories

Consumables

Hypertherm Electrode for Powermax 45XP/65/85/105/125 (30-125 A) #220971 (5/pk)

Product Questions and Answers

Q - What dust cover will work with this? A - The dust cover for the Powermax 45 and 45XP is part #127219. It's made from a flame-retardant vinyl

Q - What does it weigh? A - 31 lbs.

Q - What's the warranty on this? A - 3 years on the power supply, one year on the torch.

Q - What torch does this come with? A - A 75-degree Duramax Lock hand torch.

How to install line-disconnect switch:

Use line-disconnect switch for each.
Use a line-disconnect switch for each plasma power supply to allow the operator to turn off the incoming power quickly in an emergency.
Place switch for easy accessibility.
Place the switch so that it is easily accessible to the operator. Installation must be performed by a licensed electrician according to national and local codes.
Interupt level.
The interrupt level of the switch must equal or exceed the continuous rating of the fuses/breakers.
