Miller BIG BLUE 500 PRO (KUBOTA) DELUX 907736008

Part Numbers: 907736008
$47,998.00

Included with your purchase ( ) :

See Bundle Details!
Edit

    Call 1-844-682-0205 or CHAT for more options

    Welding type:

    Mig

    Mig

    Stick

    Stick

    Tig

    Tig

    Engine Driven

    Engine Driven

    Material type:

    Mild Steel

    Mild Steel

    Stainless Steel

    Stainless Steel

    • EPA Tier 4 Final Compliant Kubota Diesel
    • Electronic Engine Display
    • 3-Year Power Warranty

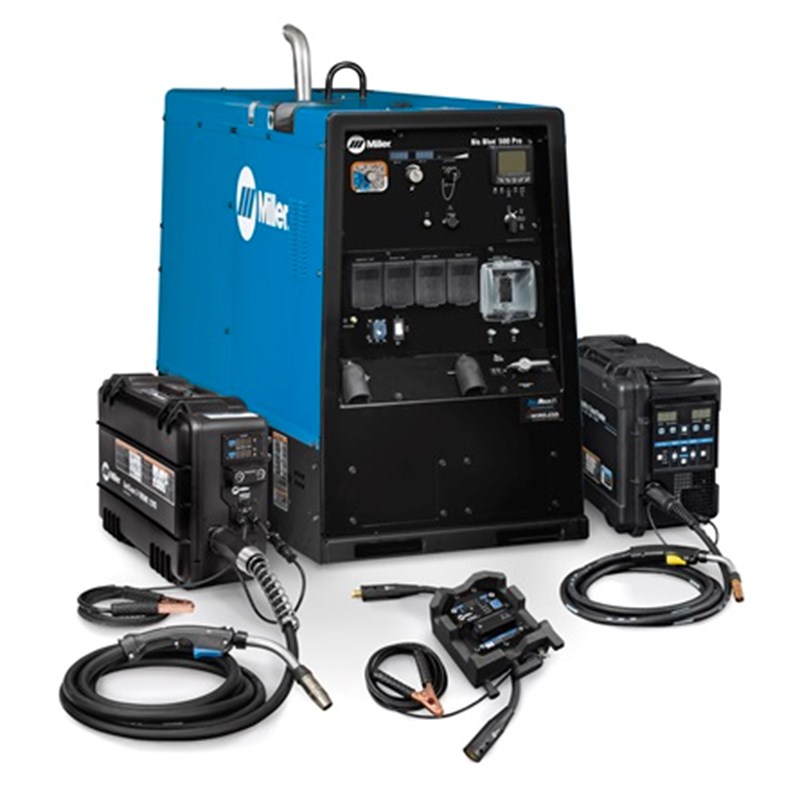

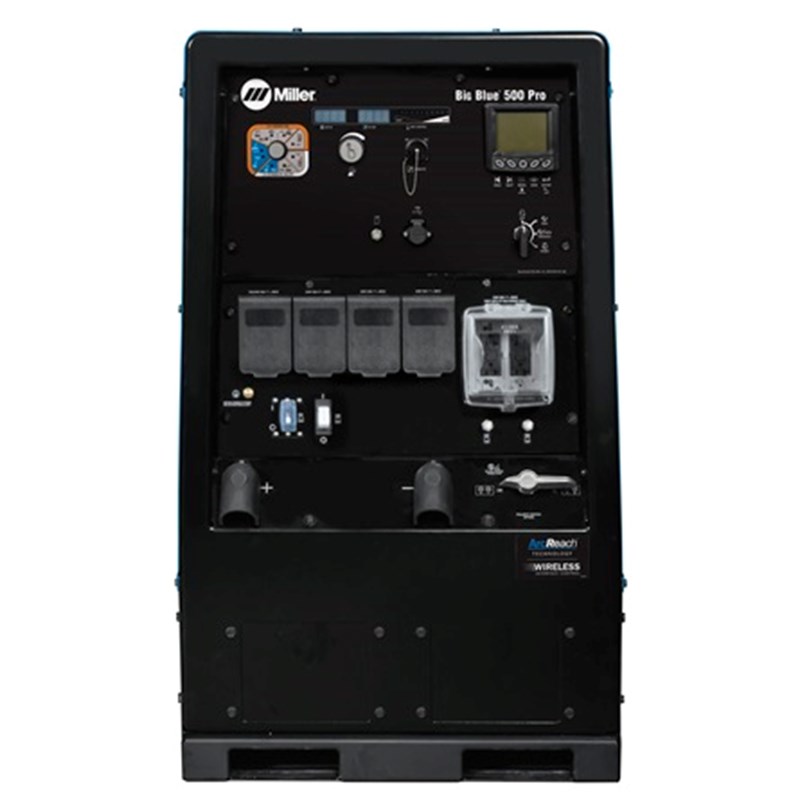

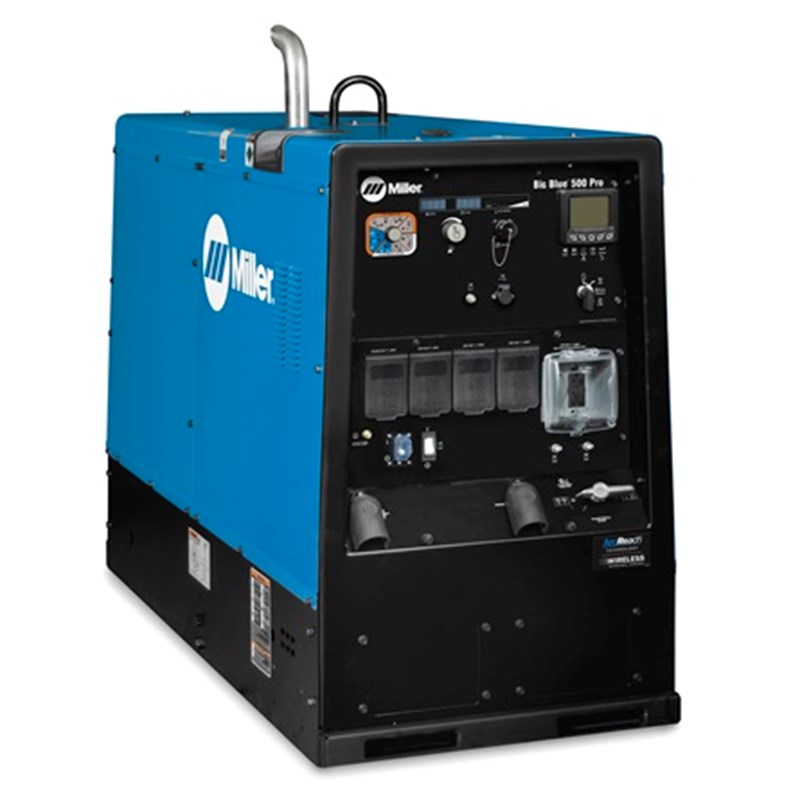

    Miller Big Blue® 500 Pro (Kubota) w/Wireless Interface Control & ArcReach® #907736008

    Clean, quiet, Multiprocess machine delivers up to 500 amps of welding power with an EPA Tier 4 Final compliant engine ideal for heavy use. Now with optional Wireless Interface Control, you can work hassle-free with full control of the machine in the palm of your hand.

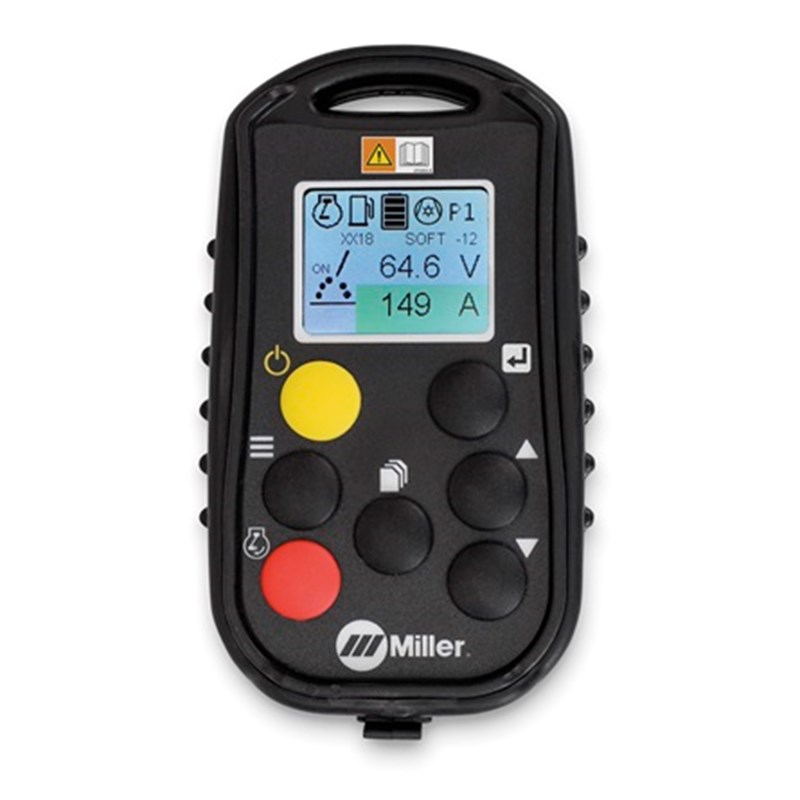

    Wireless Interface Control - Get full control of your machine in the palm of your hand, from wherever you are on the job site, so you can work hassle-free. With wireless interface control, you can:

    • Change welding processes
    • Adjust parameters
    • Select and save preset programs
    • Turn the machine on/off
    • View service reminders
    • And more!

    Extend time between fill-ups and maintenance intervals while eliminating the need to go back to your machine to make adjustments.

    ArcReach® Technology - ArcReach technology uses existing weld cables to communicate process adjustment commands back to the welder generator. With an ArcReach system, amperage & voltage are conveniently located at the operator's fingertips - not back at the power source.

    Dynamic DIG™ - Unlike conventional DIG that provides a preset amount of short-clearing current, Miller’s proprietary Dynamic DIG works on a time-based algorithm that automatically adjusts the amount of current required to clear a short. What does this mean? A smoother more consistent arc that can be tailored to match application, material, fit-up, and welder technique.

    Tier 4 Final Compliant Diesel Engine - The cleanest/greenest power available. Utilizes Diesel Oxidation Catalyst (DOC) technology to keep the air clean with NO exhaust after-treatment maintenance.

    Other Standard Features - Remote oil drain to prevent spills and make servicing easy, digital preset weld meters, automatic idle, and 120V block heater for cold environments.

    Industrial USB Port - Quickly upload the latest software and download machine log files to retrieve in-depth information such as diagnostics and machine statistics.

    Low OCV Stick (VRD) - The Low OCV stick welding function is a simple design that reduces the open-circuit voltage to 15 volts when the welding power source is not in use without compromising arc starts. This feature is now built into the Big Blue 500 Pro for increased operator safety.

    Increased Productivity & Safety - More arc-on time, and reduced exposure to slip, trip, and fall hazards can be realized using Wireless Interface Control or ArcReach because less time is spent going back to the welding power supply to make adjustments.

    Electronic Engine Display - Electronic engine display simultaneously displays fuel level, engine hours, coolant temperature, oil pressure, battery volts, and engine RPMs. Also tracks oil change intervals and displays engine diagnostics for quick and easy servicing.

    Thermal Overload Protection - Thermal overload protection prevents machine damage if the duty cycle is exceeded or airflow is blocked.

    View our welding machineswelding machine accessories & safety equipment.

    Miller Big Blue 600 Pro (Kubota) w/ArcReach #907736008 Specifications

    Industries Interests Construction
    Mining
    Pipe Fabrication
    Maintenance and Repair - Field Operations
    Carbon Diameter 3/6 in (9.5 mm)
    Cold Weather Starting Aids Engine Block Heater
    Glow Plugs
    Current Type DC
    Engine Brand Kubota
    Engine Compliance T4F
    Engine Idle Speed 1350 RPM
    Portability Lift Eye (Standard)
    Trailer (Optional)
    Fork Pockets
    Engine Weld Speed 1800 RPM
    Fuel Tank Size 25 Gallon
    Net Height 46 in
    Fuel Type Diesel
    Net Length 69.5 in
    Horsepower 48.9 hp
    Max Open Circuit Voltage 92 VDC
    Net Weight 1750 lbs
    Weldable Metals Stainless Steel
    Mild Steel
    Net Width 28.5 in
    Rated Output 600 A at 42 V, 40% Duty Cycle,550 A at 42 V, 60% Duty Cycle,500 A at 40 V, 100% Duty Cycle
    Single Phase Generator Continuous Power 12000 W
    Warranty Engine Warranties
    Miller's True Blue Warranty
    Single Phase Generator Peak Power 15000 W
    Sound Rating Idle: 65.9 dB / Weld: 74.3 dB
    Single Phase Generator Continuous Power 12000 W
    Single Phase Generator Peak Power 15000 W
    Amperage Range 20 - 600
