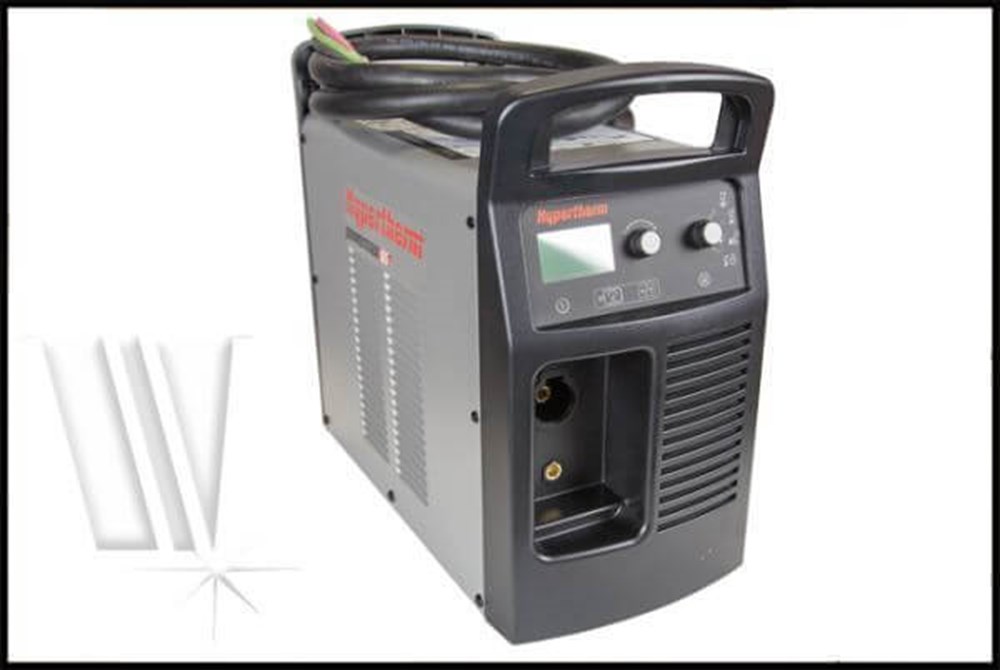

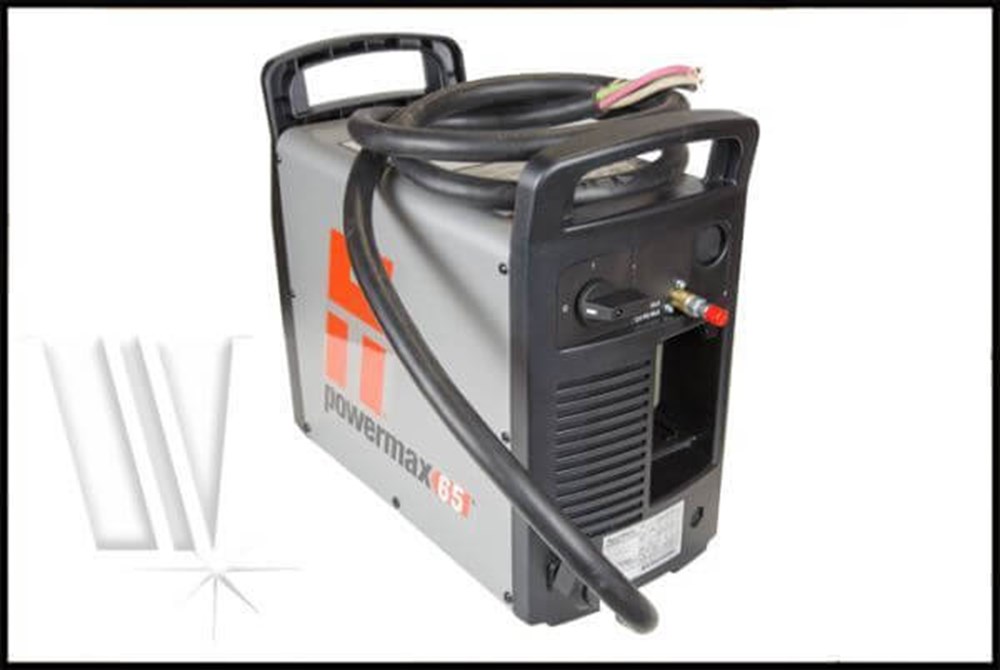

Hypertherm Powermax 65 #083277 Provides Versatility for Your Welding Needs
Hypertherm Powermax 65 180° Full-Length Machine Torch, 25’, (200-600 V CSA) CPC Port and Voltage Divider with Remote Pendant #083277
Equipped with Smart Sense™, the advanced Hypertherm Powermax 65 plasma cutter automatically adjusts gas pressure based on your selected mode and torch lead length. The power supply also features built-in electrode end-of-life detection, enhancing safety and efficiency.
With Spring Start™ technology, these torches ensure consistent electrode ignition without any moving parts, guaranteeing reliable performance every time. Whether you're performing handheld mechanical cutting/gouging or robotic cutting/gouging, these torches deliver outstanding results.
With the Powermax 65, you can effortlessly cut through metals with recommended thicknesses of up to 20mm at 20ipm or a maximum of 25mm at 10ipm in mechanical cutting. For manual cutting, it handles up to 32mm at 5ipm, while consistently piercing the metal at 16mm. When it comes to gouging, it achieves an impressive rate of 10.7lbs/hr., creating a groove with a depth of 3.5mm and a width of 6.6mm.
Upgrade to the Hypertherm Powermax 65 and benefit from its cutting-edge features, unmatched durability, and exceptional performance. Expand your capabilities and achieve precise and efficient metal cutting and gouging operations.

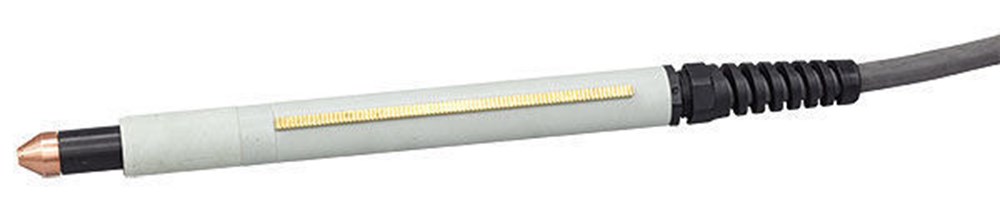

Mechanized Torch Provides Versatility
The Hypertherm Powermax 65 is designed for heavy-duty cutting and gouging. With a 25-foot hand torch and 180° mechanized torch, this plasma cutter offers the versatility for a wide range of jobs.
Smart Sense™ automatically adjust gas pressure
SpringStart™ for more reliable, consistent starting
Variety of Duramax™ torches for hand cutting or gouging, robotic cutting or gouging, portable automation, and X-Y table
Q - Do I need to adjust gas pressure with the Powermax 65?A - No, you do not need to adjust gas pressure. Smart Sense technology automatically adjusts gas pressure.
Q - What applications is this machine good for?A - The Hypertherm Powermax 65 is approved for drag cutting, fine feature cutting, max removal gouging, extended reach cutting, flush cutting, mechanized cutting, extended reach gouging, and max control gouging.
Q - What is the CPC port?A - The CPC port is a connection for a machine torch to be used with mechanized tables and systems, such as a CNC table.
Q - Is this all ready to go with a CNC table?A - Yes, this model has the CPC port and machine torch necessary to use with a CNC table, as well as track systems, pipe, or robotic cutting.
How to install a line-disconnect switch:
Determine location.
Having a line-disconnect switch for each power supply enables the operator to turn off incoming power quickly in an emergency. The switch should be positioned where it is ea
Have a question about this product? Submit your question using the form below
Documents
Videos
3/4" Cut Capacity
Lightweight and Portable
180° Machine Torch
25' Leads
CPC Port
6-year Power Warranty
