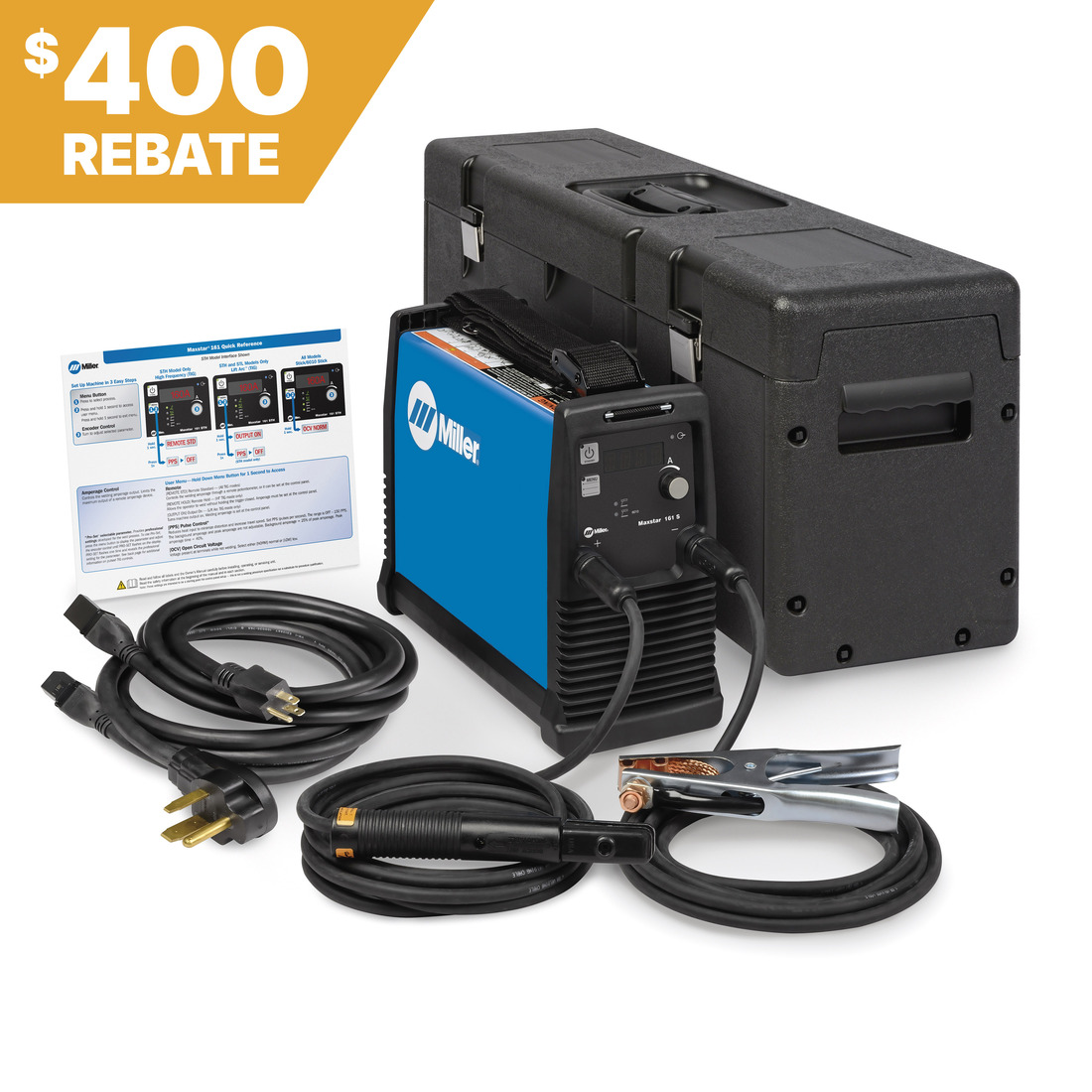

Maxstar® 161 S #907709001 120-240 V, X-Case, Stick Package
Welding Where the Work Is
This lightweight, portable stick welder is perfect for any work setting, including farms, ships, hobby shops, and on-site maintenance repairs at varied locations. With a sturdy handle and included shoulder strap, this 13-lb machine will be your go-to machine for stick welding where you need it. This model comes complete with Miller’s X-CASE for reliable protection in storage and in transit.
Simply Intelligent Safety Features
Thermal overload protection minimizes machine (and operator!) damage in case of an overlong duty cycle or congested airflow. If you need to step away for a moment or two, the smart design of low OCV stick brings the voltage down to 12-16 volts automatically when the power source is not in use. This means you don’t need to worry about add-on voltage reducers! Now you can safely remove stuck electrodes and save time with Stick-Stuck technology: this menu-selectable feature detects a stuck electrode and turns the welding output off.
Detailed and Dependable
A digital meter makes setup reference and precise amperage control easy, and this unit is power factor corrected (PFC) for the most effective action, particularly on 120 volts. Minimize noise, economize energy use, and cut down on contaminant pull-through with Maxstar’s Fan-On-Demand™ power source cooling system. Easy to use and built to last, this best in class machine is small in size but big in performance.
Shop all stick welders and Miller products at the best prices online, from Welders Supply.
Other Versions:
- 907709 - Maxstar 161 S 120-240 V Stick Package
Maxstar® 161 S #907709001 120-240 V, X-Case, Stick Package Specifications: | ||
---|---|---|
Input Voltage Options | 110/115/120 V 220/230/240 V |
|
Input Hz Range | 50 / 60 Hz | |
Input Phase | 1-phase | |
Current Type | DC | |
Weld Output | CC | |
Maximum Open Current Voltage | 48 VDC | |
Material Thickness | 0.02 in. (0.5 mm) - .1875 in. (4.8 mm) | |
Weldable Metals | Steel Stainless Steel |
|
Processes | Stick (SMAW) | |
Welding Amperage Range | 120 V: 20–90 A 240 V: 20–160 A |
|
Rated Welding Output | 120 V: 60 A at 13.6 VDC, 100% duty cycle; 90 A at 15.2 VDC, 30% duty cycle 240 V: 110 A at 14.4 VDC, 100% duty cycle; 160 A at 16.4 VDC, 20% duty cycle |
|
Industrial Applications | Racing / Customizing / Restoring DIY / Home Hobbyist Farm and Ranch Metal Art / Sculpting Manufacturing Aerospace Boat / Yacht Construction Education / Training Heavy Equipment Manufacturing High Purity Processing Infrastructure Mechanical Contracting |
|
Package Includes | Maxstar® 161 S 6.5 ft. (2 m.) primary cords for 120 V and 240 V 13 ft. (4 m.) stick electrode holder with 25 mm. Dinse-style connector 10 ft. (3 m.) work clamp with 25 mm. Dinse-style connector Adjustable handle/shoulder strap Protective Miller X-Case™ (301429) |
|
Net Width | 5.6 in. (142 mm) | |
Net Height | 10.3 in. (262 mm) | |
Net Length | 13.5 in. (343 mm) | |
Net Weight | 13 lb. (5.9 kg) | |
Portability | Handles Straps |
|
Warranty | 3 years - Miller's True Blue Warranty |
SHIPPING DIMENSIONS |
|
Height: | 10.30 Inches |
Width: | 5.60 Inches |
Length: | 13.50 Inches |
Weight: | 13 Lb(s) 0 Oz |
Accessories
Consumables
Manufacturer Reviews
Product Questions and Answers
How to Turn on Stick Stuck Setting:
- Locate Button.
Find the process Selector Button on the main access panel.
- Process Selector Button.
Use control to select the setting for Stick Stuck Selection(Stick 6010).
- Use your Welder.
Stick-stuck allows you to use your welder more safely.
