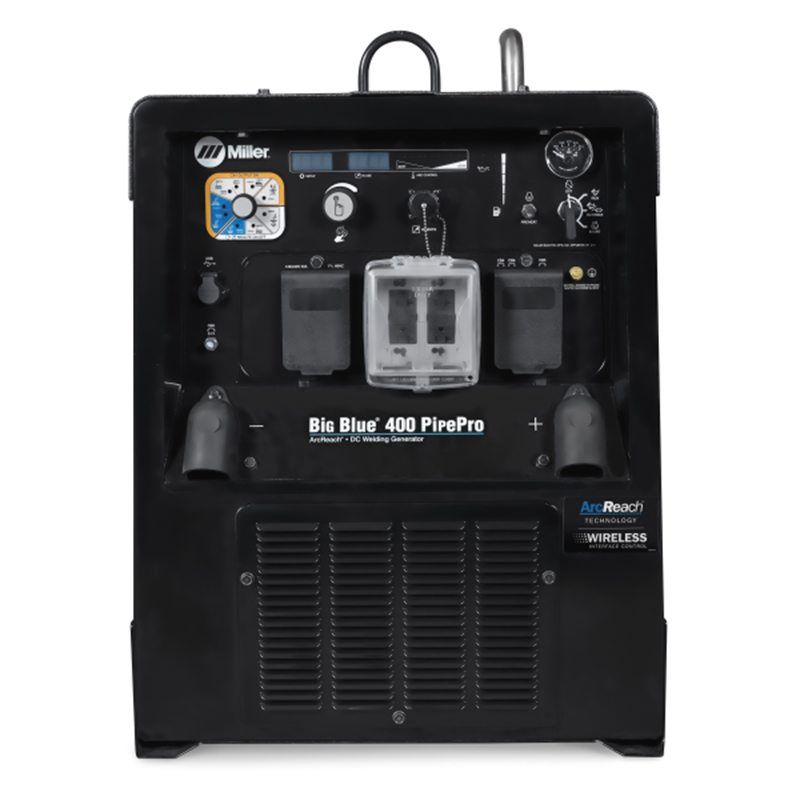

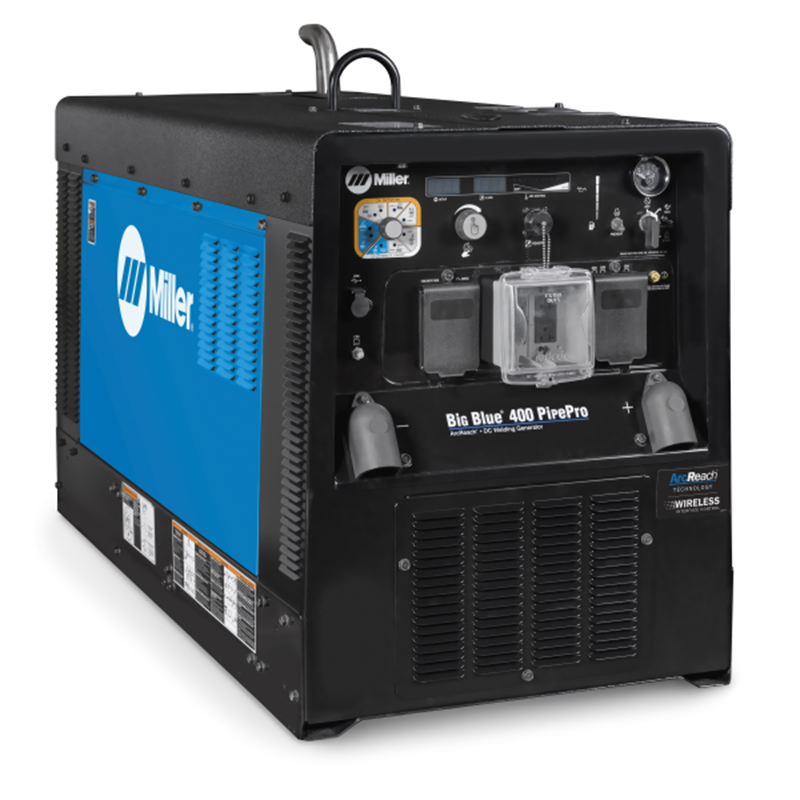

Miller Big Blue 400 PipePro (CAT) Blue w/Wireless Interface Control 907806001

Part Numbers: 907806001
1 Review
$26,026.00
$30,059.00* Save $4,033.00

Included with your purchase:

Select your Bundle!
Edit

    Call 1-844-682-0205 or CHAT for more options

    Welding type:

    Mig

    Mig

    Stick

    Stick

    Tig

    Tig

    Engine Driven

    Engine Driven

    Material type:

    Mild Steel

    Mild Steel

    Stainless Steel

    Stainless Steel

    • TIG Welding
    • MIG Welding
    • Stick Welding
    • Engine Driven
    • Multi-Process
    • 3-Year Miller Warranty

    Miller Big Blue 400 PipePro (CAT) Blue w/Wireless Interface Control 907806001

    What's Included

    • Wireless Interface Control remote

    Not Included

    • Weld leads

    Features:

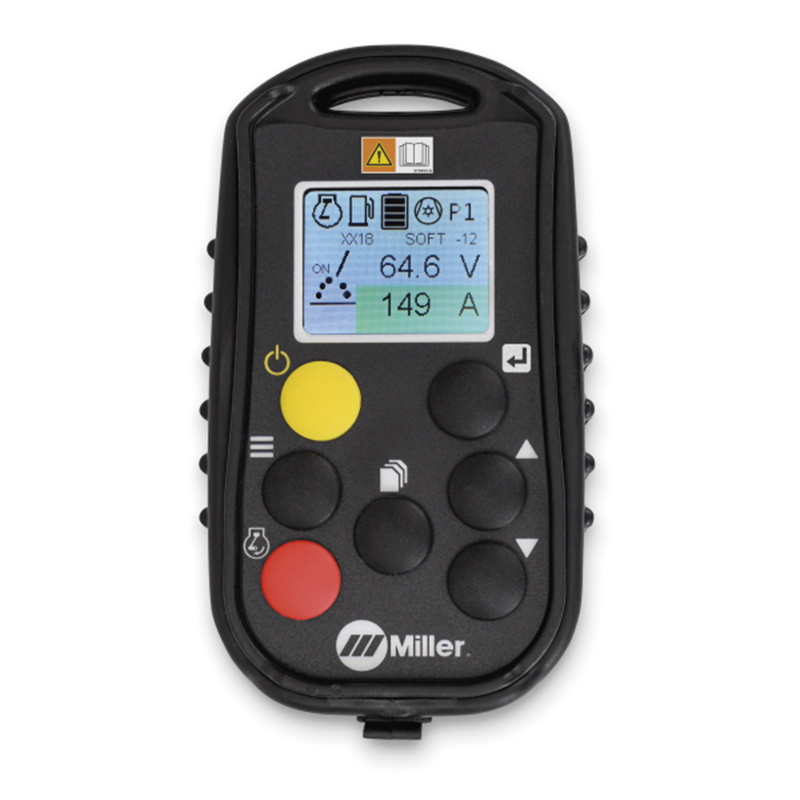

    Wireless Interface Control

    Elevate your performance and get full control of your machine in the palm of your hand, from wherever you are on the jobsite. With wireless interface control, you can:

    • Change welding processes
    • Adjust parameters
    • Select and save preset programs
    • Turn the machine on/off
    • View service reminders
    • And more!

    Extend time between fill-ups and maintenance intervals while eliminating the need to go back to your machine to make adjustments.

    Heavy-Duty Low-Speed CAT® Industrial Diesel Engine

    With the reliability you expect from Miller, the CAT C1.5T turbocharged three-cylinder, liquid-cooled, industrial diesel engine is backed by world-class support and service through the global CAT dealer network.

    ArcReach® Technology

    ArcReach technology uses existing weld cables to communicate process adjustment commands back to the welder generator. With an ArcReach system, amperage & voltage are conveniently located at the operator's fingertips - not back at the power source.

    Dynamic DIG™

    Unlike conventional DIG that provides a preset amount of short-clearing current, Miller’s proprietary Dynamic DIG works on a time-based algorithm that automatically adjusts the amount of current required to clear a short. What does this mean? A smoother more consistent arc that can be tailored to match application, material, fit-up, and welder technique.

    Other Standard Features

    Digital preset weld meters, output contactor control, and automatic idle.

    Programmable Weld Settings

    Multiprocess joints and parameter changes between weld passes require setup time for optimal welding conditions. With Wireless Interface Control, you can save up to four different weld programs. Easil select any program with the push of a button, saving you time, effort and adding consistency to your setup between welds.

    Line-X® Top Cover

    Workbench tough top cover provides superior impact, corrosion and abrasion protection.

    Industrial USB Port

    Quickly upload the latest software and download machine log files to retrieve in-depth information such as diagnostics and machine statistics.

    HD Powder Coat

    All painted sheet metal is pretreated with a zinc-rich primer to provide extra protection against rust & corrosion (comparable to stainless steel).

    Fuel Savings

    When your welder/generator is far away, it's time-consuming to walk back to turn it off, so it ends up running all day. Use Wireless Interface Control to instantly turn your machine off when needed, saving fuel and money.

    View all welding machines, used welders & equipment, and other welding tools available at Welders Supply.

    Processes

    • Stick (SMAW)
    • MIG (GMAW)
    • Flux Cored (FCAW)
    • RMD
    • TIG DC (GTAW-DC)
    • Air Carbon Arc Cutting and Gouging (CAC-A)

    Miller Big Blue 400 PipePro Specifications:

    Industries Interests Pipe Fabrication / Construction
    Cross Country Pipeline
    Work / Service Trucks
    Current Type

    DC

    Net Width 26.5 in
    Net Height 32 in
    Net Length 56 in
    Net Weight 1038 Ibs

    Manufacturer Reviews

    By: Eric
    Use it for rig welding downhill and uphill pipe. Love the ability to dial in the arc characteristics. Definitely recommend trying it out.
