Multi-Voltage
Multi-Phase
Multi-Process

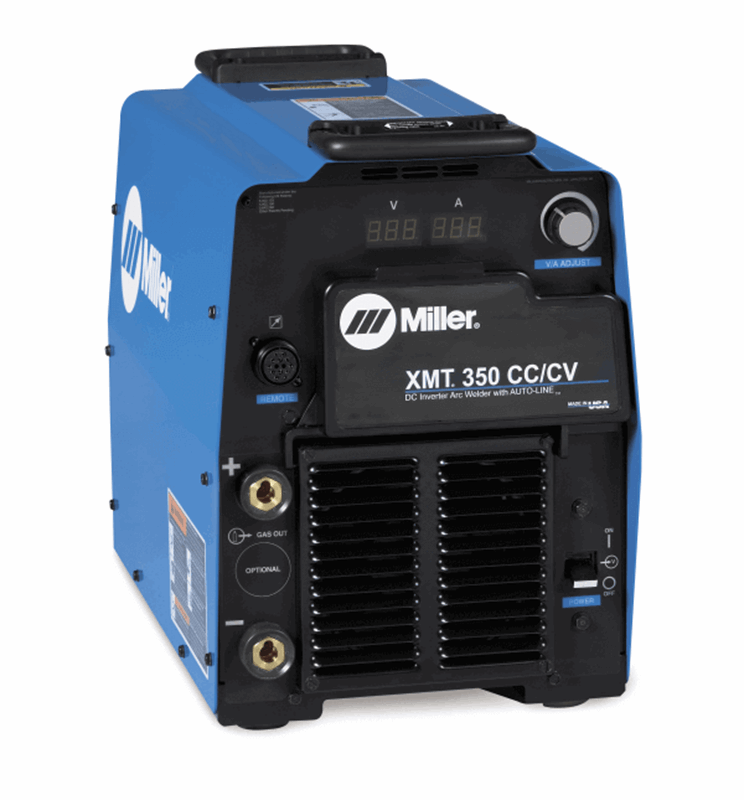

3-Year Power WarrantyPortability and excellent arc performance make the XMT family the most popular in the industry. The XMT 350 CC/CV is the most popular model for its flexibility and simplicity.
Auto-Line™ Power Management Technology - Allows for any input voltage hookup (208-575 VAC, single- or three phase) with no manual linking, providing convenience in any job setting,. Ideal solution for dirty or unreliable input power.
Advanced features for the professional welder - Adaptive Hot Start™ makes starting stick electrodes easy without creating an inclusion. Infinite arc control available in the Stick and Wire modes for easier fine tuning of tough-to-weld materials and out-of-position applications. Lift-Arc™ provides arc starting that minimizes contamination of the electrode and without the use of high frequency.
Standard 14-pin Receptacle - Has the flexibility to be used with spool guns, feeders, and remote controls.

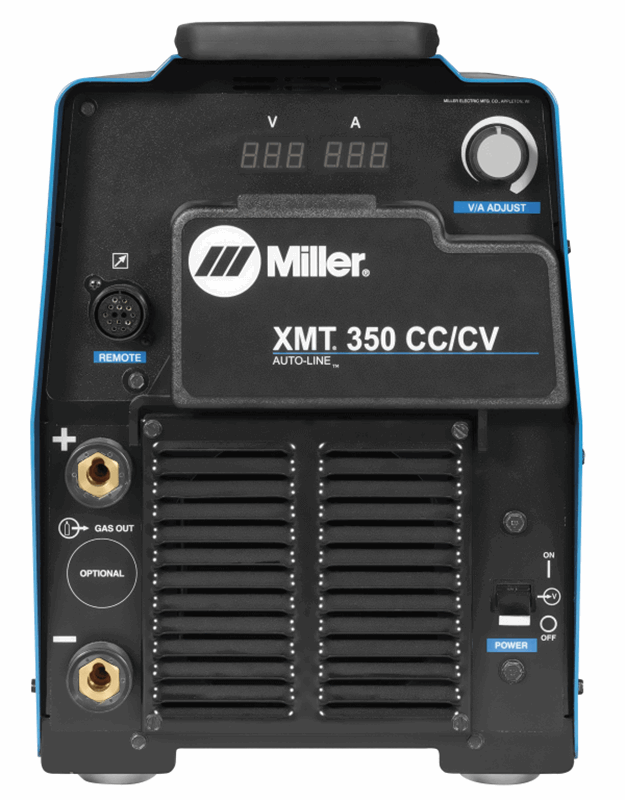

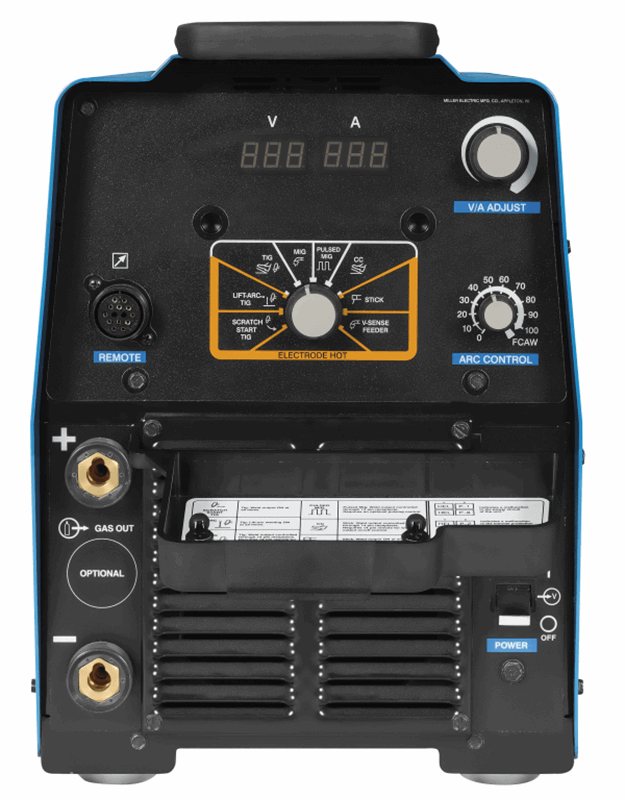

Welder friendly control panel - Process selector switch reduces the number of control setup combinations without reducing any features. Ultra-tough, polycarbonate-blended cover protects front controls from damage. Large, dual digital meters are easy to view and presettable to ease setting weld output.
Output connector choices - Dinse- or Tweco®-style weld cable connectors provide high-quality weld cable connections. (Note: Two Dinse connectors are supplied with each Dinse machine. Tweco connectors must be ordered separately.)
Reliability - Wind Tunnel Technology™ protects internal components, greatly improving reliability. Fan-On-Demand™ cooling system operates only when needed, reducing noise, energy use and amount of contaminants pulled through machine.
Miller XMT® 350 CC/CV, Dinse, Aux Power Specifications: |
|
| Industries Interests | Aerospace Construction Heavy Equipment Manufacturing Infrastructure Manufacturing Railcar Shipbuilding Boat / Yacht High Purity Processing |
| Carbon Diameter | 1/4 in (6.4 mm) |
| Current Type | CC /CV DC |
| Portability | Handle(s) Running Gear / Cart (Optional) |
| Net Height | 17 in |
| Net Length | 24 in |
| Net Weight | 80 lbs |
| Weldable Metals | Aluminum Steel Stainless Steel Specialty Metals |
| Net Width | 12.5 in |
| Input Voltage |
208 V 220/230/240 V 380/400/440 V 460/480 V 575 V |
| Input Phase |
1 and 3 Phase |
| Input Hz | 50 /60 Hz |
| Warranty | 3 Years Miller's True Blue Warranty |
SHIPPING DIMENSIONS |
|
| Height: | 12.50 Inches |
| Width: | 17.00 Inches |
| Length: | 24.00 Inches |
| Weight: | 92 Lb(s) 3 Oz |
