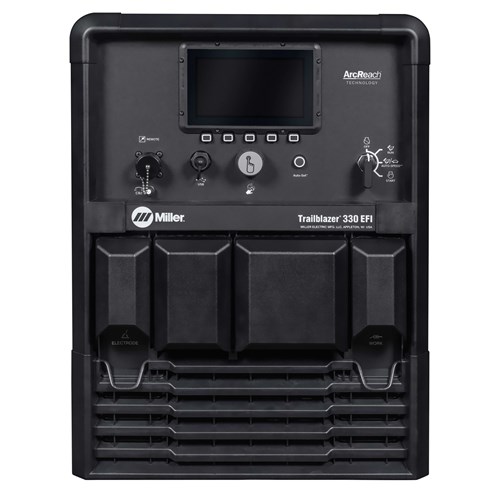

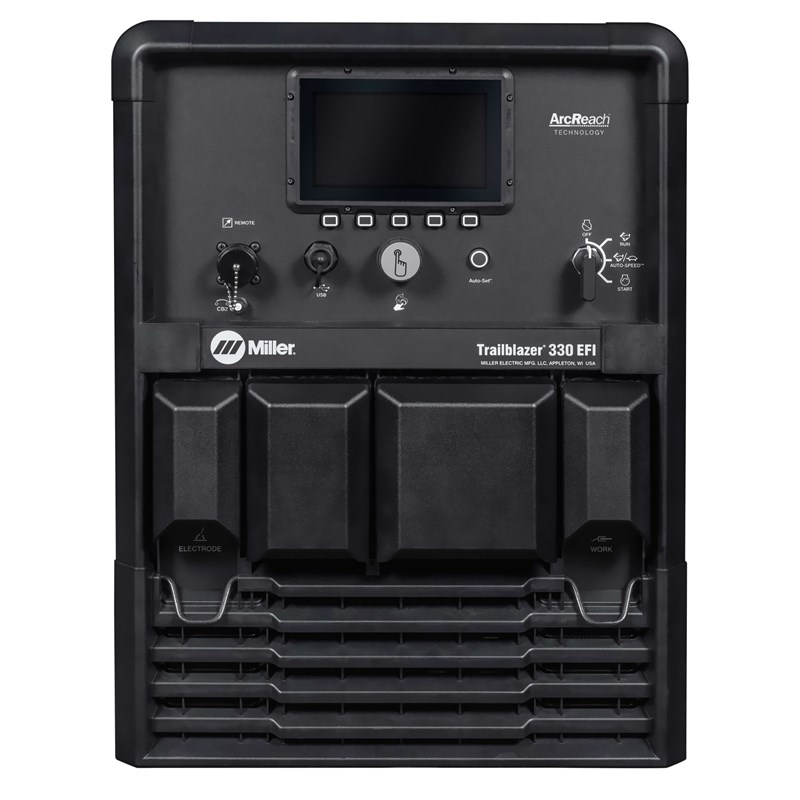

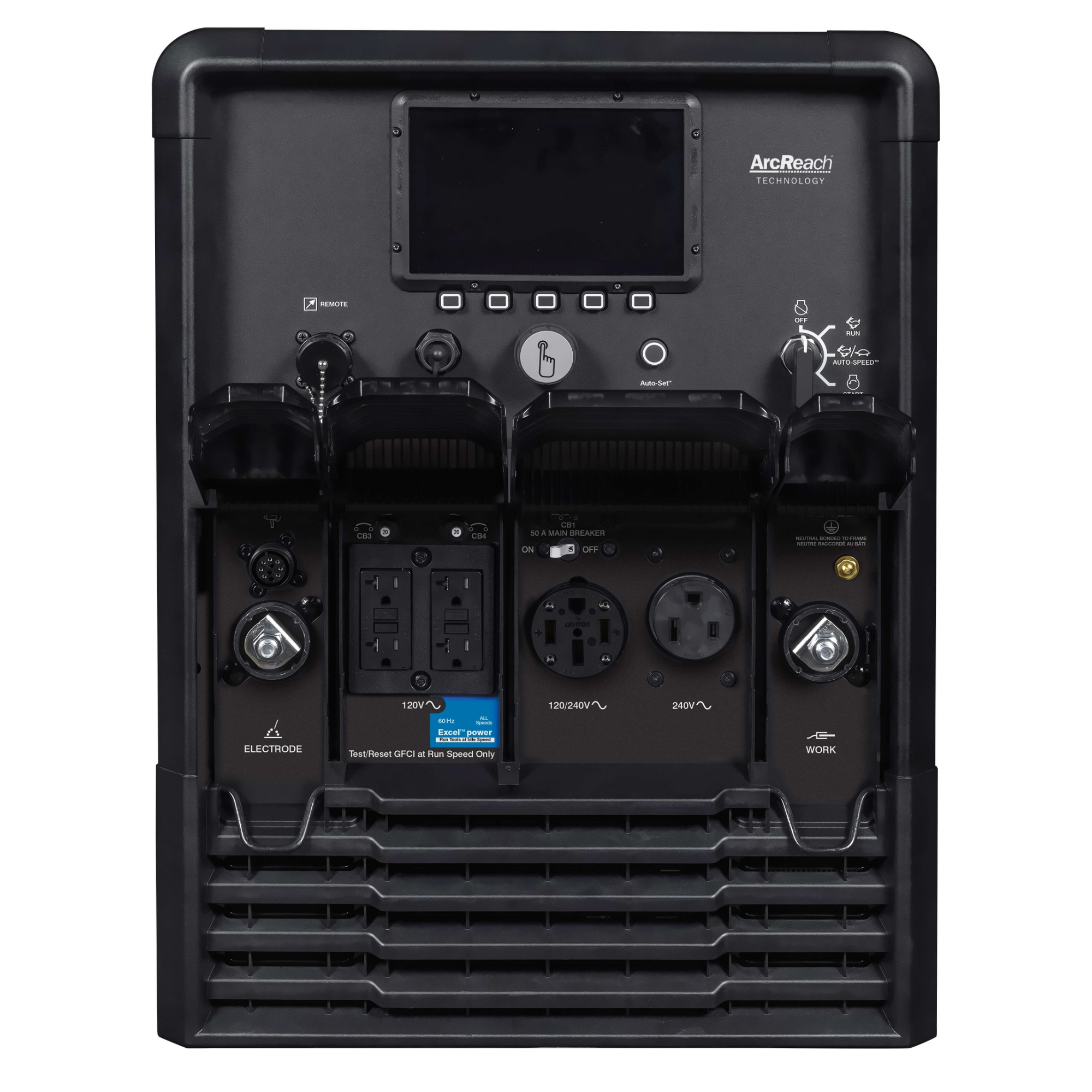

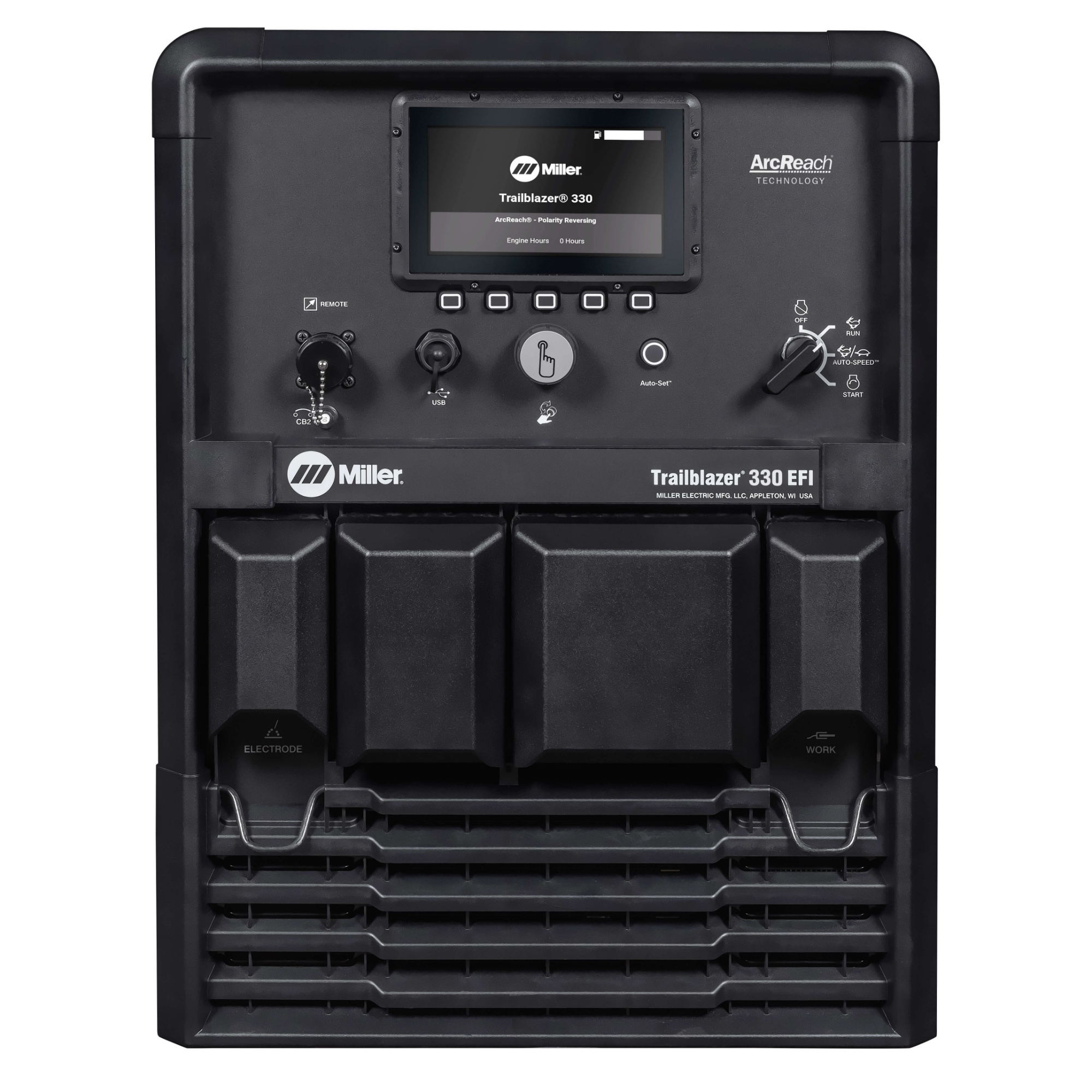

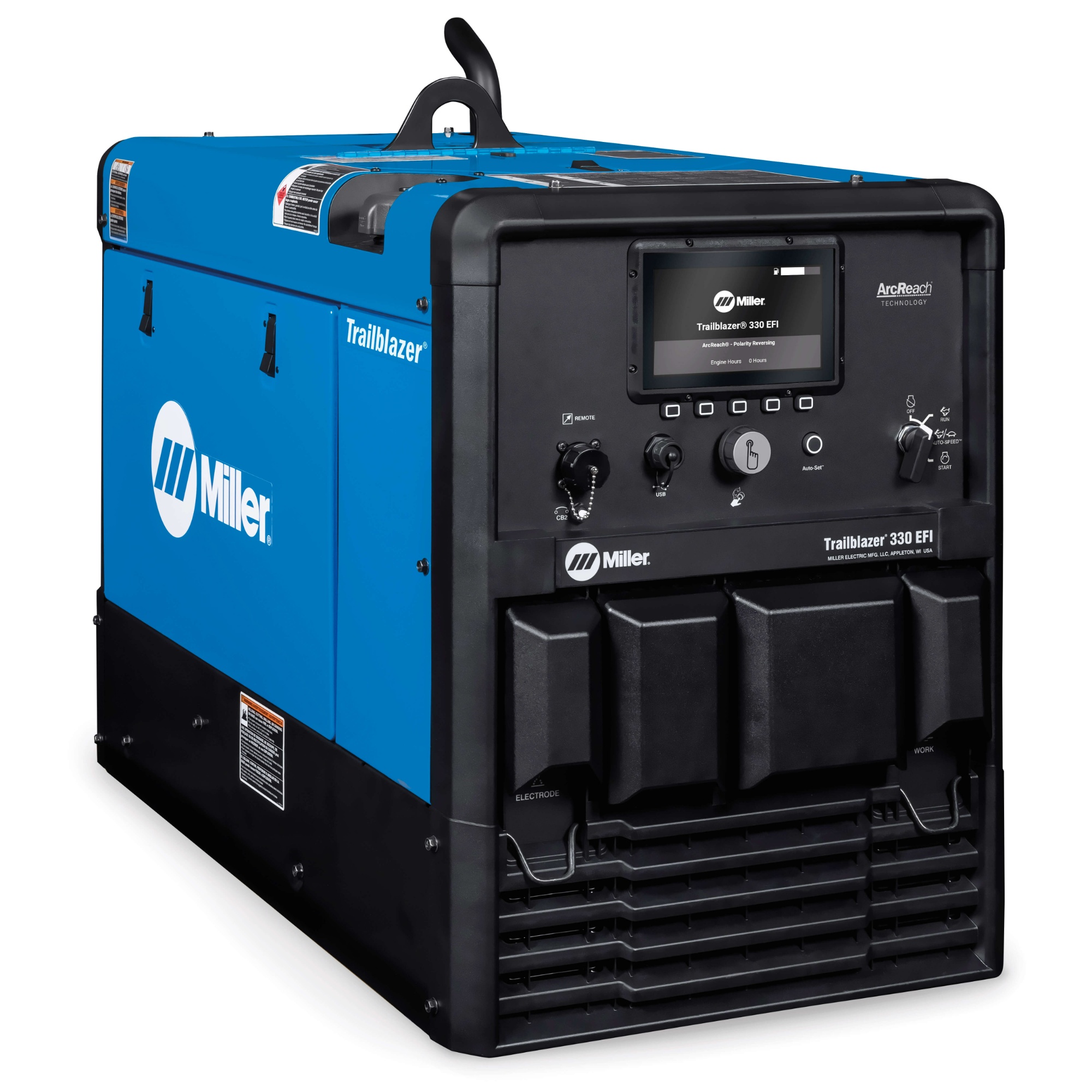

Miller Trailblazer 330 EFI w/ Excel Power, Polarity Reversal #907832005

Part Number: 907832005
UPC: 715959707350
Rebate Forms:
$1000 MFR Rebate - Miller BWB
$11,115.00 + Free Shipping $11,115.00*
SAVE $0.00

Welding type:

Mig

Mig

Stick

Stick

Tig

Tig

Engine Driven

Engine Driven

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

  • $300 Miller Build with Blue Rebate$1000 MFR Rebate
  • Engine-driven welder/generatorGas Engine
  • Multiprocess welding machineMutli-Process MIG/TIG/Stick
  • Lightweight, portable welding machine80+ lbs Lighter
  • Engine-driven welder maintenanceEasy Maintenance
  • Full auxiliary power at any settingSeparate Weld & Auxiliary Power
  • Lincoln Electric 3-year warranty3-Year Warranty

Miller True Blue 3-year warrantyMiller Trailblazer 330 EFI, Battery Charger w/ Excel Power & WIC Remote #907832004

Reliable engine-driven welders with unbeatable arc performance, providing the smoothest, most stable arc in the industry. Trailblazer exclusive technologies — advanced Auto-Speed™ and optional Excel™ power — deliver superior runtimes, increase fuel efficiency, and improve engine-driven welder performance. No other compact machine in the 300-amp class delivers more welding power or more auxiliary power with better fuel efficiency and less noise — for productive, profitable, quieter job sites.

Polarity Reversing Technology

Advanced polarity reversing abilities allow seamless switching between DCEP (DC+) and DCEN (DC-) polarities. This flexibility empowers welders to effortlessly handle diverse welding tasks, ensuring top-notch performance across materials and techniques. With this feature, craftsmen achieve superior penetration or precise filler material deposition, enhancing efficiency and delivering exceptional results.

Excel™ Power

Miller Excel Power - Full Power at IdleUnlike competitive machines that provide auxiliary power only at 3,600 rpm (max), Excel power delivers a full 2,400 watts (20A) of 120V inverter-based, pure sine wave power at idle. With Excel power, you can operate jobsite tools like grinders and lights at a quieter, fuel-saving engine speed.

Refueling time and operating costs are reduced with Excel power, which means more productivity and profitability. Plus, everyone on the jobsite gets a better working environment because noise levels and exhaust emissions are lowered.

Try It For Yourself! Launch Miller's Trailblazer 330 Simulator


Applications:

  • Fabrication
  • Maintenance Repair
  • Structural Steel Work
  • Sheet Metal
  • Pipe

What's Included:

  • Trailblazer welder/generator #907831
  • Not included: Weld Leads
Miller Trailblazer 330 with Excel Power #907831001

Excel Power = Less downtime, more profitability


Features of the Trailblazer 330 #907832005:

As with the previous model 211, the updated model has a Multi-Voltage Plug (MVP) that allows you to connect to either 120 or 230 V power receptacles without the use of any tools.

  • Intuitive digital interface with Auto-Set™ makes it quick and easy to precisely set weld parameters for any process.
  • Lighter and Smaller - The Trailblazer 330 weighs less than any other engine-driven welder in its class. It’s over 80 pounds lighter and 13% smaller than previous models, so it’s easier to move and takes up less space on trucks.
  • Advanced Auto-Speed™ technology automatically varies engine speed from 1,800–3,600 rpm to match weld demands — reducing fuel consumption, maintenance costs and noise for a safer, more efficient jobsite.
  • Predictive Maintenance
  • Direct Connect Spool Gun Connection
  • ArcReach® for parameter control at the wire feeder or pendant without needing a control cord.
  • Dynamic DIG™ to optimize arc control for stick welding applications.
  • Pulsed TIG with QuitePulse™ creates a slower, more fluid transition between background and peak amperage.
  • Excel™ Power delivers a full 2,400 watts (20 A) of 120-volt inverter-based, pure sine wave power at all speeds, including idle.
  • Polarity reversing capability to easily switch polarity of the weld studs at the interface.
Miller Trailblazer 330 Engine-Driven Welder - Key Features

How to Get Your Rebate

Miller Build with Blue rebate claim instructions

Shop Welders Supply for the best prices on MIG, TIG, Stick and Gas welders from Miller & other top brands.

Miller Trailblazer 330 Specifications

Welding Mode CC/DC
CV/DC
Process Stick/TIG
MIG/FCAW
Battery charge/ crank assist (optional)
Amp/Volt Ranges 20 - 330 A
15-40 V
12/24 V
Rated Weld Output at 104° F (40° C) 330 A at 30 V, 100% duty cycle
325 A at 30.25 V, 100% duty cycle
Charge: 150 A, Crank assist: 300 A
Single-Phase Auxiliary Power Peak
12,000 watts
Continuous
10,500 watts
Excel™ power (optional)
2,400 watts, 20 A at 120 V,
60 Hz pure auxiliary power at
idle speed and while welding
Sound Levels at 23 ft (7 m) Weld
150 A load: 65 dB (90 Lwa)
330 A load: 73.5 dB (98.5 Lwa)
Auxiliary power
Excel power: 65 dB (90 Lwa)
12 kW standard power:
73.5 dB (98.5 Lwa)



SHIPPING DIMENSIONS

Height: 27.00 Inches
Width: 21.00 Inches
Length: 38.00 Inches
Weight: 456 Lb(s) 8 Oz
