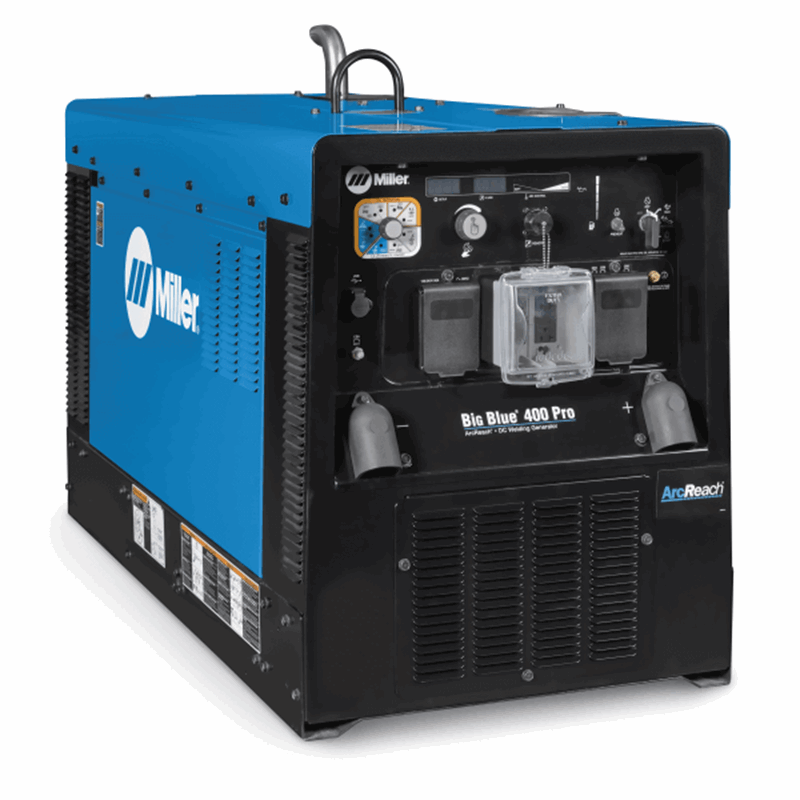

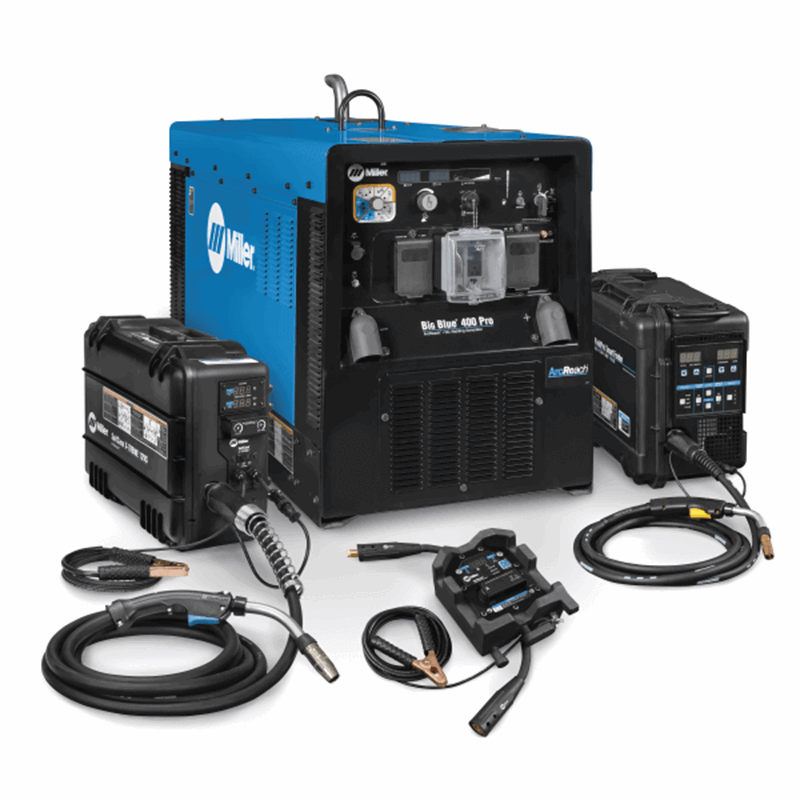

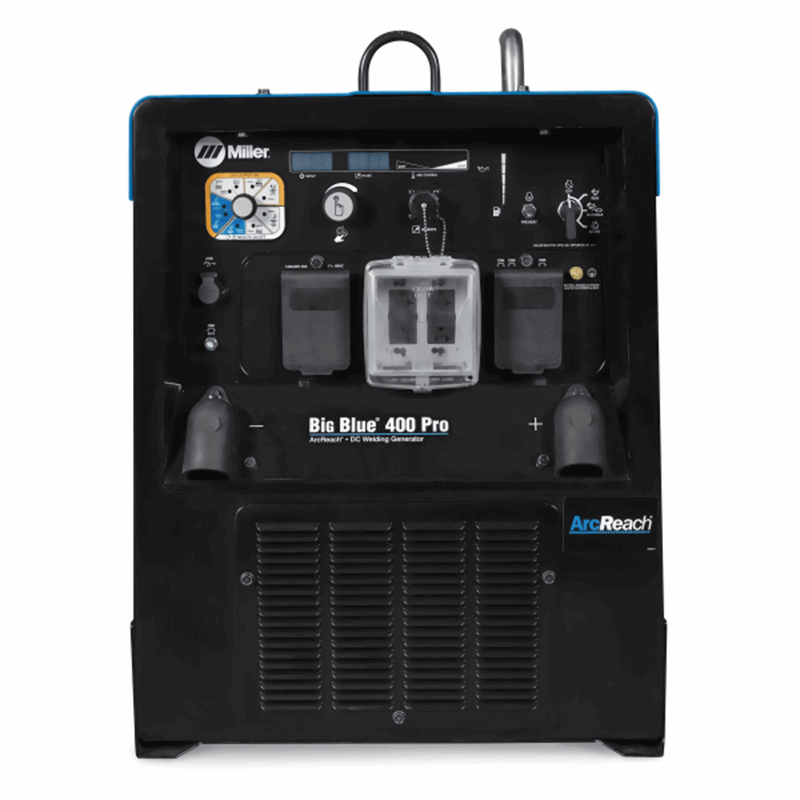

Miller Big Blue® 400 Pro (Mitsubishi) ArcReach® 907733001
The Big Blue 400 Pro is designed for ease of use, reliability, and fuel economy. Designed for professional welders by professional welders.
Processes
- Air Carbon Arc Cutting and Gouging (CAC-A)
- Flux Cored (FCAW)
- MIG (GMAW)
- Pulsed MIG (GMAW-P)
- RMD
- Stick (SMAW)
- TIG DC (GTAW-DC)
View our large selection of welding machines including Mig welders, Tig welders, and Stick welders with the greatest values online.
Miller Big Blue 400 Pro (Mitsubishi) ArcReach Specifications: | |
---|---|
Industries Interests | Construction Infrastructure Fabrication Maintenance and Repair - Field Operations Mechanical Contracting Pipe Fabrication / Construction Work / Service Trucks |
Carbon Diameter | 1/4 in (6.4 mm) |
Cold Weather Starting Aids | Engine Block Heater Glow Plugs |
Current Type | DC |
Engine Brand | Mitsubishi |
Engine Compliance | T4F |
Engine Idle Speed | 1500 RPM |
Portability | Lift Eye (Standard) Trailer (Optional) |
Engine Weld Speed | 1800 RPM |
Fuel Tank Size | 11.5 Gallon |
Net Height | 32 in |
Fuel Type | Diesel |
Net Length | 56 in |
Horsepower | 24.7 hp |
Max Open Circuit Voltage | 85 VDC |
Net Weight | 993 lbs |
Weldable Metals | Steel Stainless Steel |
Net Width | 26.25 in |
Rated Output | 400 A at 24 V, 100% Duty Cycle 350 A at 27 V, !00% Duty Cycle 300 A at 32 V, !00% Duty Cycle |
Single Phase Generator Continuous Power | 10000 W |
Warranty | 3 Years Engine Warranties Miller's True Blue Warranty |
Single Phase Generator Peak Power | 12000 W |
Sound Rating | Idle: 68.7 dB / Weld: 72.1 dB |
Amperage Range | 20 - 400 |
SHIPPING DIMENSIONS |
|
Height: | 34.00 Inches |
Width: | 28.25 Inches |
Length: | 58.00 Inches |
Weight: | 1045 Lb(s) 0 Oz |
Consumables
Manufacturer Reviews
Used on a Structural Steel Erection Truck, Full Pen Welding all day long with 232 Flux Core .072 Wire. Starts every time without fail. Quite the machine for the size and very very quiet. Main reson for purchase is 1) it is a diesel drive and 2) I have never had any problems with Miller products and I have owned every major brand since 1972. Im still waiting to save a little money to purchase a wireless control wire feeder to be able to use all the features of the 400 Pro.
Product Questions and Answers
Q - What kind of engine does it have?
A - It has a Heavy-Duty Low-Speed Kubota V1505 Industrial Diesel Engine.
Q - How much does this weigh?
A - 993 lbs
