Miller Big Blue® 600 Air Pak 907750
Share
Print
Documents

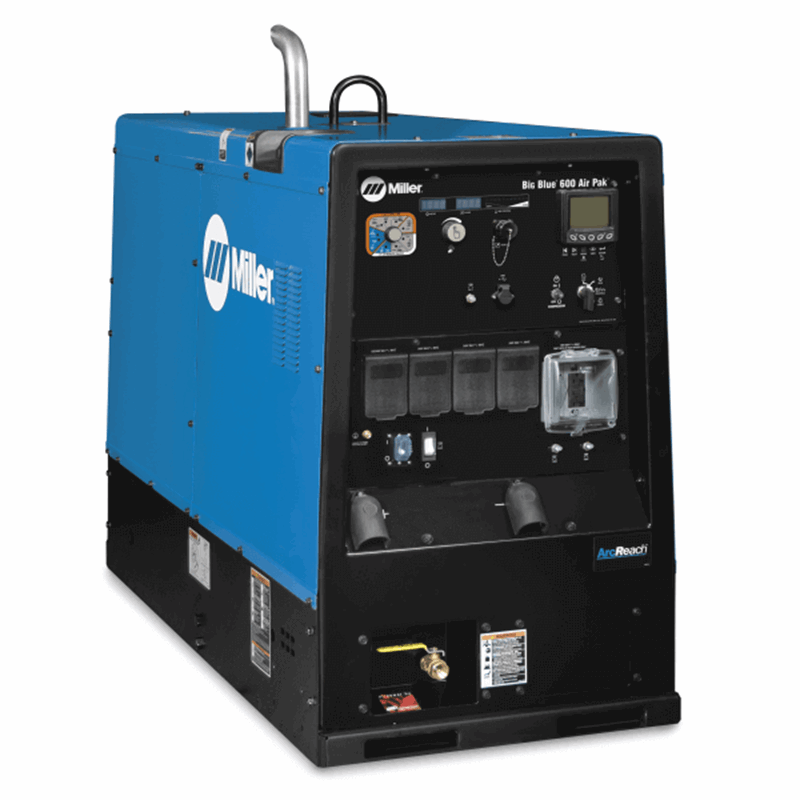

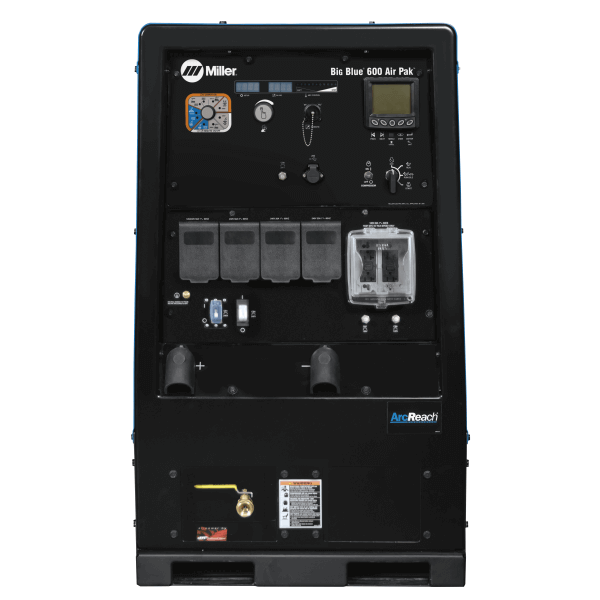

VideoMiller Big Blue® 600 Air Pak Welder/Generator with ArcReach 907750
This all-in-one field-based welder/generator from Miller® eliminates the need for an auxiliary air compressor. With single-operator power for welding and carbon arc gouging, it's ideal for critical repairs and maintenance work. The generator produces 27,000 peak watts of power when using 3-Phase power or 15,000 watts on single-phase, and the built-in Ingersoll Rand screw-type air compressor is perfect for gouging and running pneumatic tools.
The Big Blue 600 will keep your crew productive with reliable welding equipment and time-saving innovations like ArcReach, which makes it possible to make parameter adjustments right where they're welding instead of having to walk back to the machine. And with the cleanest, greenest diesel power available, the T4F-compliant Deutz industrial diesel engine will have everyone breathing a little easier.
Experience the power True Blue® for yourself, and you'll understand why so many pros choose Miller.
Heavy Industrial Applications:
- Maintenance and Repair Rigs
- Heavy Construction
- Mining Maintenance
- Railroad Maintenance
- Pipe Welding
Processes:
- Stick (SMAW)
- MIG (GMAW)
- Flux-Cored (FCAW)
- RMD®*
- Pulsed MIG (GMAW-P)*
- DC TIG (GTAW)
- Submerged Arc (SAW)
- Air Carbon Arc (CAC-A)
3/8-inch (9.5 mm) Carbons
Miller Big Blue® 600 Air Pak Welder/Generator with ArcReach 907750:
| Feature | Benefit |
|---|---|
| Digital Meters with SunVision™ | Weld with the easiest view possible in all light environments. |
| Ingersoll Rand Ultra-Reliable Industrial Rotary Screw Compressor (Air Pak Models Only) |
Allows greater fuel savings and longer compressor service intervals. |
| Industrial USB Port | Upload the latest software while logging files and stats of machine use for operation management. |
| 20,000 watts of Pure Generator Power | A second welding arc now available with an extra inverter-based power source. |
| HD Powder Coat | Protect sheet metal from rust and corrosion. |
| Optional Vandalism Lockout (Standard on Deluxe Model) | Lockable hinged steel panels cover and protect nameplate, gauges, and ignition switch (padlock included). |
| Arc Control | Stick and solid wire welding is made easier with fine-tuning of hard to weld locations. |
| Standard 14-pin Receptacle with Auto-Remote Sense™ | Connection of feeders and remote controls has never been made easier. |
| ArcReach® Remote Control Technology | Remote control of the power source without a control cord. |
| Polarity Reversing Switch | Efficiently change welding polarity without having to change over cables. |
| Electronic Engine Display | Simultaneously displays fuel level, engine hours, coolant temperature, oil pressure, battery volts, engine rpm, and air pressure. |
ArcReach® Remote Control Technology
| Feature | Benefit |
|---|---|
|
More Welds in Less Time: Increased Productivity |
More welds in less time with more arc-on time and reduced exposure to workplace hazards, automatic return to panel settings, auto-Process Select, and less operator fatigue |
| Better Welds with Less Work: Improved Weld Quality | Better welds with less rework when the operator can precisely set arc amperage or voltage and remote override of Big Blue 500 Pro |
| Fewer Cables to Maintain: Reduced Maintenance | Save time by having fewer cables to maintain while eliminating costly control cord repairs |
| Fleet Compatibility: Improved Flexibility | Fleet compatibility can be used with ArcReach-equipped XMT® and Dimension™ power sources. |
True Blue® 3 Year Warranty
Welder/generator is warranted by Miller for three years, parts and labor. The engine is warranted separately by the engine manufacturer.
The Deutz TD2.9 L4 heavy-duty diesel engine is Tier 4 compliant and includes a 120V block heater and automatic glow plugs. This is a four-cylinder, turbocharged engine with 25-gallon fuel capacity.
View our large selection of stick welders, engine driven welders, welding machines and safety equipment, all available at the best prices online.
Other versions of the Big Blue 600:
Miller Big Blue 600 Air Pak Specifications: |
|
| Industries Interests | Construction Infrastructure Fabrication Maintenance and Repair - Field Operations Work / Service Trucks |
| Carbon Diameter | 1/2 in (12.7 mm) |
| Cold Weather Starting Aids | Engine Block Heater Glow Plugs |
| Current Type | DC |
| Engine Brand | Deutz |
| Engine Compliance | T4F |
| Engine Idle Speed | 1350 RPM |
| Engine Weld Speed | 1800 RPM |
| Fuel Tank Size | 25 Gallon |
| Net Height | 46 in |
| Fuel Type | Diesel |
| Net Length | 69.5 in |
| Horsepower | 65.7 hp |
| Max Open Circuit Voltage | 92 VDC |
| Net Weight | 2040 lbs |
| Weldable Metals | Steel Stainless Steel |
| Net Width | 28.5 in |
| Rated Output | 600 A at 44 V, 60% Duty Cycle 550 A at 43 V, 100% Duty Cycle 500 A at 40 V, 100% Duty Cycle |
| Single Phase Generator Continuous Power | 12000 W |
| Warranty | 3 Years Engine Warranties Miller's True Blue Warranty |
| Single Phase Generator Peak Power | 15000 W |
| Sound Rating | Idle: 71.3 dB / Weld: 78.9 dB |
| Three Phase Generator Continuous Power | 20000 W |
| Three Phase Generator Peak Power | 27000 W |
| Amperage Range | 20 - 600 |
| Portability | Fork Pockets Lift Eye (Standard) Trailer (Optional) |
SHIPPING DIMENSIONS |
|
| Height: | 48.00 Inches |
| Width: | 30.00 Inches |
| Length: | 71.00 Inches |
| Weight: | 2090 Lb(s) 0 Oz |
