Miller Continuum™ 350 Push-Pull MIGRunner Package #951865

Part Numbers: 951865
$25,180.00
$29,080.00* Save $3,900.00

Included with your purchase:

Select your Bundle!
Edit

    Call 1-844-682-0205 or CHAT for more options

    Welding type:

    Mig

    Mig

    Material type:

    Mild Steel

    Mild Steel

    Stainless Steel

    Stainless Steel

    Power supply:

    220V 3 Phase

    220V 3 Phase

    460V

    460V

    • MIG Welding
    • 220V
    • 460V
    • 3-Phase
    • 3-Year Miller Warranty

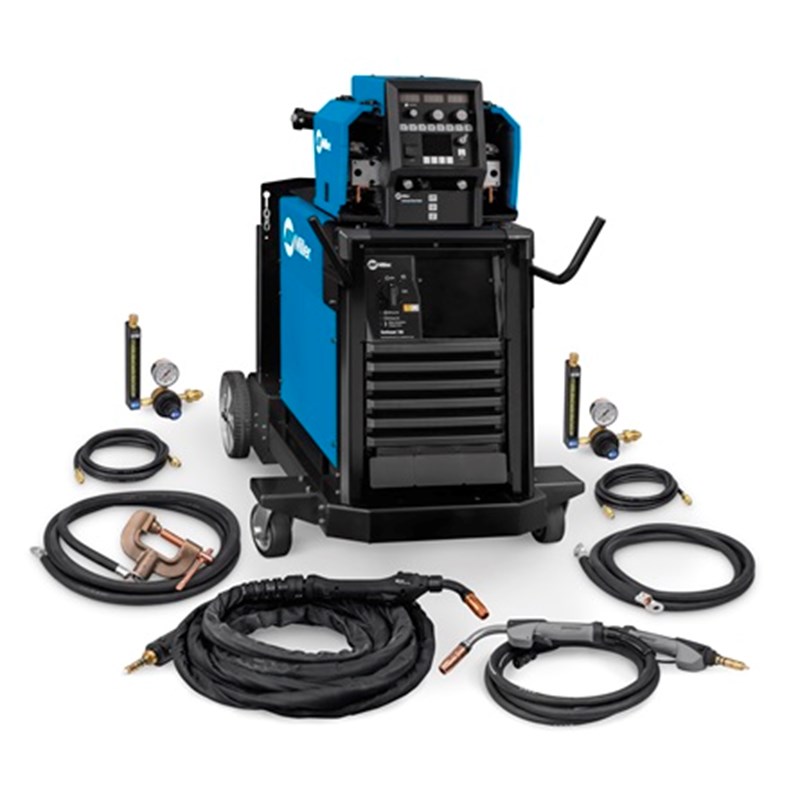

    Miller Continuum™ 350 Push-Pull MIGRunner Package #951865

    A new generation of advanced industrial welding solutions improves productivity through weld quality, ease of use, and system flexibility.

    What's Included:

    • .035/.045 in. U-groove Drive Rolls
    • Industrial MIG 4/0 Kit
    • Cable Hanger
    • 3' Control Cable
    • Running Gear
    • 15' Bernard™ BTB Gun 400A w/Contact Tips
    • 25' XR-Aluma-Pro™ Plus Push-Pull Gun w/Contact Tips
    • .035/.045 in. V-groove Drive Rolls

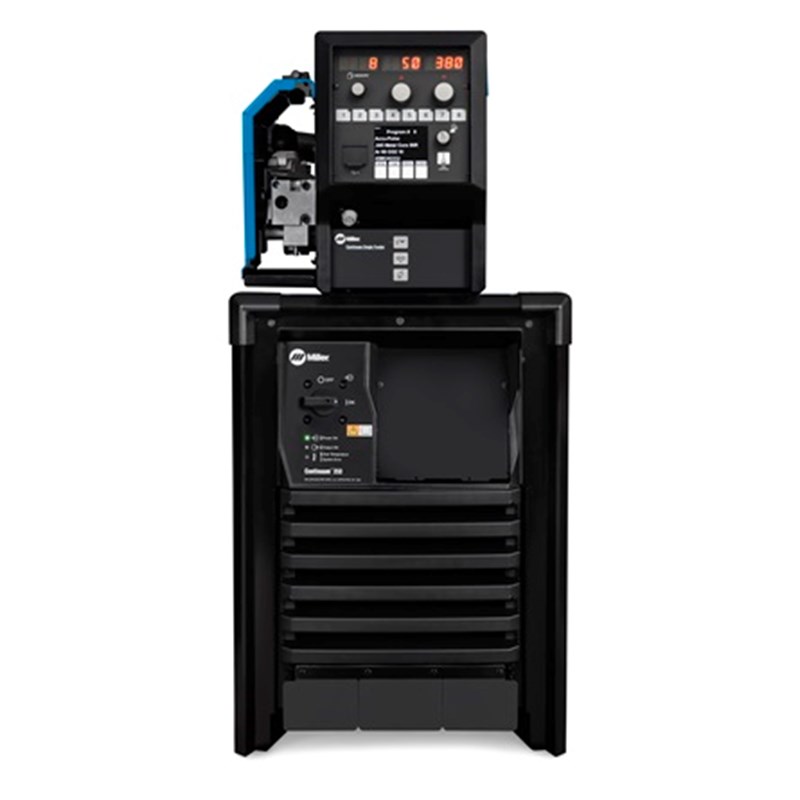

    • Continuum™ 350
    • Continuum Dual Feeder

    Features:

    All-New Power Source Design

    Smart and powerful digital design has the fast response needed to deliver the most stable welding performance for better welding results. Developed as a platform to meet current and future needs with integrated expansion capabilities.

    All-New Feeder Design

    Faster motor response provides the best arc starts with the least amount of spatter Precise feeding operation for stable arc performance.

    Superior Arc Performance

    Improved Accu-Pulse provides less spatter, better arc control, and less heat input. Very forgiving with changes in stick-out Improved MIG performance. Consistently smooth arc starts reduce spatter Improved RMD, designed for thin materials and gap filling with very low spatter New High-Deposition MIG process typically used for thicker material and larger welds. Provides lower heat input and higher deposition rates than standard spray transfer.

    Balanced-Pressure Drive-Roll Design and Tensioners

    Feed wire in its truest and straightest form for better feedability and to extend consumable life.

    Easy Setup and Adjusting with Minimal Training

    8 program/memory buttons USB functionality for updates, cloning, and more Browser-based connection to view and adjust machine parameters, configure machine settings, and ability to set locks and limits.

    Tool-Less Lockable Rotatable Drive

    Allows operator to rotate the drive, eliminate severe bends in the wire feeding path Extends gun-liner life Aids in feeding difficult wires.

    LCD Display

    New user interface makes the system easy to set up and adjust with minimal training. Shows complete words, graphics, and numeric values.

    Adaptable to a Variety of Weld Cell Configurations

    • Flexible user interface location (power source, feeder, remote operator interface)
    • Information management systems: Insight Core (standard) and Insight Centerpoint (optional)
    • Easily add process and programs
    • Wire feeder is easily configurable for standard spool sizes, 60-pound spools, or bulk-feeding systems
    Check out all welding machines including Mig Welders, Tig Welders, and Stick Welders.

    Miller Continuum™ 350 Specifications:

    Industries Interests Construction equipment
    Automotive components
    Recreational vehicles
    Farm machinery
    Office furniture
    Mining machinery
    Industrial fabrication
    Processes Advanced MIG processes:
    Accu-Pulse® pulsed MIG (GMAW-P)
    Versa-Pulse™
    RMD®
    MIG (GMAW)
    High-deposition MIG (GMAW)
    Flux-cored (FCAW)
    Air carbon arc (CAC-A)
    350: Rated for 1/4-inch carbons
    500: Rated for 3/8-inch carbons
    Wire Type and
    Diameter Capacity
    .030–1/16 in. (0.8–1.6 mm) aluminum wire
    Requires gun wire kit 230708 to run 1/16 in. (1.6 mm) wire
    Current Type DC
    Input Voltage/Phase Auto-Line™ 230–575 V
    3-phase, 50/60 Hz
    Input Hz 50 / 60 Hz
    Max Open Circuit Voltage 75 VDC
    Amperage Range 20–400 A, 10–44 V
    Rated Output 350: 350 A at 100% duty cycle
    500: 500 A at 100% duty cycle
    Warranty 3 Years
    Miller's True Blue Warranty

    SHIPPING DIMENSIONS

    Height: 36.00 Inches
    Width: 28.00 Inches
    Length: 48.00 Inches
    Weight: 260 Lb(s) 0 Oz
