REPLACED BY #088584

Hypertherm Powermax45 XP w/ 50' Machine Torch, CPC & Serial Ports #088120

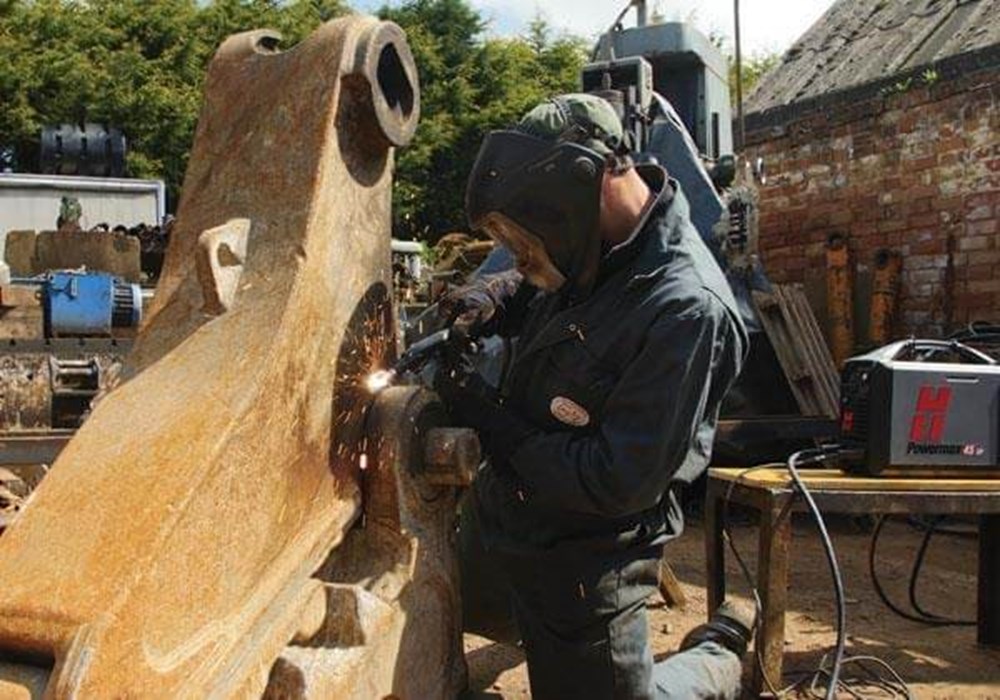

Hypertherm Powermax45 XP #088120 being used in the field

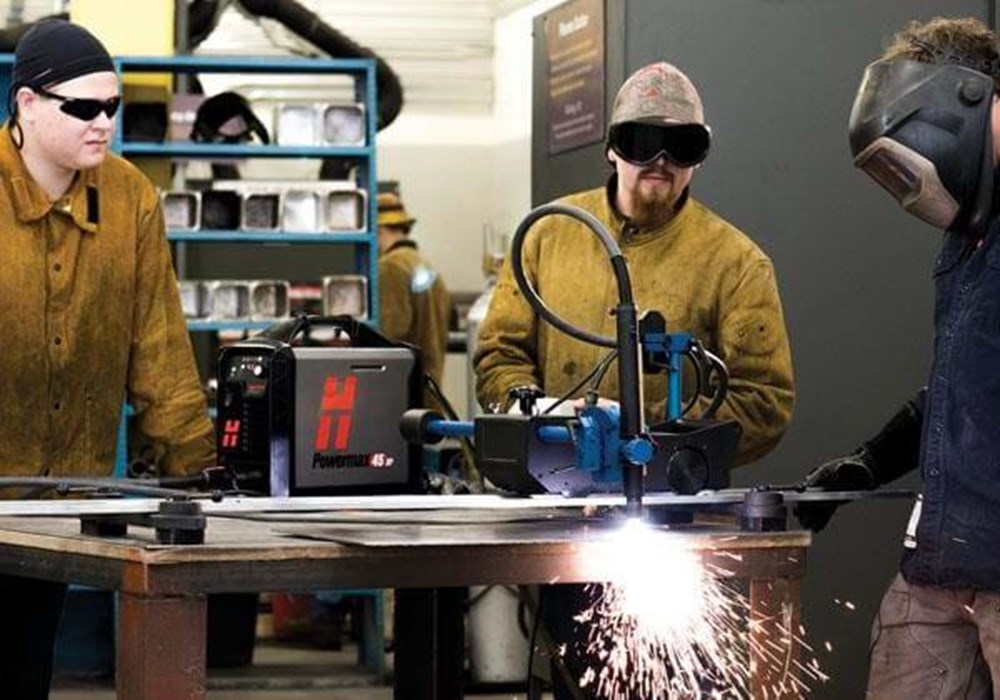

Hypertherm Powermax45 XP #088120 machine cutting

Hypertherm Powermax45 XP w/ 50' Machine Torch, CPC & Serial Ports (220V CSA) #088120

Part Number: 088120

UPC: 662310367831

This Item Has Been Discontinued and has been replaced by Hypertherm Powermax45 SYNC Plasma Cutter w/ 25' Machine Torch, CPC & Serial Ports #088584 - Level up today!

Qualifies for Welder's Summer Sale

Features
Specs
Documents
Videos
Consumables
FAQS

220V Single Phase
1/2" Cut Capacity
180° Machine Torch
50' Torch Leads
CPC & Serial Ports
3-Year Power Warranty
First Time Student Rebate

Hypertherm Powermax45 XP #088120 Machine System CPC/Serial 1/0 Cables 50'

Powermax45 XP Plasma Cutter — What A Portable CNC Plasma Cutter Should Be

Hypertherm has yet to disappoint us, and the Powermax45 XP is no exception. The successor to the Powermax45, the Powermax45 XP is our #1 SELLING PLASMA CUTTER OF ALL TIME. Get ready to slice through mild steel, stainless steel and aluminum with unbeatable, effortless ease.

The Powermax45 XP is the machine you've been waiting for. Gouge, cut, shape and mark metals with incredible precision and enjoy up to 70% more power than comparably sized units. Order online or pick up a Powermax45 XP at your nearest Welders Supply and say hello to your upgraded standard for high-performance plasma cutters.

The Powermax45 XP is Easy to use with a versatile design

Small size and lightweight provides exceptional portability for a 16 mm (5/8") rated cutting system.
Handheld and mechanized usage with CNC interface and FastConnect™ torch connection.
Patented drag-cutting technology makes the Powermax45 XP easy to use – even for first-time operators.
Tackle different jobs with multiple user-friendly torch and consumable styles.
No need to change the air pressure. Smart Sense™ technology ensures your machine settings are always accurate.
Mark, score and make precision gouges with new low amp process.

The Hypertherm Powermax45 XP = Maximum productivity

Finish jobs faster with cut speeds one and a half times greater than oxyfuel on 6 mm (1/4") mild steel.
Spend less time on grinding and edge preparation due to superior cut and gouge quality.
Fast change out of consumables using the new torch disables switch feature.

Rugged and Reliable Power at Your Fingertips

Duramax® Lock torches are designed for high-impact and heat resistance.
SpringStart™ technology ensures consistent starting and a more reliable torch.
Hypertherm Certified™ reliability ensures performance in the most demanding environment.

Powermax45 XP at A Glance

5/8” (16mm) rated cutting capability (mild steel, stainless steel, aluminum)
Duramax® Lock torch with disable switch for fast and easy replacement of consumables.
CNC interface and FastConnect™ torch connection
Smart Sense™ automatically monitors and adjusts air pressure for maximum performance
Consumables available for fine feature cutting, extended reach cutting, gouging, precision gouging, marking

Included With This Machine System Package (#088120):

The Hypertherm Powermax45 XP package 088120 includes the Powermax45 XP CSA Machine System with CPC port & Serial Ports, I/O Cables 50 ft. leads. All components in this package are fully backed by Hypertherm’s 3-year warranty (Powermax) and 1-year coverage on torch and lead. Register your Hypertherm Powermax45 XP package for safety, education and service support.

HYPERTHERM Powermax45 XP CONSUMABLES AND KITS

Stock up on Powermax45 XP consumables with the handheld CSA consumable kit or essential handheld consumables kit. For a compatible torch, see the Hypertherm® 45 Amp Duramax™ Lock Plasma Torch.

Hypertherm Powermax45 XP Error Codes and Troubleshooting

Additional Error Codes and Troubleshooting for the Powermax45 XP

Cut Chart for Powermax45 XP

What sets the Powermax45 XP apart from the Powermax45?

The new Powermax45 XP improves upon the Powermax45 in both big and small ways. The end result is a finely-tuned, highly versatile piece of machinery equally suited to both the seasoned pro and the novice or hobbyist. And with more power at your disposal, you’ll work faster and have better results.

Shop all Hypertherm products and accessories or browse plasma cutting consumables and safety equipment available online at Welders Supply.

All Hypertherm Powermax45 XP Models
	Power Supply Only	Handheld Torch Included	Machine Torch Included
Handheld Only		088126 75° torch, 20' lead (460V) 088112 75° torch, 25' lead (220V) 088114 75° torch, 50' lead (220V) 088128 75° torch, 50' lead (460V)
CPC Port	088104 power supply only (220V) 088110 power supply only (460V)	088113 75° torch, 20' lead (220V) 088127 75° torch, 20' lead (460V) 088116 75° torch, 25' lead (220V) 088115 75° torch, 50' lead (220V) 088129 75° torch, 50' lead (460V) 088124 75° & 180° torch, 20' lead (220V) 088123 75° & 180° torch, 25' lead (220V)	088121 180° torch, 25' lead (220V) 088117 180° torch, 35' lead & remote (220V) 088122 180° torch, 50' lead (220V) 088118 180° torch, 50' lead & remote (220V) 088124 75° & 180° torch, 20' lead (220V) 088123 75 & 180° torch, 25' lead (220V)
CPC & Serial Port	088105 power supply only (220V) 088111 power supply only (460V)		088119 180° torch, 25' lead (220V) 088120 180° torch, 50' lead (220V)

Compare all Hypertherm Powermax45 XP Plasma Cutters

Powermax 45XP Plasma Cutter #088120 - Specifications
Input voltages (± 10%)	CSA	200 – 240 V, 1-PH, 50-60 Hz 480 V, 3-PH, 50-60 Hz
Input voltages (± 10%)	CE/CCC	230 V, 1-PH, 50-60 Hz 400 V, 3-PH, 50-60 Hz
Input Current @ 5.95 kW	CSA	200/240 V, 1-PH, 39/32 A 480 V, 3-PH, 9.4 A
Input Current @ 5.95 kW	CE	230 V, 1-PH, 33 A 400 V, 3-PH, 10 A
Output current	10 - 45 A
Rated output voltage	145 VDC
Duty cycle @ 40°C (104°F)	CSA	50% @ 45 A, 200 – 240 V, 1-PH 60% @ 41 A, 200 – 240 V, 1-PH 100% @ 32 A, 200 – 240 V, 1-PH 50% @ 45 A, 480 V, 3-PH 60% @ 41 A, 480 V, 3-PH 100% @ 32 A, 480 V, 3-PH
Duty cycle @ 40°C (104°F)	CE/CCC	50% @ 45 A, 230 V, 1-PH 60% @ 41 A, 230 V, 1-PH 100% @ 32 A, 230 V, 1-PH 50 % @ 45 A, 400 V, 3-PH 60% @ 41 A, 400 V, 3-PH 100% @32 A, 400 V, 3-PH
Open circuit voltage (OCV)	275 VDC (200-240 V, CSA/CE/CCC and 480 V, CSA) 265 VDC (400 V CE/CCC)
Cuttable metals	Mild steel, stainless steel, aluminum
Weight with 6.1 m (20') torch	CSA	14 kg (31 lbs)
Weight with 6.1 m (20') torch	CE	15 kg (33 lbs)
Gas Supply	Cutting: air (clean, dry and oil-free), nitrogen, F5 Gouging: air (clean, dry and oil-free), nitrogen, F5 Marking: air (clean, dry and oil-free), argon
Recommended gas inlet flow rate / pressure	188 l/min (400 scfh; 6 scfm) @ 90 psi (5.9 bar)
Input power cable length	3 m (10')
Power supply type	Inverter - IGBT
Engine drive requirement	12.5 kVA (10kW) for full 45 A output
Electrical efficiency	88%
Recyclability	100%
Certifications	CSA certified for use in Americas and Asia, except China. CCC for use in China. CE, REM, GOST-TR, ukrSEPRO, and Serbian AAA for use in Europe, Austrailia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted
Warranty	Power supply: 3-year Torch: 1-year

SHIPPING DIMENSIONS
Height:	14.10 Inches
Width:	6.80 Inches
Length:	17.40 Inches
Weight:	31 Lb(s) 0 Oz

Hypertherm Powermax 45 XP SetupHypertherm Powermax 45 XP Marking & GougingHypertherm 45 XP Unboxing

Consumables

W850-115 Metabo Angle Grinder #601232420

Product Questions and Answers

How to install a line-disconnect switch:

Line-disconnect switch.
Use a line-disconnect switch for each plasma power supply to allow the operator to turn off the incoming power quickly in an emergency.
Place the switch.
Place the switch so that it is easily accesible to the operator. Installation must be performed by a licensed electrician.
The interrupt level.
The interrupt level of the switch must equal or exceed the continuous rating of the fuses/breakers.
