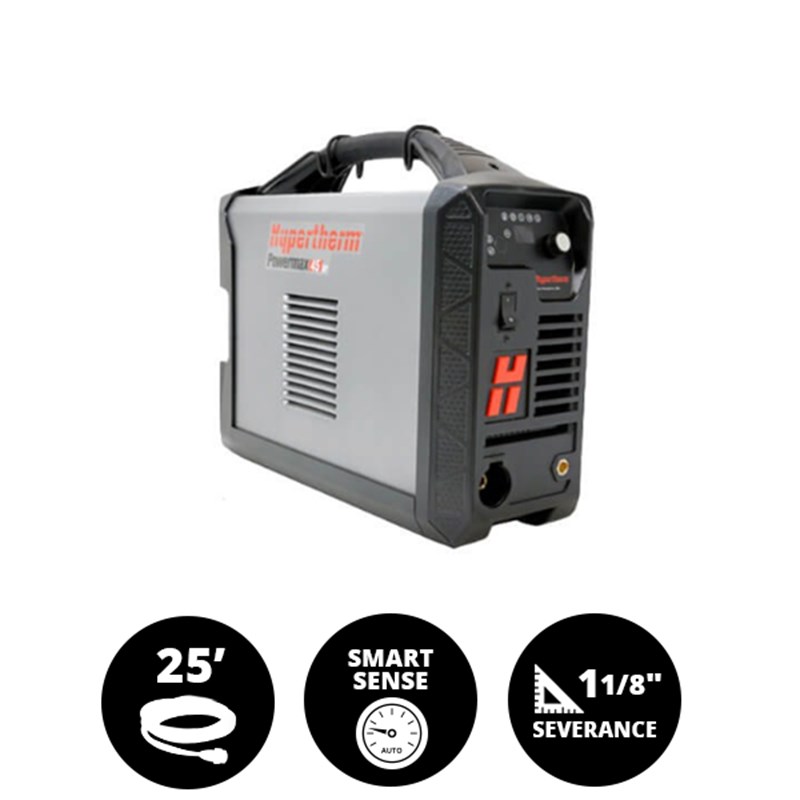

Hypertherm Powermax45 XP #088119 Machine System CPC/Serial 1/0 Cables 25'

Hypertherm Powermax45 XP #088119
$2,725.00 $3,075.00 Reduced Price You Save $350.00
Product Number: 088119
QTY:
Financing AVAILABLE!

Which Hypertherm Powermax 45XP Machine is right for me?

&nbsp Hypertherm Powermax 45 XP 088112 Hypertherm Powermax 45 XP 088114 Hypertherm Powermax 45 XP 088113 Hypertherm Powermax 45 XP 088124 Hypertherm Powermax 45 XP 088015 Hypertherm Powermax 45 XP 088123 Hypertherm Powermax 45 XP 088121 Hypertherm Powermax 45 XP 088016 Hypertherm Powermax 45 XP 088117 Hypertherm Powermax 45 XP 088122 Hypertherm Powermax 45 XP 088118 Hypertherm Powermax 45 XP 088123 CPC port not included but can be installed using the upgrade kit 428653 CPC port not included but can be installed using the upgrade kit 428653 This unit includes a CPC Port This unit includes a CPC Port Includes extra 15 degree torch This unit includes a CPC Port This unit includes a CPC Port Includes both a machine torch and a 75 degree hand torch This unit includes a CPC Port This unit includes a CPC Port Includes on/off remote switch This unit includes a CPC Port Includes on/off remote switch This unit includes a CPC Port This unit includes a CPC Port Includes on/off remote switch This unit includes a CPC Port Includes both a machine torch and a 75 degree hand torch 20’ FastConnect™ Torch 50’ FastConnect™ Torch 20’ FastConnect™ Torch 20’ FastConnect™ Torch 50’ FastConnect™ Torch 25’ FastConnect™ Torch 20’ FastConnect™ Torch 25’ FastConnect™ Torch 35’ FastConnect™ Torch 50’ FastConnect™ Torch 50’ FastConnect™ Torch 25’ FastConnect™ Torch Hypertherm Powermax 45 XP 088112 Hypertherm Powermax 45 XP 088114 Hypertherm Powermax 45 XP 088113 Hypertherm Powermax 45 XP 088124 Hypertherm Powermax 45 XP 088015 Hypertherm Powermax 45 XP 088123 Hypertherm Powermax 45 XP 088121 Hypertherm Powermax 45 XP 088016 Hypertherm Powermax 45 XP 088117 Hypertherm Powermax 45 XP 088122 Hypertherm Powermax 45 XP 088118 Hypertherm Powermax 45 XP 088123 CPC port not included but can be installed using the upgrade kit 428653 CPC port not included but can be installed using the upgrade kit 428653 This unit includes a CPC Port This unit includes a CPC Port Includes extra 15 degree torch This unit includes a CPC Port This unit includes a CPC Port Includes both a machine torch and a 75 degree hand torch This unit includes a CPC Port This unit includes a CPC Port Includes on/off remote switch This unit includes a CPC Port Includes on/off remote switch This unit includes a CPC Port This unit includes a CPC Port Includes on/off remote switch This unit includes a CPC Port Includes both a machine torch and a 75 degree hand torch 20’ FastConnect™ Torch 50’ FastConnect™ Torch 20’ FastConnect™ Torch 20’ FastConnect™ Torch 50’ FastConnect™ Torch 25’ FastConnect™ Torch 20’ FastConnect™ Torch 25’ FastConnect™ Torch 35’ FastConnect™ Torch 50’ FastConnect™ Torch 50’ FastConnect™ Torch 25’ FastConnect™ Torch

Hypertherm Powermax45 XP #088119 Machine System CPC/Serial 1/0 Cables 25'

Powermax 45XP Plasma Cutter—What A Portable CNC Plasma Cutter Should Be

Hypertherm has yet to disappoint us, and the Powermax 45XP is no exception.  The successor to the Powermax 45, our number one selling plasma cutter of all time, the 45XP effortlessly slices through mild steel, stainless steel, and aluminum. It’s the perfect tool for gouging, cutting, shaping and marking metals. And with as much as 70% more power than comparably sized units from competitors, it sets a new standard for portable plasma cutters.

Easy-to-use with a versatile design

  • Small size and lightweight provides exceptional portability for a 16 mm (5/8") rated cutting system.
  • Handheld and mechanized usage with CNC interface and FastConnect™ torch connection.
  • Patented drag-cutting technology makes it easy to use – even for first-time operators.
  • Tackle different jobs with multiple, easy-to-use torch and consumable styles.
  • No need to change the air pressure. Smart Sense™ technology ensures that it is always correctly set.
  • Mark, score and make precision gouges with new low amp process.

Maximum productivity

  • Finish jobs faster with cut speeds one and a half times greater than oxyfuel on 6 mm (1/4") mild steel.
  • Spend less time on grinding and edge preparation due to superior cut and gouge quality.
  • Fast change out of consumables using the new torch disables switch feature.

Rugged and reliable

  • Duramax® Lock torches are designed for high-impact and heat resistance.
  • SpringStart™ technology ensures consistent starting and a more reliable torch.
  • Hypertherm Certified™ reliability ensures performance in the most demanding environment.



Powermax 45 XP at A Glance

  • 5/8” (16mm) rated cutting capability (mild steel, stainless steel, aluminum)
  • Duramax® Lock torch with disable switch for fast and easy replacement of consumables.
  • CNC interface and FastConnect™ torch connection
  • Smart Sense™ automatically monitors and adjusts air pressure for maximum performance
  • Consumables available for fine feature cutting, extended reach cutting, gouging, precision gouging, marking

The new Powermax 45XP improves upon the Powermax 45 in both big and small ways. The end result is a finely-tuned, highly versatile piece of machinery equally suited to both the seasoned pro and the novice or hobbyist. And with more power at your disposal, you’ll work faster and have better results.

What sets the Powermax 45 XP apart from the Powermax 45?

  Powermax 45 Powermax 45 XP
Output current 20-45 10-45
kW output @max power 5.95 6.5
Cut capacity  ½” (12mm) 5/8” (16mm)
Severance 1” (25mm) 1 1/8” (29mm)
Auto gas adjustment no yes
Easily accessed, protected air filter regulator no yes
Number of torch options 2 11
Consumables styles 4  7
Machine interface options standard CPC port Optional CPC port with 5 position selectable voltage divider card or serial port via RS-485 communication
F5 gas operation no yes
Precision gouging capability no yes

Included With This Machine System Package (#088119):

The Hypertherm Powermax 45XP package 088119 includes the Powermax 45XP CSA Machine System with CPC port & Serial Ports, I/O Cables 25 ft. (7.6 m) leads.  All components in this package are fully backed by Hypertherm’s 3-year warranty (Powermax) and 1-year coverage on torch and lead.

HYPERTHERM Powermax 45 CONSUMABLES AND KITS

Stock up on consumables with the Powermax 45 handheld CSA consumable kit or Powermax 45 XP essential handheld consumables kit.

Shop all Plasma Cutters, CNC Plasma Cutters and Plasma Cutting Consumable Parts and Accessories on sale at the lowest price from Welders Supply.

Input voltages
(± 10%)

CSA

200 – 240 V, 1-PH, 50-60 Hz
480 V, 3-PH, 50-60 Hz

CE/CCC

230 V, 1-PH, 50-60 Hz
400 V, 3-PH, 50-60 Hz

Input Current @ 5.95 kW

CSA

200/240 V, 1-PH, 39/32 A
480 V, 3-PH, 9.4 A

CE

230 V, 1-PH, 33 A
400 V, 3-PH, 10 A

Output current

10 - 45 A

Rated output voltage

145 VDC

Duty cycle @ 40°C (104°F)

CSA

50% @ 45 A, 200 – 240 V, 1-PH
60% @ 41 A, 200 – 240 V, 1-PH
100% @ 32 A, 200 – 240 V, 1-PH
50% @ 45 A, 480 V, 3-PH
60% @ 41 A, 480 V, 3-PH
100% @ 32 A, 480 V, 3-PH

CE/CCC

50% @ 45 A, 230 V, 1-PH
60% @ 41 A, 230 V, 1-PH
100% @ 32 A, 230 V, 1-PH
50 % @ 45 A, 400 V, 3-PH
60% @ 41 A, 400 V, 3-PH
100% @32 A, 400 V, 3-PH

Open circuit voltage (OCV)

275 VDC (200-240 V, CSA/CE/CCC and 480 V, CSA)
265 VDC (400 V CE/CCC)

Dimensions with handles

442 mm (17.4") D; 173 mm (6.75") W;
357 mm (14.1") H

Weight with 6.1 m (20') torch

CSA

14 kg (31 lbs)

CE

15 kg (33 lbs)

Gas Supply

Cutting: air (clean, dry and oil-free), nitrogen, F5
Gouging: air (clean, dry and oil-free), nitrogen, F5
Marking: air (clean, dry and oil-free), argon

Recommended gas inlet
flow rate / pressure

188 l/min (400 scfh; 6 scfm) @ 90 psi (5.9 bar)

Input power cable length

3 m (10')

Power supply type

Inverter - IGBT

Engine drive requirement 12.5 kVA (10kW) for full 45 A output
Electrical efficiency 88%
Recyclability 100%
Certifications CSA certified for use in Americas and Asia, except  China. CCC for use in China. CE, REM, GOST-TR, ukrSEPRO, and Serbian AAA for use in Europe, Austrailia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted
Warranty

Power supply: 3-year
Torch: 1-year

Hypertherm Powermax 45 XP Error Codes and Troubleshooting

Hypertherm Powermax 45 XP Error and Fault Codes

Additional Error Codes and Troubleshooting for the Powermax 45 XP

Cut Chart for Powermax 45 XP

Hypertherm Powermax 45 XP Setup

Hypertherm Powermax 45 XP First Look

Hypertherm Powermax 45 XP Marking & Gouging



Product Questions and Answers


Q - What uses is the Powermax45 XP not good for? A - The Powermax45 XP is not recommended for use in max removal gouging. Try the Powermax65 for that.
Q - What applications is the Powermax 45 XP good for? A - The Hypertherm Powermax45XP is approved for drag cutting, fine feature cutting, max control gouging, extended reach cutting, flush cutting, mechanized cutting, extended reach gouging, marking, and precision gouging.
