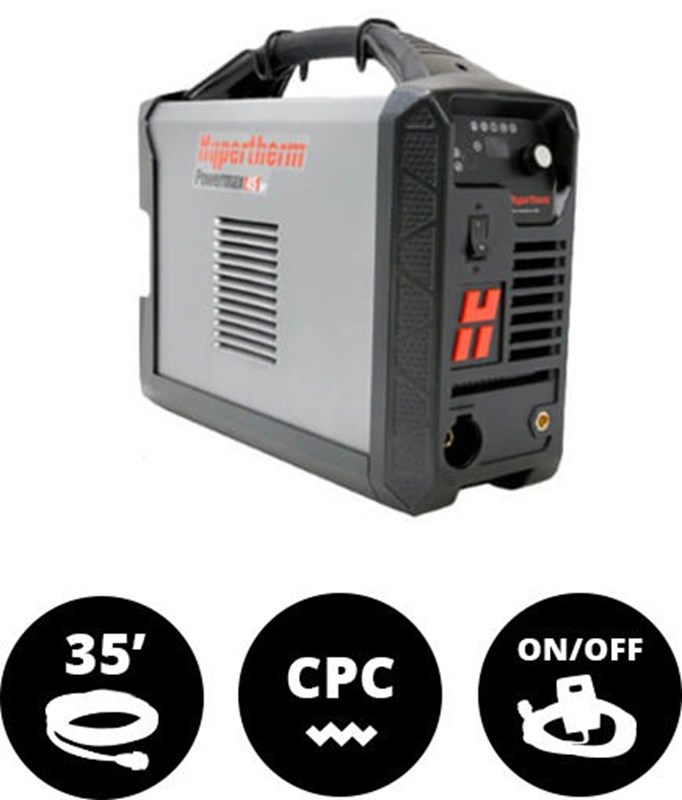

| Hypertherm Powermax 45 XP # Specifications |
|---|
|
Input voltages
(± 10%)
|
CSA
|
200 – 240 V, 1-PH, 50-60 Hz
480 V, 3-PH, 50-60 Hz
|
|
CE/CCC
|
230 V, 1-PH, 50-60 Hz
400 V, 3-PH, 50-60 Hz
|
|
Input Current @ 5.95 kW
|
CSA
|
200/240 V, 1-PH, 39/32 A
480 V, 3-PH, 9.4 A
|
|
CE
|
230 V, 1-PH, 33 A
400 V, 3-PH, 10 A
|
|
Output current
|
10 - 45 A
|
|
Rated output voltage
|
145 VDC
|
|
Duty cycle @ 40°C (104°F)
|
CSA
|
50% @ 45 A, 200 – 240 V, 1-PH
60% @ 41 A, 200 – 240 V, 1-PH
100% @ 32 A, 200 – 240 V, 1-PH
50% @ 45 A, 480 V, 3-PH
60% @ 41 A, 480 V, 3-PH
100% @ 32 A, 480 V, 3-PH
|
|
CE/CCC
|
50% @ 45 A, 230 V, 1-PH
60% @ 41 A, 230 V, 1-PH
100% @ 32 A, 230 V, 1-PH
50 % @ 45 A, 400 V, 3-PH
60% @ 41 A, 400 V, 3-PH
100% @32 A, 400 V, 3-PH
|
|
Open circuit voltage (OCV)
|
275 VDC (200-240 V, CSA/CE/CCC and 480 V, CSA)
265 VDC (400 V CE/CCC)
|
|
Dimensions with handles
|
442 mm (17.4") D; 173 mm (6.75") W;
357 mm (14.1") H
|
|
Weight with 6.1 m (20') torch
|
CSA
|
14 kg (31 lbs)
|
|
CE
|
15 kg (33 lbs)
|
|
Gas Supply
|
Cutting: air (clean, dry and oil-free), nitrogen, F5
Gouging: air (clean, dry and oil-free), nitrogen, F5
Marking: air (clean, dry and oil-free), argon
|
|
Recommended gas inlet
flow rate / pressure
|
188 l/min (400 scfh; 6 scfm) @ 90 psi (5.9 bar)
|
|
Input power cable length
|
3 m (10')
|
|
Power supply type
|
Inverter - IGBT
|
|
Cuttable metals
|
Aluminum
Mild Steel
Stainless Steel
|
|
Cut capacity
|
1/2"
|
| Engine drive requirement |
12.5 kVA (10kW) for full 45 A output |
| Electrical efficiency |
88% |
| Recyclability |
100% |
| Certifications |
CSA certified for use in Americas and Asia, except China. CCC for use in China. CE, REM, GOST-TR, ukrSEPRO, and Serbian AAA for use in Europe, Austrailia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted |
| Warranty |
Power supply: 3-year
Torch: 1-year
|
