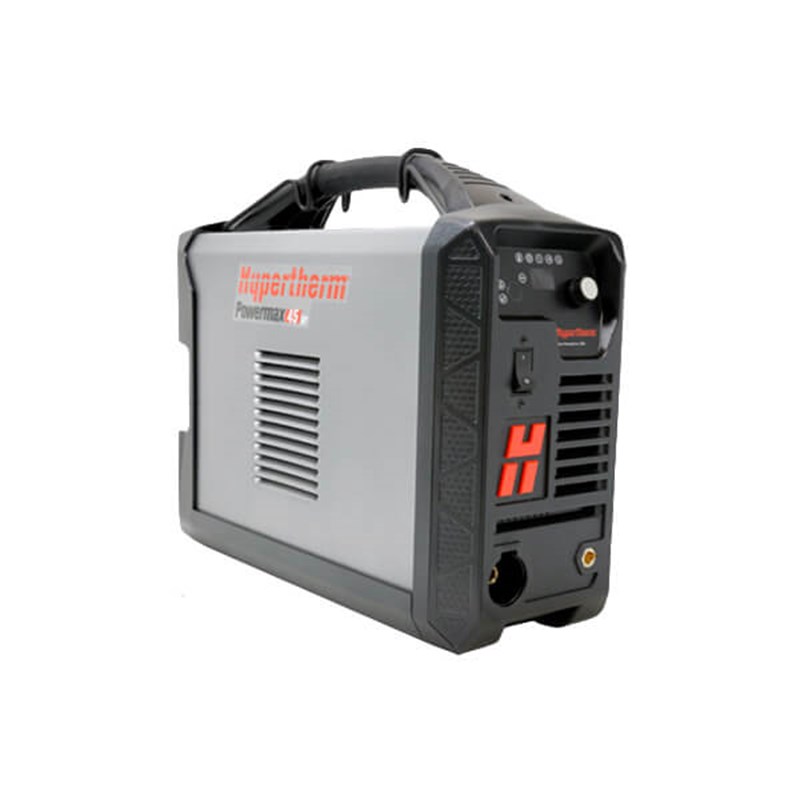

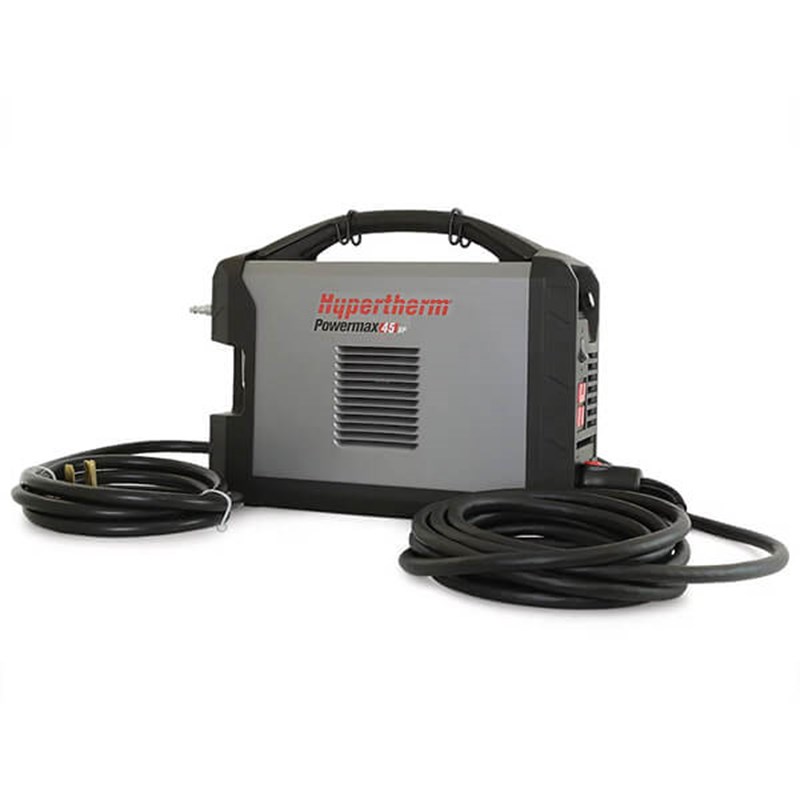

Hypertherm Powermax 45 XP #088123 Machine System CPC 180M & 75H Torches 25' Leads

Hypertherm Powermax45 XP #088123 Machine System CPC 180M & 75H Torches 25
$2,976.50 $3,456.50 Reduced Price You Save $480.00
Product Number: 088123

CALL or CHAT for more options

1 used from $1804 | Add consumables

See below to find out which version of the Hypertherm Powermax 45 XP is right for you! This version 180M and 75H torches and a 25 ft cable and has a CPC port. Free shipping to lower 48 states!

Bundle Options (check all that apply):

CALL or CHAT for more options

1 used from $1804 | Add consumables

See below to find out which version of the Hypertherm Powermax 45 XP is right for you! This version 180M and 75H torches and a 25 ft cable and has a CPC port. Free shipping to lower 48 states!

Which Hypertherm Powermax 45XP Machine is right for me?

&nbsp Hypertherm Powermax 45 XP 088112 Hypertherm Powermax 45 XP 088114 Hypertherm Powermax 45 XP 088113 Hypertherm Powermax 45 XP 088124 Hypertherm Powermax 45 XP 088015 Hypertherm Powermax 45 XP 088123 Hypertherm Powermax 45 XP 088121 Hypertherm Powermax 45 XP 088016 Hypertherm Powermax 45 XP 088117 Hypertherm Powermax 45 XP 088122 Hypertherm Powermax 45 XP 088118 Hypertherm Powermax 45 XP 088123 CPC port not included but can be installed using the upgrade kit 428653 CPC port not included but can be installed using the upgrade kit 428653 This unit includes a CPC Port This unit includes a CPC Port Includes extra 15 degree torch This unit includes a CPC Port This unit includes a CPC Port Includes both a machine torch and a 75 degree hand torch This unit includes a CPC Port This unit includes a CPC Port Includes on/off remote switch This unit includes a CPC Port Includes on/off remote switch This unit includes a CPC Port This unit includes a CPC Port Includes on/off remote switch This unit includes a CPC Port Includes both a machine torch and a 75 degree hand torch 20’ FastConnect™ Torch 50’ FastConnect™ Torch 20’ FastConnect™ Torch 20’ FastConnect™ Torch 50’ FastConnect™ Torch 25’ FastConnect™ Torch 20’ FastConnect™ Torch 25’ FastConnect™ Torch 35’ FastConnect™ Torch 50’ FastConnect™ Torch 50’ FastConnect™ Torch 25’ FastConnect™ Torch Hypertherm Powermax 45 XP 088112 Hypertherm Powermax 45 XP 088114 Hypertherm Powermax 45 XP 088113 Hypertherm Powermax 45 XP 088124 Hypertherm Powermax 45 XP 088015 Hypertherm Powermax 45 XP 088123 Hypertherm Powermax 45 XP 088121 Hypertherm Powermax 45 XP 088016 Hypertherm Powermax 45 XP 088117 Hypertherm Powermax 45 XP 088122 Hypertherm Powermax 45 XP 088118 Hypertherm Powermax 45 XP 088123 CPC port not included but can be installed using the upgrade kit 428653 CPC port not included but can be installed using the upgrade kit 428653 This unit includes a CPC Port This unit includes a CPC Port Includes extra 15 degree torch This unit includes a CPC Port This unit includes a CPC Port Includes both a machine torch and a 75 degree hand torch This unit includes a CPC Port This unit includes a CPC Port Includes on/off remote switch This unit includes a CPC Port Includes on/off remote switch This unit includes a CPC Port This unit includes a CPC Port Includes on/off remote switch This unit includes a CPC Port Includes both a machine torch and a 75 degree hand torch 20’ FastConnect™ Torch 50’ FastConnect™ Torch 20’ FastConnect™ Torch 20’ FastConnect™ Torch 50’ FastConnect™ Torch 25’ FastConnect™ Torch 20’ FastConnect™ Torch 25’ FastConnect™ Torch 35’ FastConnect™ Torch 50’ FastConnect™ Torch 50’ FastConnect™ Torch 25’ FastConnect™ Torch

Hypertherm Powermax45 XP #088123 Machine System CPC 180M & 75H Torches 25' Leads

For all those in awe of the Hypertherm Powermax 45, it’s hard to imagine anything better. Until now. With the Powermax 45 XP, Hypertherm created a monster. For starters, it packs as much as 70% more power than competitive systems, all in the same small footprint as the 45.  It slices through 5/8” thick steel without breaking a sweat and has the oomph to sever steel nearly an inch thick. Couple that muscle with Hypertherm’s Smart Sense™ technology, which constantly monitors and regulates airflow for smooth cuts, and this one goes to the top of everyone’s short list.

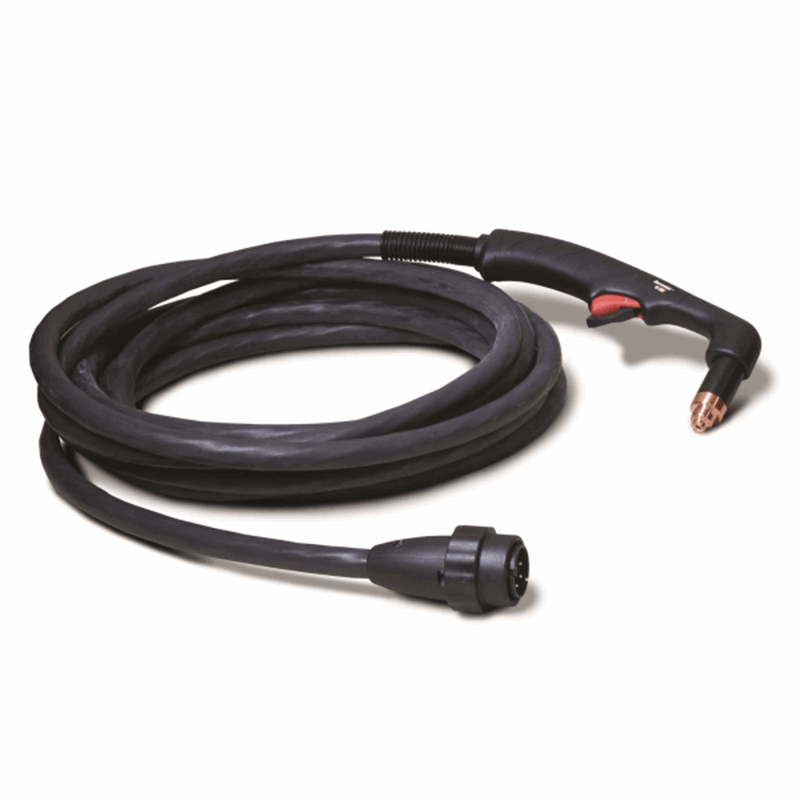

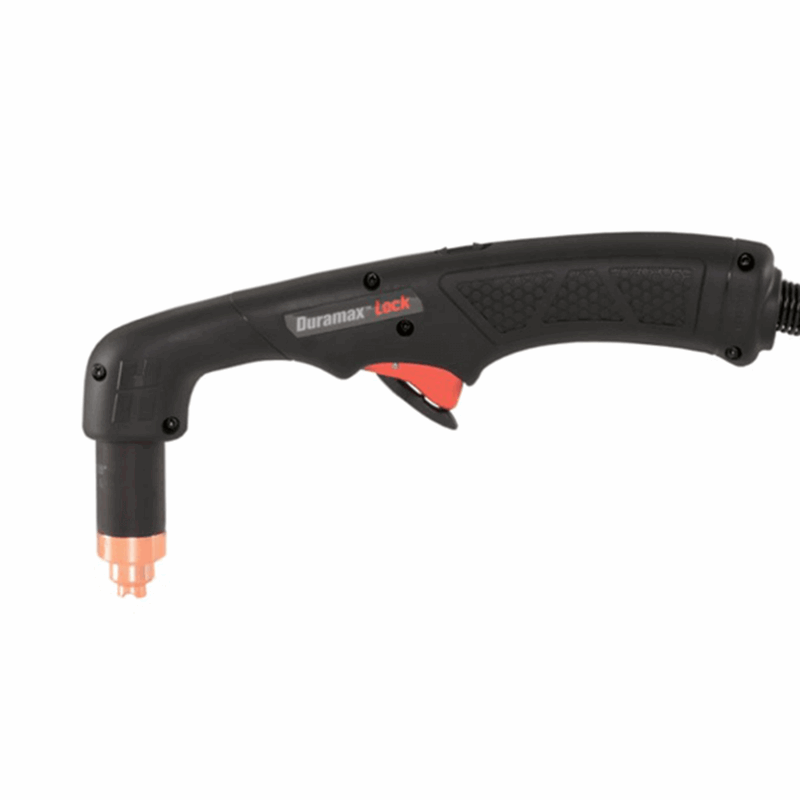

The Powermax 45 XP features the Duramax® Lock torch with disable switch for quick and easy change-outs of consumables. You also get their FastConnect™ torch connection for quick torch change-outs. This package comes with a 180M and 75H torch, so you’ll be all set to see just how quick and easy it is to change torches is with this system. Equipped with a CPC port and a 5-position selectable voltage divider card, integration with CNC machines has never been easier. The 45 XP is no one-trick pony, either. Hypertherm offers a range of consumables as varied as the jobs you run across.

Hypertherm Consumables available for:

  • Fine feature cutting
  • Extended reach cutting
  • Gouging
  • Precision gouging
  • Marking

Included With This Package (088123)

This Powermax 45 XP bundles comes with 180M and 75H torches and a 25' cable. All components in this package are fully backed by Hypertherm’s 3-year warranty (Powermax) and 1-year coverage on torch and lead.

Powermax 45 vs Powermax 45 XP: What's the Difference?

Powermax 45

Output current: 20-45

kW output @max power: 5.95

Cut capacity: ½” (12mm)

Severance: 1” (25mm)

Auto gas adjustment: no

Easily accessed, protected
air filter regulator:
no

Number of torch options: 2

Consumables styles: 4

Machine interface options: standard CPC port

F5 gas operation: no

Precision gouging capability: no

Powermax 45 XP

Output current: 10-45

kW output @max power: 6.5

Cut capacity: 5/8” (16mm)

Severance: 1 1/8” (29mm)

Auto gas adjustment: yes

Easily accessed, protected
air filter regulator:
yes

Number of torch options: 11

Consumables styles: 7

Machine interface options: Optional CPC*

F5 gas operation: yes

Precision gouging capability: yes

*5 position selectable voltage divider card or serial port via RS-485 communication

HYPERTHERM POWERMAX45 CONSUMABLES AND KITS

Stock up on consumables with the Powermax45 handheld CSA consumable kit or Powermax 45 XP essential handheld consumables kit.

Shop all Plasma Cutters and Plasma Cutting Consumable Parts and Accessories on sale at the lowest price from Welders Supply.
We also have a selection of used welders & equipment to choose from.

Other versions of the Powermax 45:

View more Hypertherm Powermax Plasma cuttersView all Hypertherm Powermax Plasma Cutters

Hypertherm Powermax 45 XP Specifications

Input voltages
(± 10%)

CSA:
200 – 240 V, 1-PH, 50-60 Hz
480 V, 3-PH, 50-60 Hz

CE/CCC:
230 V, 1-PH, 50-60 Hz
400 V, 3-PH, 50-60 Hz

Input Current @ 5.95 kW

CSA:
200/240 V, 1-PH, 39/32 A
480 V, 3-PH, 9.4 A

CE:
230 V, 1-PH, 33 A
400 V, 3-PH, 10 A

Output current

10 - 45 A

Rated output voltage

145 VDC

Duty cycle @ 40°C (104°F)

CSA:
50% @ 45 A, 200 – 240 V, 1-PH
60% @ 41 A, 200 – 240 V, 1-PH
100% @ 32 A, 200 – 240 V, 1-PH
50% @ 45 A, 480 V, 3-PH
60% @ 41 A, 480 V, 3-PH
100% @ 32 A, 480 V, 3-PH

CE/CCC:
50% @ 45 A, 230 V, 1-PH
60% @ 41 A, 230 V, 1-PH
100% @ 32 A, 230 V, 1-PH
50 % @ 45 A, 400 V, 3-PH
60% @ 41 A, 400 V, 3-PH
100% @32 A, 400 V, 3-PH

Open circuit voltage (OCV)

275 VDC (200-240 V, CSA/CE/CCC and 480 V, CSA)
265 VDC (400 V CE/CCC)

Dimensions with handles

442 mm (17.4") D; 173 mm (6.75") W;
357 mm (14.1") H

Weight with 6.1 m (20') torch

CSA: 14 kg (31 lbs)

CE: 15 kg (33 lbs)

Gas Supply

Cutting: air (clean, dry and oil-free), nitrogen, F5
Gouging: air (clean, dry and oil-free), nitrogen, F5
Marking: air (clean, dry and oil-free), argon

Recommended gas inlet
flow rate / pressure

188 l/min (400 scfh; 6 scfm) @ 90 psi (5.9 bar)

Input power cable length

3 m (10')

Power supply type

Inverter - IGBT

Engine drive requirement

12.5 kVA (10kW) for full 45 A output

Electrical efficiency

88%

Recyclability

100%

Certifications

CSA certified for use in Americas and Asia, except  China. CCC for use in China. CE, REM, GOST-TR, ukrSEPRO, and Serbian AAA for use in Europe, Austrailia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted

Warranty

Power supply: 3-year
Torch: 1-year

Hypertherm Powermax 45 XP Error Codes and Troubleshooting

Hypertherm Powermax 45 XP Error and Fault Codes

Additional Error Codes and Troubleshooting for the Powermax 45 XP

Cut Chart for Powermax 45 XP

Hypertherm Powermax 45 XP Setup

Hypertherm Powermax 45 XP First Look

How to mark & gouge with the Powermax 45 XP
