Hypertherm Powermax 45 XP Hand System w/ CPC - 20' Leads 088113

Hypertherm Powermax45 XP #088113
$2,313.50 $2,693.50 Reduced Price You Save $380.00
Product Number: 088113

CALL or CHAT for more options

1 used from $1804 | Add consumables

Bundle Options (check all that apply):

CALL or CHAT for more options

1 used from $1804 | Add consumables

Which Hypertherm Powermax 45XP Machine is right for me?

&nbsp Hypertherm Powermax 45 XP 088112 Hypertherm Powermax 45 XP 088114 Hypertherm Powermax 45 XP 088113 Hypertherm Powermax 45 XP 088124 Hypertherm Powermax 45 XP 088015 Hypertherm Powermax 45 XP 088123 Hypertherm Powermax 45 XP 088121 Hypertherm Powermax 45 XP 088016 Hypertherm Powermax 45 XP 088117 Hypertherm Powermax 45 XP 088122 Hypertherm Powermax 45 XP 088118 Hypertherm Powermax 45 XP 088123 CPC port not included but can be installed using the upgrade kit 428653 CPC port not included but can be installed using the upgrade kit 428653 This unit includes a CPC Port This unit includes a CPC Port Includes extra 15 degree torch This unit includes a CPC Port This unit includes a CPC Port Includes both a machine torch and a 75 degree hand torch This unit includes a CPC Port This unit includes a CPC Port Includes on/off remote switch This unit includes a CPC Port Includes on/off remote switch This unit includes a CPC Port This unit includes a CPC Port Includes on/off remote switch This unit includes a CPC Port Includes both a machine torch and a 75 degree hand torch 20’ FastConnect™ Torch 50’ FastConnect™ Torch 20’ FastConnect™ Torch 20’ FastConnect™ Torch 50’ FastConnect™ Torch 25’ FastConnect™ Torch 20’ FastConnect™ Torch 25’ FastConnect™ Torch 35’ FastConnect™ Torch 50’ FastConnect™ Torch 50’ FastConnect™ Torch 25’ FastConnect™ Torch Hypertherm Powermax 45 XP 088112 Hypertherm Powermax 45 XP 088114 Hypertherm Powermax 45 XP 088113 Hypertherm Powermax 45 XP 088124 Hypertherm Powermax 45 XP 088015 Hypertherm Powermax 45 XP 088123 Hypertherm Powermax 45 XP 088121 Hypertherm Powermax 45 XP 088016 Hypertherm Powermax 45 XP 088117 Hypertherm Powermax 45 XP 088122 Hypertherm Powermax 45 XP 088118 Hypertherm Powermax 45 XP 088123 CPC port not included but can be installed using the upgrade kit 428653 CPC port not included but can be installed using the upgrade kit 428653 This unit includes a CPC Port This unit includes a CPC Port Includes extra 15 degree torch This unit includes a CPC Port This unit includes a CPC Port Includes both a machine torch and a 75 degree hand torch This unit includes a CPC Port This unit includes a CPC Port Includes on/off remote switch This unit includes a CPC Port Includes on/off remote switch This unit includes a CPC Port This unit includes a CPC Port Includes on/off remote switch This unit includes a CPC Port Includes both a machine torch and a 75 degree hand torch 20’ FastConnect™ Torch 50’ FastConnect™ Torch 20’ FastConnect™ Torch 20’ FastConnect™ Torch 50’ FastConnect™ Torch 25’ FastConnect™ Torch 20’ FastConnect™ Torch 25’ FastConnect™ Torch 35’ FastConnect™ Torch 50’ FastConnect™ Torch 50’ FastConnect™ Torch 25’ FastConnect™ Torch

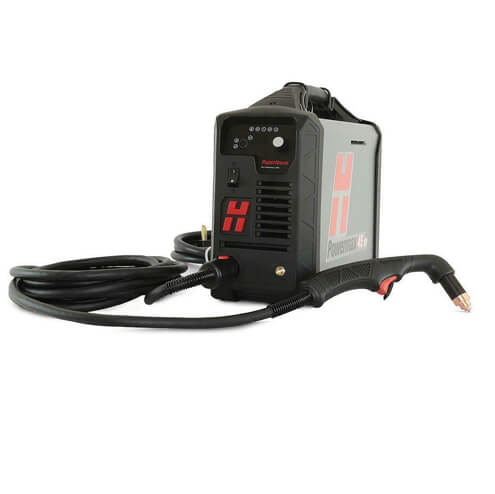

Hypertherm Powermax 45 XP, #088113 Portable Has Never Been So Powerful

Powermax 45 XP: Extra Mechanized Power To Get The Job Done

It wouldn’t be entirely fair to say the venerable Hypertherm Powermax 45 is obsolete, but the new 45 XP sure takes everything we loved about the 45 up a few notches. With even more cutting power, more torch options, more consumables and more advanced interface options, Hypertherm has really outdone themselves with this one. And with 70% more power than competitors’ comparable systems, they’ve outdone the competition, too.

Powermax 45 XP Machine At A Glance

  • 5/8” (16mm) rated cutting capability (mild steel, stainless steel, aluminum)
  • Duramax® Lock torch with disable switch for fast and easy replacement of consumables.
  • CNC interface and FastConnect™ torch connection
  • Smart Sense™ automatically monitors and adjusts air pressure for maximum performance
  • Patented drag-cutting technology for ease of use
  • Consumables available for fine feature cutting, extended reach cutting, gouging, precision gouging, marking

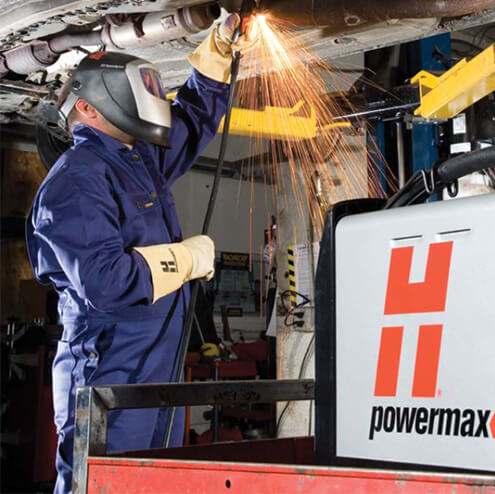

Small Size, Big Features

Don’t let its diminutive size fool you. With the power to cut up to 5/8” (16 mm) metal one-and-a-half times faster than oxyfuel, the Powermax 45 XP sets the standard for portable plasma cutters. And talk about versatility—with the array of consumables available you can use this little powerhouse for fine feature cutting, extended reach cutting, gouging, precision gouging and marking. It has all the power and versatility a pro needs, but Hypertherm’s innovative drag-cutting technology makes it easy for even novice operators.

Duramax®Lock Torches

The Hypertherm Powermax 45 XP comes equipped with a Duramax® Lock torch for maximum versatility and ease of use.

  • Built to withstand hard impacts and heat
  • SpringStart™ technology ensures consistent starts and superior torch performance
  • Hypertherm Certified™ reliability is your assurance of performance under the most demanding conditions

What sets the Powermax 45 XP apart from the Powermax 45?

  Powermax 45 Powermax 45 XP
Output current 20-45 10-45
kW output @max power 5.95 6.5
Cut capacity  ½” (12mm) 5/8” (16mm)
Severance 1” (25mm) 1 1/8” (29mm)
Autogas adjustment no yes
Easily accessed, protected air filter regulator no yes
Number of torch options 2 11
Consumables styles 4  7
Machine interface options standard CPC port Optional CPC port with 5 position selectable voltage divider card or serial port via RS-485 communication
F5 gas operation no  yes
Precision gouging capability no  yes

Included With The Powermax 45 XP Machine Package #088113:

This package includes the Powermax 45 XP CSA Hand System with CPC Port and 20 ft (6.1m) leads. All components in this package are fully backed by Hypertherm’s 3-year warranty (Powermax) and 1-year coverage on torch and lead.

HYPERTHERM Powermax 45 CONSUMABLES AND KITS

Stock up on consumables with the Powermax 45 handheld CSA consumable kit or Powermax 45 XP essential handheld consumables kit.

Shop all Plasma Cutters and Plasma Cutting Consumable Parts and Accessories and all Hypertherm plasma cutters available through Welders Supply.

Other versions of the Powermax 45:

View more Hypertherm Powermax Plasma cuttersView all Hypertherm Powermax Plasma Cutters

Input voltages
(± 10%)

CSA

200 – 240 V, 1-PH, 50-60 Hz
480 V, 3-PH, 50-60 Hz

CE/CCC

230 V, 1-PH, 50-60 Hz
400 V, 3-PH, 50-60 Hz

Input Current @ 5.95 kW

CSA

200/240 V, 1-PH, 39/32 A
480 V, 3-PH, 9.4 A

CE

230 V, 1-PH, 33 A
400 V, 3-PH, 10 A

Output current

10 - 45 A

Rated output voltage

145 VDC

Duty cycle @ 40°C (104°F)

CSA

50% @ 45 A, 200 – 240 V, 1-PH
60% @ 41 A, 200 – 240 V, 1-PH
100% @ 32 A, 200 – 240 V, 1-PH
50% @ 45 A, 480 V, 3-PH
60% @ 41 A, 480 V, 3-PH
100% @ 32 A, 480 V, 3-PH

CE/CCC

50% @ 45 A, 230 V, 1-PH
60% @ 41 A, 230 V, 1-PH
100% @ 32 A, 230 V, 1-PH
50 % @ 45 A, 400 V, 3-PH
60% @ 41 A, 400 V, 3-PH
100% @32 A, 400 V, 3-PH

Open circuit voltage (OCV)

275 VDC (200-240 V, CSA/CE/CCC and 480 V, CSA)
265 VDC (400 V CE/CCC)

Dimensions with handles

442 mm (17.4") D; 173 mm (6.75") W;
357 mm (14.1") H

Weight with 6.1 m (20') torch

CSA

14 kg (31 lbs)

CE

15 kg (33 lbs)

Gas Supply

Cutting: air (clean, dry and oil-free), nitrogen, F5
Gouging: air (clean, dry and oil-free), nitrogen, F5
Marking: air (clean, dry and oil-free), argon

Recommended gas inlet
flow rate / pressure

188 l/min (400 scfh; 6 scfm) @ 90 psi (5.9 bar)

Input power cable length

3 m (10')

Power supply type

Inverter - IGBT

Engine drive requirement 12.5 kVA (10kW) for full 45 A output
Electrical efficiency 88%
Recyclability 100%
Certifications CSA certified for use in Americas and Asia, except  China. CCC for use in China. CE, REM, GOST-TR, ukrSEPRO, and Serbian AAA for use in Europe, Austrailia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted
Warranty

Power supply: 3-year
Torch: 1-year

Hypertherm Powermax 45 XP Error Codes and Troubleshooting

Hypertherm Powermax 45 XP Error and Fault Codes

Additional Error Codes and Troubleshooting for the Powermax 45 XP

Cut Chart for Powermax 45 XP

Hypertherm Powermax 45 XP Setup

Hypertherm Powermax 45 XP Plasma Cutter

How to Mark & Gouge with the Hypertherm Powermax 45 XP
