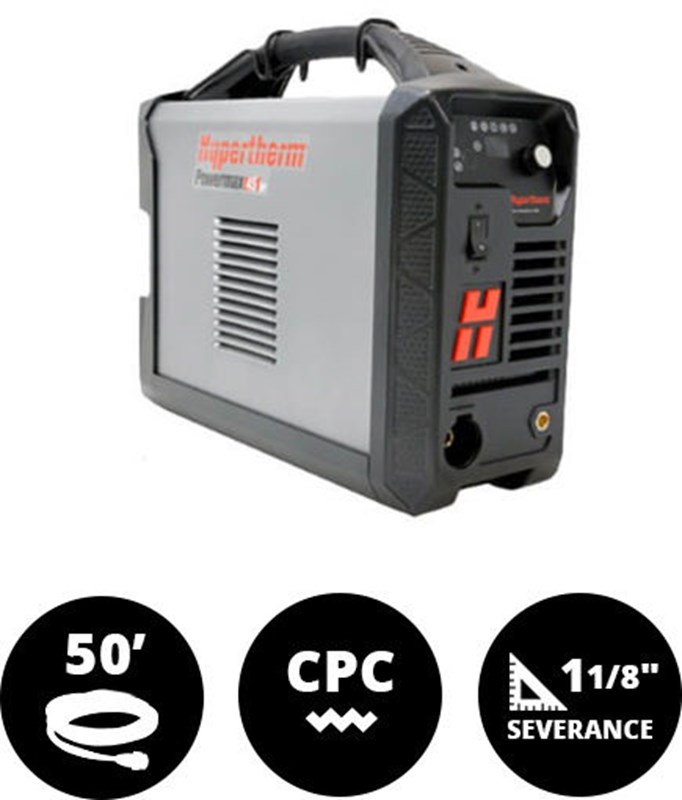

Hypertherm Powermax 45 XP #088122 Machine System CPC 50' Leads

Hypertherm Powermax45 XP #088122 Machine System CPC 50
$2,280.00 $2,700.00 Reduced Price You Save $420.00
Product Number: 088122

Which Hypertherm Powermax 45XP Machine is right for me?

&nbsp Hypertherm Powermax 45 XP 088112 Hypertherm Powermax 45 XP 088114 Hypertherm Powermax 45 XP 088113 Hypertherm Powermax 45 XP 088124 Hypertherm Powermax 45 XP 088015 Hypertherm Powermax 45 XP 088123 Hypertherm Powermax 45 XP 088121 Hypertherm Powermax 45 XP 088016 Hypertherm Powermax 45 XP 088117 Hypertherm Powermax 45 XP 088122 Hypertherm Powermax 45 XP 088118 Hypertherm Powermax 45 XP 088123 CPC port not included but can be installed using the upgrade kit 428653 CPC port not included but can be installed using the upgrade kit 428653 This unit includes a CPC Port This unit includes a CPC Port Includes extra 15 degree torch This unit includes a CPC Port This unit includes a CPC Port Includes both a machine torch and a 75 degree hand torch This unit includes a CPC Port This unit includes a CPC Port Includes on/off remote switch This unit includes a CPC Port Includes on/off remote switch This unit includes a CPC Port This unit includes a CPC Port Includes on/off remote switch This unit includes a CPC Port Includes both a machine torch and a 75 degree hand torch 20’ FastConnect™ Torch 50’ FastConnect™ Torch 20’ FastConnect™ Torch 20’ FastConnect™ Torch 50’ FastConnect™ Torch 25’ FastConnect™ Torch 20’ FastConnect™ Torch 25’ FastConnect™ Torch 35’ FastConnect™ Torch 50’ FastConnect™ Torch 50’ FastConnect™ Torch 25’ FastConnect™ Torch Hypertherm Powermax 45 XP 088112 Hypertherm Powermax 45 XP 088114 Hypertherm Powermax 45 XP 088113 Hypertherm Powermax 45 XP 088124 Hypertherm Powermax 45 XP 088015 Hypertherm Powermax 45 XP 088123 Hypertherm Powermax 45 XP 088121 Hypertherm Powermax 45 XP 088016 Hypertherm Powermax 45 XP 088117 Hypertherm Powermax 45 XP 088122 Hypertherm Powermax 45 XP 088118 Hypertherm Powermax 45 XP 088123 CPC port not included but can be installed using the upgrade kit 428653 CPC port not included but can be installed using the upgrade kit 428653 This unit includes a CPC Port This unit includes a CPC Port Includes extra 15 degree torch This unit includes a CPC Port This unit includes a CPC Port Includes both a machine torch and a 75 degree hand torch This unit includes a CPC Port This unit includes a CPC Port Includes on/off remote switch This unit includes a CPC Port Includes on/off remote switch This unit includes a CPC Port This unit includes a CPC Port Includes on/off remote switch This unit includes a CPC Port Includes both a machine torch and a 75 degree hand torch 20’ FastConnect™ Torch 50’ FastConnect™ Torch 20’ FastConnect™ Torch 20’ FastConnect™ Torch 50’ FastConnect™ Torch 25’ FastConnect™ Torch 20’ FastConnect™ Torch 25’ FastConnect™ Torch 35’ FastConnect™ Torch 50’ FastConnect™ Torch 50’ FastConnect™ Torch 25’ FastConnect™ Torch

Hypertherm Powermax 45 XP #088122 Machine System CPC 50' Leads

The bad news is the Powermax 45 is out of production. The good news: its replacement is even better. Meet the Powermax 45 XP. With more power, more innovation, and more versatility, it takes portable plasma cutters to an entirely new level. Whether you’re an old pro or just starting out, the Powermax 45 XP will help you work faster and cut cleaner than ever before.

The Hypertherm Powermax 45XP at a Glance

  • 5/8” (16mm) rated cutting capability (mild steel, stainless steel, aluminum)
  • Duramax® Lock torch with disable switch for fast and easy replacement of consumables
  • CNC interface and FastConnect™ torch connection
  • Smart Sense™ automatically monitors and adjusts air pressure for maximum performance
  • Patented drag-cutting technology for ease of use

The Powermax line of CNC Plasma Cutters are known for their excellent reliability and fantastic metal cutting abilities.  The 45XP will seamlessly cut, gouge, and mark through steel, mid-steel, aluminum, and other metals with ease.  The 45XP revolutionizes plasma cutting technology, and as an essential piece of machinery for any serious metal-worker’s arsenal components.

What sets the Powermax 45 XP apart from the Powermax 45?

  Powermax 45 Powermax 45 XP
Output current 20-45 10-45
kW output @max power 5.95 6.5
Cut capacity  ½” (12mm) 5/8” (16mm)
Severance 1” (25mm) 1 1/8” (29mm)
Auto gas adjustment no yes
Easily accessed, protected air filter regulator no yes
Number of torch options 2 11
Consumables styles 4  7
Machine interface options standard CPC port Optional CPC port with 5 position selectable voltage divider card or serial port via RS-485 communication
F5 gas operation no  yes
Precision gouging capability no  yes

HYPERTHERM Powermax 45 CONSUMABLES AND KITS

Stock up on consumables with the Powermax 45 handheld CSA consumable kit or Powermax 45 XP essential handheld consumables kit.

Shop all Plasma Cutters and Plasma Cutting Consumable Parts, Kits and Accessories on sale at the lowest price from Welders Supply.



Other versions of the Powermax 45:

View more Hypertherm Powermax Plasma cuttersView all Hypertherm Powermax Plasma Cutters

Input voltages
(± 10%)

CSA

200 – 240 V, 1-PH, 50-60 Hz
480 V, 3-PH, 50-60 Hz

CE/CCC

230 V, 1-PH, 50-60 Hz
400 V, 3-PH, 50-60 Hz

Input Current @ 5.95 kW

CSA

200/240 V, 1-PH, 39/32 A
480 V, 3-PH, 9.4 A

CE

230 V, 1-PH, 33 A
400 V, 3-PH, 10 A

Output current

10 - 45 A

Rated output voltage

145 VDC

Duty cycle @ 40°C (104°F)

CSA

50% @ 45 A, 200 – 240 V, 1-PH
60% @ 41 A, 200 – 240 V, 1-PH
100% @ 32 A, 200 – 240 V, 1-PH
50% @ 45 A, 480 V, 3-PH
60% @ 41 A, 480 V, 3-PH
100% @ 32 A, 480 V, 3-PH

CE/CCC

50% @ 45 A, 230 V, 1-PH
60% @ 41 A, 230 V, 1-PH
100% @ 32 A, 230 V, 1-PH
50 % @ 45 A, 400 V, 3-PH
60% @ 41 A, 400 V, 3-PH
100% @32 A, 400 V, 3-PH

Open circuit voltage (OCV)

275 VDC (200-240 V, CSA/CE/CCC and 480 V, CSA)
265 VDC (400 V CE/CCC)

Dimensions with handles

442 mm (17.4") D; 173 mm (6.75") W;
357 mm (14.1") H

Weight with 6.1 m (20') torch

CSA

14 kg (31 lbs)

CE

15 kg (33 lbs)

Gas Supply

Cutting: air (clean, dry and oil-free), nitrogen, F5
Gouging: air (clean, dry and oil-free), nitrogen, F5
Marking: air (clean, dry and oil-free), argon

Recommended gas inlet
flow rate / pressure

188 l/min (400 scfh; 6 scfm) @ 90 psi (5.9 bar)

Input power cable length

3 m (10')

Power supply type

Inverter - IGBT

Engine drive requirement 12.5 kVA (10kW) for full 45 A output
Electrical efficiency 88%
Recyclability 100%
Certifications CSA certified for use in Americas and Asia, except  China. CCC for use in China. CE, REM, GOST-TR, ukrSEPRO, and Serbian AAA for use in Europe, Austrailia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted
Warranty

Power supply: 3-year
Torch: 1-year
