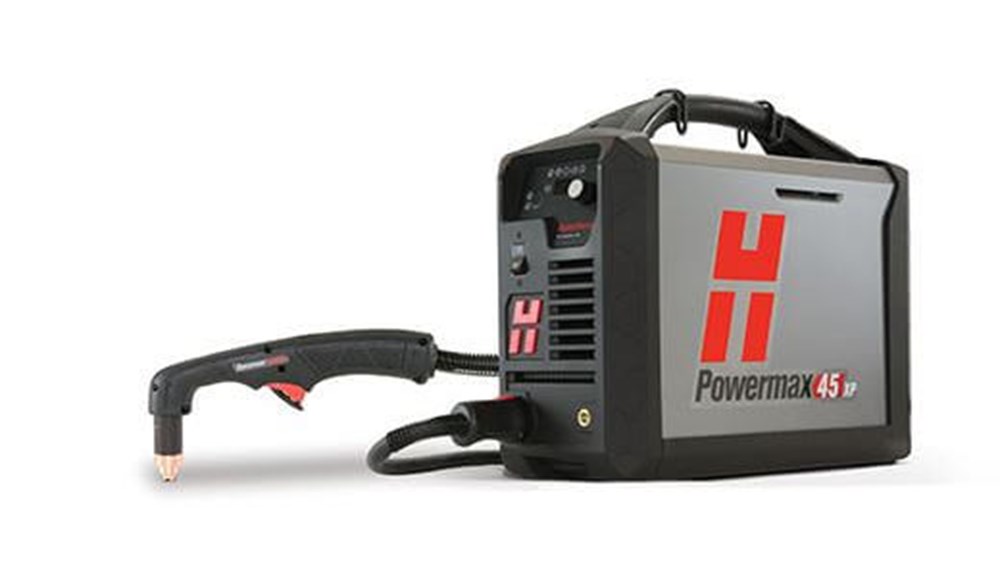

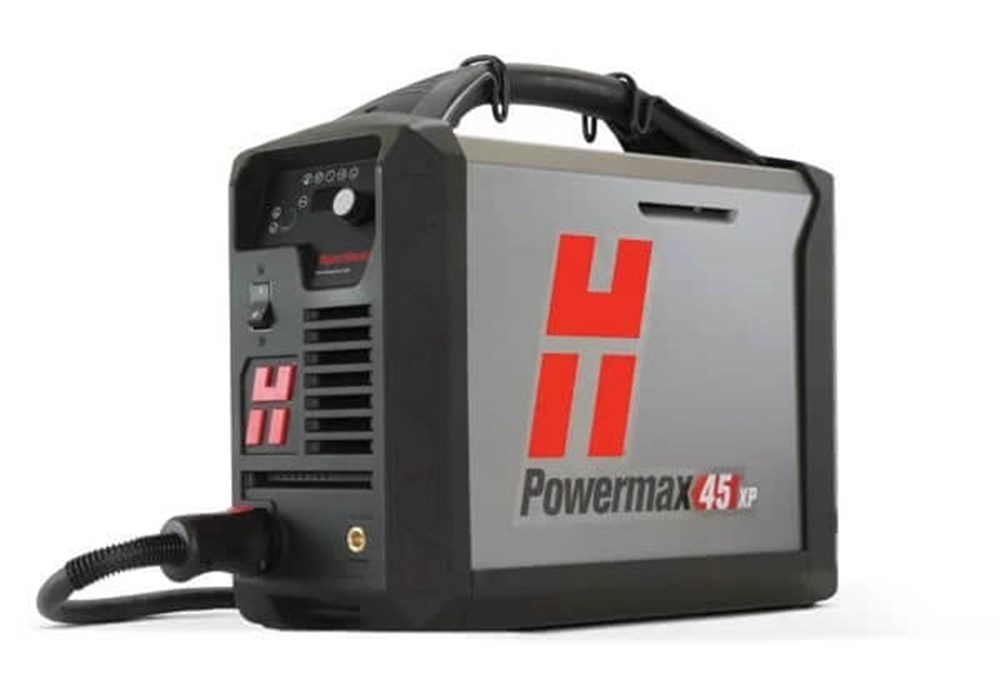

Hypertherm Powermax 45 XP 3-Phase Hand System W/O CPC - 20' Leads #088126
Easy-to-use with Versatile Design
- Small size and light weight provides exceptional portability for a 5/8" rated cutting system
- Handheld and mechanized usage with FastConnect torch connection
- Patented drag-cutting technology makes it easy to use – even for first-time operators
- Tackle different jobs with multiple, easy-to-use torch styles
- No need to change the air pressure. Smart Sense technology ensures that it is always correctly set
- Mark, score and make precision gouges with new low amp process
- Maximum Productivity
- Finish jobs faster with cut speeds one and a half times greater than oxyfuel on 1/4" mild steel
- Spend less time on grinding and edge preparation due to superior cut and gouge quality
- Fast change out of consumables using the new torch disable switch feature
Rugged and Reliable
- Duramax Lock torches are designed for high-impact and heat resistance
- SpringStart technology ensures consistent starting and a more reliable torch
- Hypertherm Certified reliability ensures performance in the most demanding environment
Common Applications
- Property/Plant Maintenance
- Fire and Rescue
- General Fabrication
- HVAC and Mechanical Contracting
- Educational Institutions
- Agricultural and Farm Equipment Maintenance
Compatible Torches & Consumables
Hypertherm® 45 Amp Duramax™ Lock Plasma Torch
Powermax 45XP Consumable Parts
Warranty: power supply - 3 years, torch - 1 year
Register your Hypertherm products for safety, education and service support. Operate safely with Welders Supply helmets and gloves.
Looking for more? Browse our entire selection of plasma cutting machines and Hypertherm accessories.
All Hypertherm Powermax 45XP Models | |||
---|---|---|---|
Power Supply Only | Handheld Torch Included | Machine Torch Included | |
Handheld Only |
|
||
CPC Port | |||
CPC & Serial Port |
View all Hypertherm Powermax Plasma Cutters
Hypertherm Powermax 45 XP #088126 Specifications | ||
---|---|---|
Input voltages (± 10%) |
CSA | 200 – 240 V, 1-PH, 50-60 Hz OR 480 V, 3-PH, 50-60 Hz1 |
CE/CCC | 230 V, 1-PH, 50-60 Hz OR 400 V, 3-PH, 50-60 Hz |
|
Input current @ 6.5 kW |
CSA | 200 - 240 V, 1-PH, 39/32 A OR 480 V, 3-PH, 9.4 A1 |
CE/CCC | 230 V, 1-PH, 33 A OR 400 V, 3-PH, 10 A |
|
Output current | 10–45 A | |
Rated output voltage | 145 VDC | |
Duty cycle @ 40° C (104° F) |
CSA |
50% @ 45 A, 200 – 240 V, 1-PH |
CE/CCC | 50% @ 45 A, 230 V, 1-PH 60% @ 41 A, 230 V, 1-PH 100% @ 32 A, 230 V, 1-PH 50% @ 45 A, 400 V, 3-PH 60% @ 41 A, 400 V, 3-PH 100% @ 32 A, 400 V, 3-PH |
|
Open circuit voltage (OCV) | 275 VDC (200 - 240 V, CSA/CE/CCC and 480 V, CSA) 265 VDC (400 V CE/CCC) |
|
Cuttable metals | Mild steel, stainless steel, aluminum | |
Dimensions with handles | 442 mm (17.4") D; 173 mm (6.8") W; 357 mm (14.1") H | |
Weight with 6.1 m (20') torch | CSA | 14 kg (31 lbs.) |
CE/CCC | 15 kg (33 lbs.) | |
Gas supply | Cutting: air (clean, dry and oil-free), nitrogen, F5 Gouging: air (clean, dry and oil-free), nitrogen, F5 Marking: air (clean dry and oil-free) argon |
|
Recommended gas inlet flow rate / pressure |
188 I/min (400 scfh) @ 5,9 bar (90 psi) | |
Input power cable length | 3 m (10') | |
Power supply type | Inverter – IGBT | |
Engine drive requirement | 12.5 kVA (10 kW) for full 45 A output | |
Electrical efficiency | 88% | |
Recyclability | 100% | |
Warranty | Power supply: 3-year Torch: 1-year |
Capacity | Thickness | Cut speed |
---|---|---|
Cutting | ||
Recommended | 16 mm (5/8") 22 mm (7/8") |
500 mm/min (20 ipm) 250 mm/min (10 ipm) |
Severance (hand cutting) | 29 mm (1-1/8") | 125 mm/min (5 ipm) |
Pierce* | 12 mm (1/2") |
* Pierce rating for handheld use or with automatic torch height control
Capacity | Metal removal rate | Groove profile |
---|---|---|
Gouging | ||
Typical gouge | 3,4 kg (7.5 lbs.) per hour | 3,2 mm (.12") D x 6,8 mm (.26") W |
SHIPPING DIMENSIONS |
|
Height: | 15.00 Inches |
Width: | 7.00 Inches |
Length: | 17.50 Inches |
Weight: | 32 Lb(s) 0 Oz |
Accessories
Consumables
Product Questions and Answers
Q - What is the gouge capacity for this?
A - 7.5 lbs per hour with a groove profile of .12" D by .26" W
Q - Can a CPC be added later?
A - Yes, but if you're thinking you'll need that capability you should consider the Powermax 45 XP 088122 that comes with the CPC.
Q - Would this system work with an XY table?
A - Not without several upgrades, including a CPC port and a machine torch.
Q - What type of gas can be used?
A - Bottled nitrogen, bottled air, or compressed air can be used, but air should be filtered to provide clean dry air to prevent damage to the system. Minimum air pressure is 85 psi, 135 psi max.
