Maxstar 161 STL #907710001 120-240 V, X-Case, Contractor Package

Part Numbers: 907710001
$2,285.00
$2,881.00* Save $596.00

Included with your purchase ( ) :

See Bundle Details!
Edit

    Call 1-844-682-0205 or CHAT for more options

    Welding type:

    Stick

    Stick

    Tig

    Tig

    Material type:

    Mild Steel

    Mild Steel

    Stainless Steel

    Stainless Steel

    Power supply:

    110V

    110V

    • Stick Welding
    • TIG Welding
    • Single Phase
    • Torch Included
    • 3-Year Power Warranty

    Miller Maxstar® 161 STL #907710001 120-240 V, X-Case, Contractor Package

    Work Anywhere with Convenient, Compact Power

    At just 13 lbs this machine is ready to go your way without weighing you down. Grab it by the handle or throw it over your shoulder before you head out to the shipyard, construction site, gallery, or manufacturing plant. The included X-Case™ protects your Maxstar 161 during transport and storage, while giving you extra space to store accessories and gear, so you’re ready to go wherever the job takes you.

    Smart, Simple Systems Save Time

    When you have a job to do, you need equipment that works as hard as you do. Focus on the task at hand with a welder that minimizes annoyance and maximizes safety. Providing up to 160 amps of power, the Maxstar 161 features Auto-line™ for input power from 120-240 V and no manual linking. You’re off to a good start with a digital meter for easy setup, and Hot Start™ adaptive control delivering positive, stick-free arc starts. Breaker tripping is greatly reduced, especially on 120 V, thanks to power factor corrected design.

    The Complete Package

    The Maxstar 161 STL with X-Case™ and contractor package gives you the convenient features you need, like Fan-On-Demand™ smart cooling system and Stick-Stuck™ technology for auto-shutoff and safe electrode removal. It also comes with an AK2C accessory kit, a flow gauge regulator with gas hose, and a Weldcraft™ A-150 (WP-17) 12.5 ft TIG torch with connector, so you’re equipped in any event.

    View our large selection of welders, welding accessories, and other welding tools with the greatest values online.

    Other Versions:

    • 907710 - Maxstar 161 STL 120-240 V
    • 907710002 - Maxstar 161 STL 120240 V, X-Case Fingertip Contractor Package



    Maxstar 161 STL #907710001 120-240 V, X-Case, Contractor Package Specifications:

    Input Voltage Options 110/115/120 V
    220/230/240 V
    Input Hz Range 50 / 60 Hz
    Input Phase 1-phase
    Current Type DC
    Weld Output CC
    Maximum Open Current Voltage 48 VDC
    Material Thickness 0.02 in. (0.5 mm) - .1875 in. (4.8 mm)
    Weldable Metals Steel
    Stainless Steel
    Processes Stick (SMAW) Lift-Arc™
    TIG (GTAW)
    Process Specifications
     Stick (SMAW) Lift-Arc™TIG (GTAW)
    Welding Amperage Range 120 V: 5–130 A
    240 V: 5–160 A
    120 V: 20–90 A
    240 V: 20–160 A
    Rated Welding Output 120 V: 90 A at 13.6 VDC, 100% duty cycle;
               130 A at 15.2 VDC, 30% duty cycle
    240 V: 110 A at 14.4 VDC, 100% duty cycle;
               160 A at 16.4 VDC, 20% duty cycle
    120 V: 60 A at 22.4 VDC, 100% duty cycle;
               90 A at 23.6 VDC, 30% duty cycle
    240 V: 110 A at 24.4 VDC, 100% duty cycle;
               160 A at 26.4 VDC, 20% duty cycle
    Ancilliaries
    Industrial Applications Racing / Customizing / Restoring
    DIY / Home Hobbyist
    Farm and Ranch
    Metal Art / Sculpting
    Manufacturing
    Aerospace
    Boat / Yacht
    Construction
    Education / Training
    Heavy Equipment Manufacturing
    High Purity Processing
    Infrastructure
    Mechanical Contracting

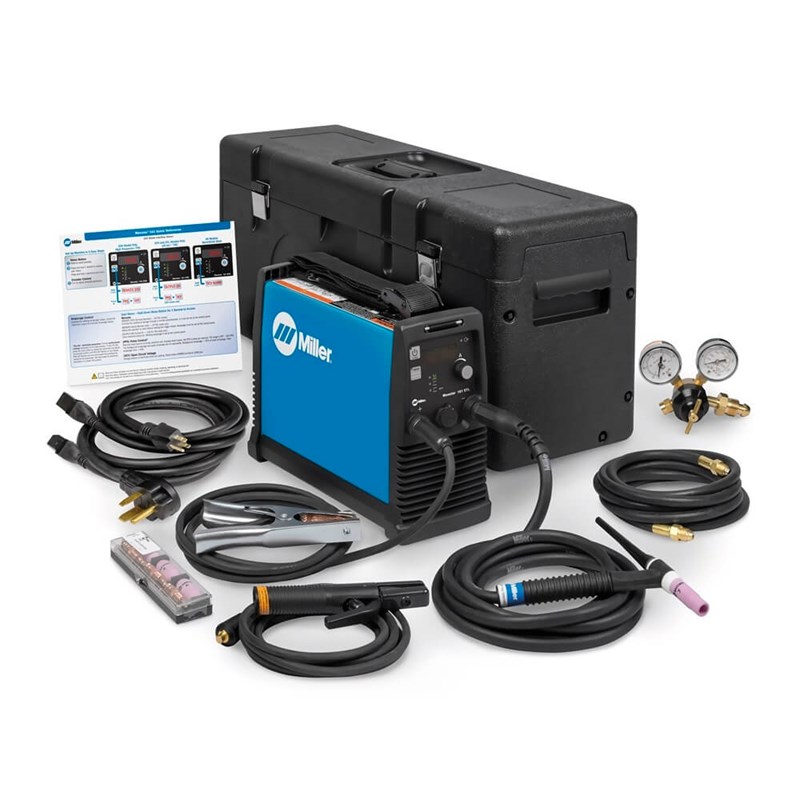

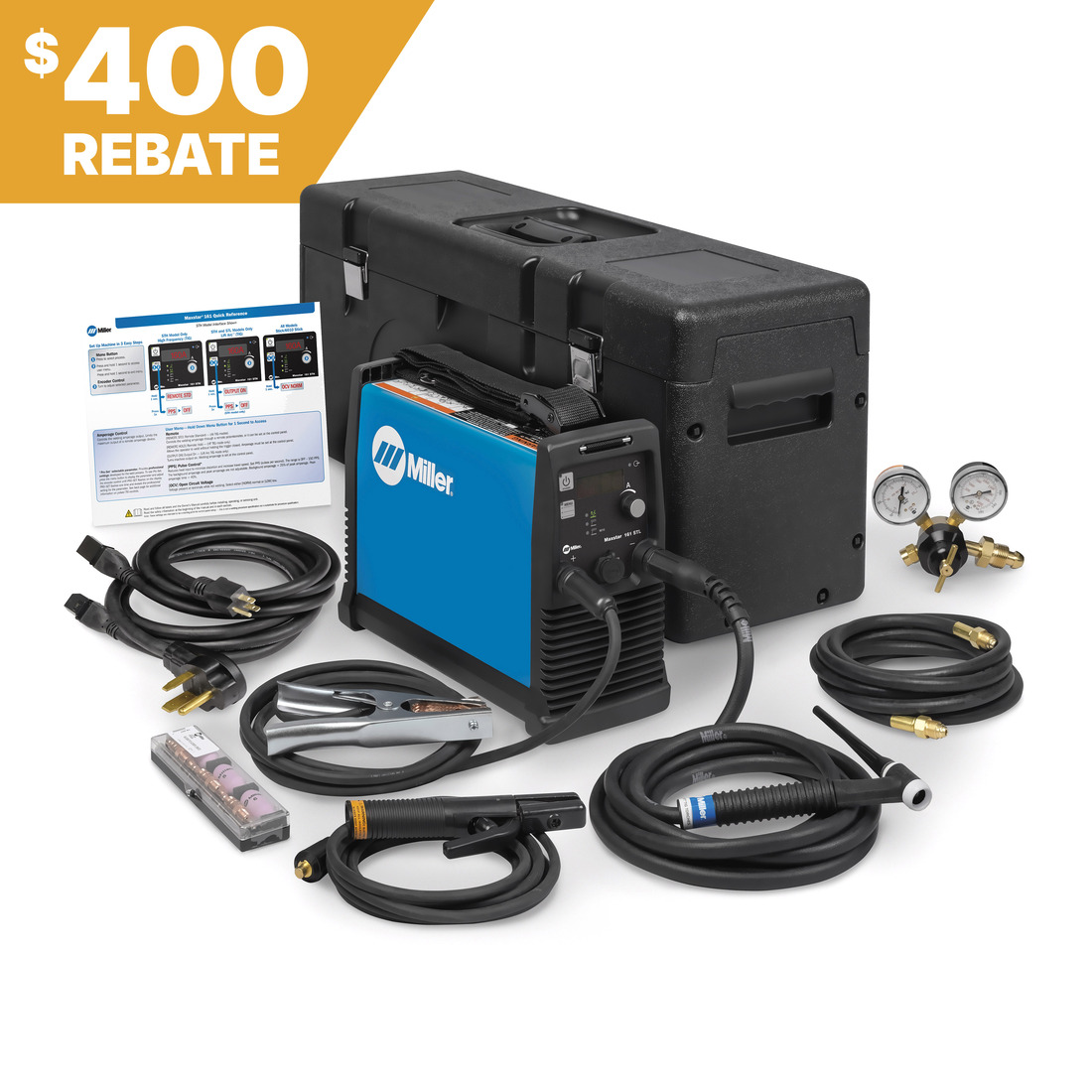

    Package Includes Maxstar 161 STL power source 6.5 ft. (2 m)
    120-volt and 240-volt power cords
    X-CASE™ — provides protection in transport and storage RCCS-6M
    Weldcraft™ A-150 (WP-17) 12.5 ft. (3.8 m)
    TIG torch with connector Stick electrode holder with 13 ft. (4 m) cable and 25 mm Dinse-style connector
    Work clamp with 10 ft. (3 m) cable and 25 mm Dinse-style connector
    Flow gauge regulator with gas hose
    AK2C accessory kit with short back cap, nozzles, collets, collet bodies, and 2% ceriated tungsten electrodes (.040, 1/16, and 3/32 in.)
    Handle/shoulder strap
    Net Width 5.6 in. (142 mm)
    Net Height 10.3 in. (262 mm)
    Net Length 13.5 in. (343 mm)
    Net Weight 13 lb. (5.9 kg)
    Portability Handles
    Straps
    Warranty 3 years - Miller's True Blue Warranty

    Product Questions and Answers


    Q - Can you run this off a standard electrical outlet in a house? A - Yes, with the 120/240 multi-voltage plug, you can plug it into a standard house outlet or a 240 V workshop plug.
    Q - What foot control works with this? A - The Miller RFCS-6M Remote Foot Control, part #195183

    How to select a weld process :

    1. Process Selector Button.

      Press Button until LED for desired process is illuminated.

    2. Lift Arc Start.

      When selected, a TIG arc starting method in which the electrode must come in contact with the workpiece to initiate an arc is activated.

    3. Stick (SMAW).

      When selected, Adaptive Hot Start, Stick Stuck, and DIG circuitry are energized.

    4. Stick 6010 (SMAW).

      When selected, Adaptive Hot Start, StickStuck, and DIG circuitry are energized. Parameters are optimized to run a 6010Stick electrode.
