Maxstar 161 STL #907710 120-240 V

Part Numbers: 907710
1 Review

Included with your purchase ( ) :

$1,775.00 $2,247.00*
SAVE $472.00
$1,775.00 $2,247.00*
SAVE $472.00

Call 1-844-682-0205 or CHAT for more options

Welding type:

Stick

Stick

Tig

Tig

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Power supply:

110V

110V

220V Single Phase

220V Single Phase

  • Single Phase Input
  • TIG Welding
  • Stick Welding
  • Lightweight & Portable
  • 120V - 240V Input Voltage
  • 3-Year Miller Warranty

Maxstar® 161 STL #907710 120-240 V

Updated Technology for Outstanding Performance

The Maxstar 161 STL provides best in class portability and compact performance. Operators have access of up to 160 amps of power suitable for a variety of applications, from farm equipment repairs to experimental aircraft fabrication, while being able to easily carry the machine wherever welding needs to be done. This extremely portable unit is equipped with time-saving features, as well as safety features.

Streamlined Design to Save You Time

Wave good-bye to your bulky TIG gas valve torch and say hello to the Maxstar 161 with a built-in gas solenoid. A simple control interface and single amperage range allows easy, accurate amperage settings with 120-volt or 240-volt primary power. Dealing with dirty or unreliable power? It's no problem for the Maxstar 161 STL. You can plug into any voltage hookup (120-240 V) and forget about manual linking, thanks to Miller's innovative Auto-Line Power Management technology.

First-rate Arc Features

Now you can get TIG arc initiation without the high frequency, thanks to Miller’s Lift-Arc™ technology. The Hot Start™ adaptive control gives you positive arc starts with zero sticking, and the inverter-based power source delivers great weld puddle control in both TIG and Stick settings. Even with difficult electrodes like the E6010, you’ll find superb stick arc performance in a small, lightweight package.

For the best prices on welding machinesStick welding machines, TIG welders, and chop saws, shop Welders Supply online.

Other Versions:

  • 907710001 - Maxstar 161 STL 120-240 V, X-Case Contractor Package
  • 907710002 - Maxstar 161 STL 120240 V, X-Case Fingertip Contractor Package



Maxstar 161 STL #907710 120-240 V Specifications:

Input Voltage Options 110/115/120 V
220/230/240 V
Input Hz Range 50 / 60 Hz
Input Phase 1-phase
Current Type DC
Weld Output CC
Maximum Open Current Voltage 48 VDC
Material Thickness 0.02 in. (0.5 mm) - .1875 in. (4.8 mm)
Weldable Metals Steel
Stainless Steel
Processes Stick (SMAW) Lift-Arc™
TIG (GTAW)
Process Specifications
  Stick (SMAW) Lift-Arc™ TIG (GTAW)
Welding Amperage Range 120 V: 5–130 A
240 V: 5–160 A
120 V: 20–90 A
240 V: 20–160 A
Rated Welding Output 120 V: 90 A at 13.6 VDC, 100% duty cycle;
           130 A at 15.2 VDC, 30% duty cycle
240 V: 110 A at 14.4 VDC, 100% duty cycle;
           160 A at 16.4 VDC, 20% duty cycle
120 V: 60 A at 22.4 VDC, 100% duty cycle;
           90 A at 23.6 VDC, 30% duty cycle
240 V: 110 A at 24.4 VDC, 100% duty cycle;
           160 A at 26.4 VDC, 20% duty cycle
Ancilliaries
Industrial Applications Racing / Customizing / Restoring
DIY / Home Hobbyist
Farm and Ranch
Metal Art / Sculpting
Manufacturing
Aerospace
Boat / Yacht
Construction
Education / Training
Heavy Equipment Manufacturing
High Purity Processing
Infrastructure
Mechanical Contracting

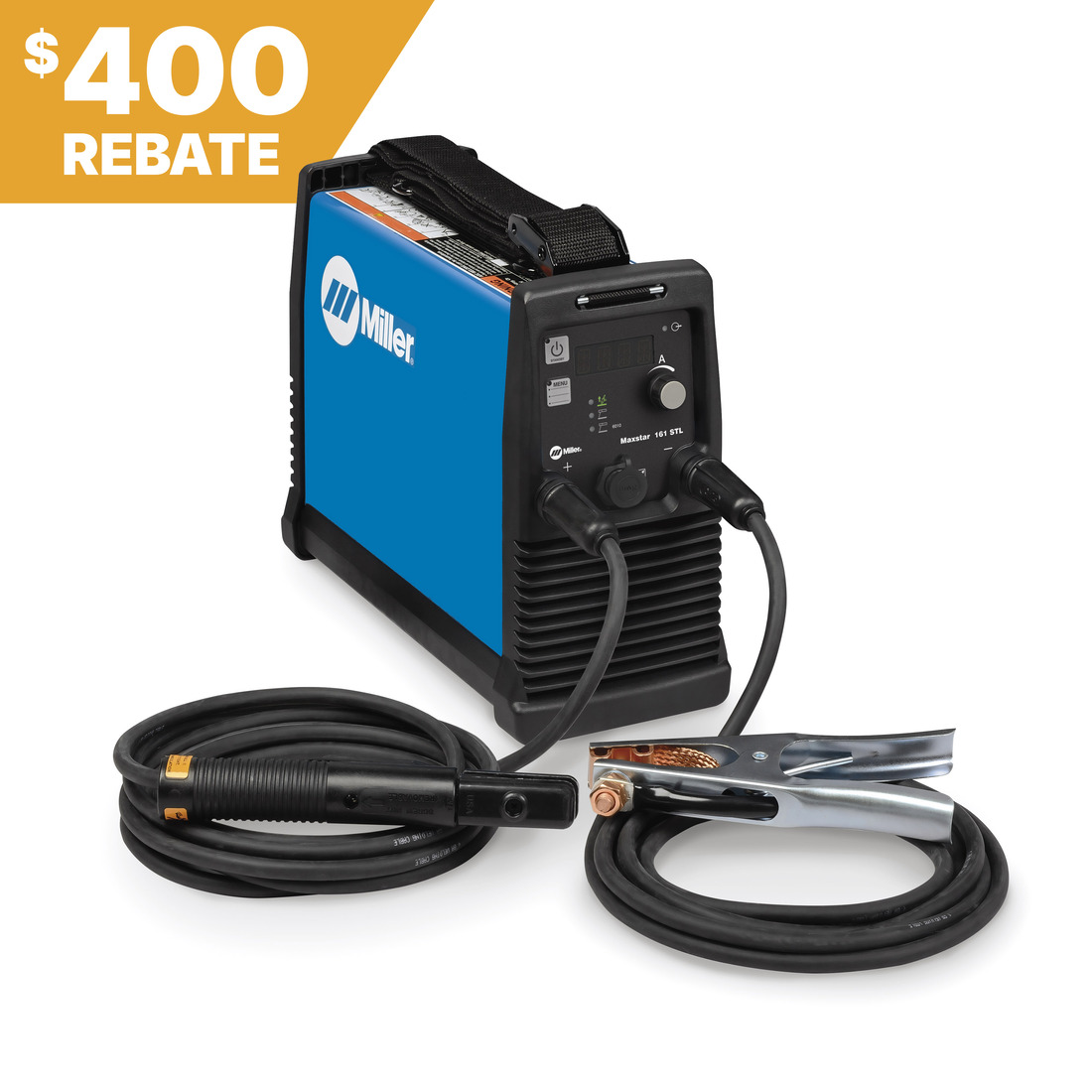

Package Includes Maxstar 161 STL power source
6.5 ft. (2 m) 120-volt and 240-volt power cords
Stick electrode holder with 13 ft. (4 m) cable and 25 mm Dinse-style connector
Work clamp with 10 ft. (3 m) cable and 25 mm Dinse-style connector
One air-cooled TIG torch connector (195234)
Handle/shoulder strap
Net Width 5.6 in. (142 mm)
Net Height 10.3 in. (262 mm)
Net Length 13.5 in. (343 mm)
Net Weight 13 lb. (5.9 kg)
Portability Handles
Straps
Warranty 3 years - Miller's True Blue Warranty

Manufacturer Reviews

By: Rueben
Awesome little welder, first project was to weld up a stainless steel sink, performed beautifully. I'm a retired professional welder and other than not being 100% duty cycle and limited for amperage, this welder will out perform many larger units.

Product Questions and Answers


Q - How well would this work for welding thin steels (for bicycle frames)? A - With 5 amp TIG capability, you can weld thinner metals with the 161 STL than you can with other machines in this category.
Q - Can this work with 6010 stick electrodes? A - Yes, and it works great with them!
