Ships Free To Lower 48 States

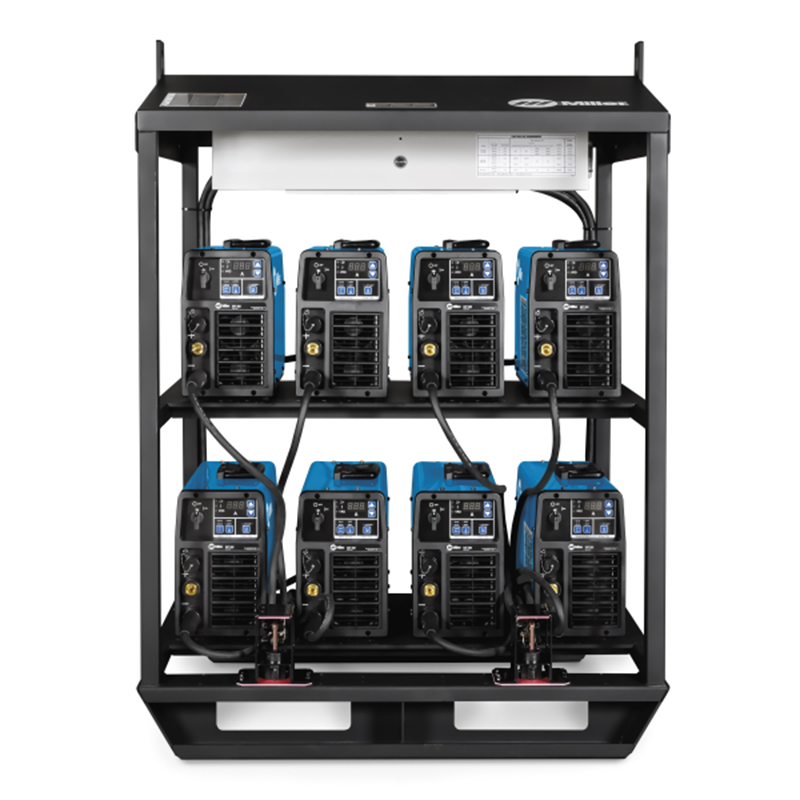

Miller CST™ 282 8-Pack Rack 208-575 V, Tweco® #907812

Part Number: 907812
UPC: 715959691772
$44,150.00 + Free Shipping $44,150.00*
SAVE $0.00
Starts at $7,358.33/month with

Call 844-682-0205 or CHAT for more options

Welding type:





Power supply:



Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

  • TIG Supported
  • Stick Supported
  • Lightweight & Portable
  • Auto-Line Technology
  • 3-Year Power Warranty

Miller CST™ 282 8-Pack Rack 208-575 V, Tweco® #907812

Welds Stick/TIG

Superior stick arc performance with settings specifically designed for XX10 and XX18 electrodes and a stiff and soft setting for each. Whether welding pipe or in the flat there is a setting for each application.

Auto-Line™ Technology

Work in more places with Auto-Line technology which automatically calibrates the power source to operate properly when connected to any primary input voltage ranging from 208-575 volts, single- or three-phase, 50 or 60 Hz — with no manual linking required.

Universal Connector System

New Miller-exclusive universal output connector system can be used with either Tweco- or Dinse-style connectors. Welders can convert the machine from one connector style to another — without having to take the machine apart or deal with adapters.

Simple & Accurate Interface

Digital meter and push-button controls for more precise setting when presetting or monitoring welding amperage.


Individual power source and rack enclosure designed to meet the needs of field construction.


Light weight and small footprint for easy transportation. The low weight enables the use of elevators to move the rack.

Common Ground

Common output ground connection (for same polarity use only).

Lifting Eye

Lifting eye simplifies transportation using crane or overhead lifting device.

Individually Fused

One main disconnect box with fused circuit breaker switches for each machine.

For the best prices on welding machines,  TIG weldersStick weldersMIG welders, shop Welders Supply online.
Miller CST™ 282 8-Pack Rack 208-575 V, Tweco® #907812 Specifications
Industries Interests Construction
Pressure Vessel
Pipe Fabrication / Construction
Maintenance and Repair - Field Operations
Process Pipe
Weldable Metals Specialty Metals
Stainless Steel
Input Voltage 460 V
575 V
Input Phase  3-Phase
Input Hz  50/60 Hz
Rated Output Stick: 30–280 A, TIG: 5–280 A
Max Open Circuit Voltage 103 VDC
Portability Lift Eye (Standard)
Running Gear / Cart (Standard)
Warranty 3 Years
Miller's True Blue Warranty


Height: 34.38 Inches
Width: 43.00 Inches
Length: 59.38 Inches
Weight: 550 Lb(s) 0 Oz
