Miller CST 282 4-PK 951883

Part Numbers: 951883

Included with your purchase ( ) :

$23,796.00 $27,482.00*
SAVE $3,686.00
$23,796.00 $27,482.00*
SAVE $3,686.00

Call 1-844-682-0205 or CHAT for more options

Welding type:

Stick

Stick

Tig

Tig

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Power supply:

220V Single Phase

220V Single Phase

220V 3 Phase

220V 3 Phase

460V

460V

  • TIG Welding
  • Stick Welding
  • Multi-Phase
  • 3-Year Miller Warranty

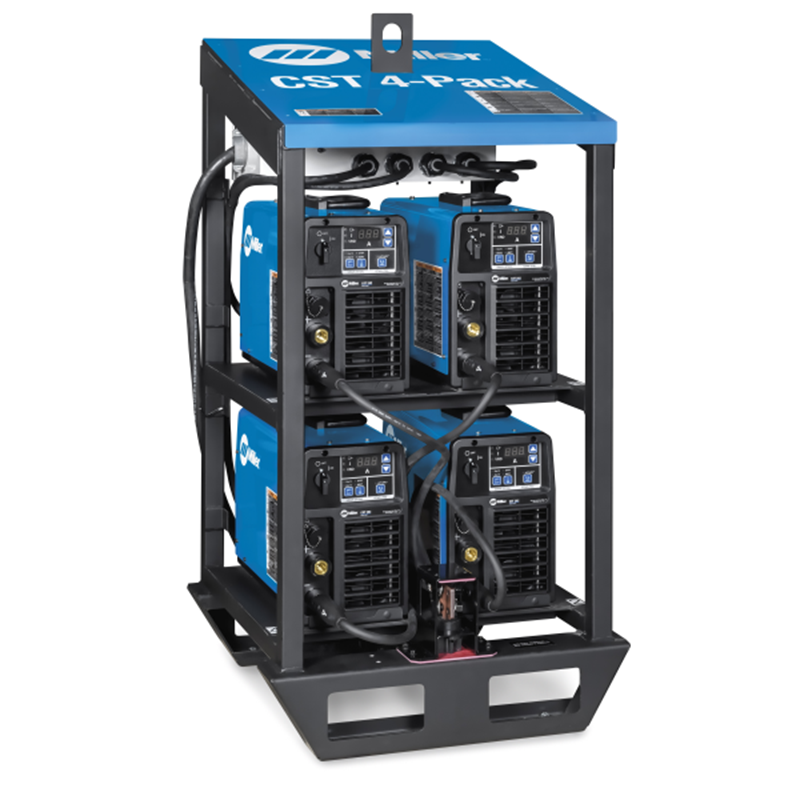

Miller CST 282 4-Pack Rack #951883

Rugged enclosure provides simple means for protecting and transporting multiple welding power sources for construction, maintenance/repair and shipbuilding applications.

What's Included:

  • 25 A fuses for 460 V

Features:

Welds Stick/TIG

  • Superior stick arc performance with settings specifically designed for XX10 and XX18 electrodes and a stiff and soft setting for each. Whether welding pipe or in the flat there is a setting for each application.

Auto-Line™ Technology

  • Work in more places with Auto-Line technology which automatically calibrates the power source to operate properly when connected to any primary input voltage ranging from 208-575 volts, single- or three-phase, 50 or 60 Hz — with no manual linking required. Learn More
Universal Connector System
  • New Miller-exclusive universal output connector system can be used with either Tweco- or Dinse-style connectors. Welders can convert the machine from one connector style to another — without having to take the machine apart or deal with adapters.
Simple & Accurate Interface
  • Digital meter and push-button controls for more precise setting when presetting or monitoring welding amperage.

Durability

  • Individual power source and rack enclosure designed to meet the needs of field construction.

Portability

  • Light weight and small footprint for easy transportation. The low weight enables the use of elevators to move the rack.

Common Ground

  • Common output ground connection (for same polarity use only).

Lifting Eye

  • Lifting eye simplifies transportation using crane or overhead lifting device.

Individually Fused

  • One main disconnect box with fused circuit breaker switches for each machine
Check out the wide selection of MIG, TIG, Stick and Gas welders available at Welders Supply Company.

Processes

  • Stick (SMAW)
  • TIG (GTAW)
  • TIG DC (GTAW-DC)

Miller CST 282 Specifications:

Industries Interests

Shipbuilding
Heavy Equipment Manufacturing
Fabrication
Infastructure
Pipe Fabrication / Construction
Construction

Boat/Yacht

Process Pipe

Carbon Diameter 3/16 in (4.8 mm)
Current Type DC
Input Voltage 208-575 V
Input Phase 1-Phase or 3-Phase
Input Hz 50 / 60 Hz
Portability Lift Eye (Standard)
Running Gear / Cart (Optional)
Net Height 50.75 in
Net Length 25.5in
Net Weight 330 lbs
Weldable Metals Specialty Metals
Stainless Steel
Steel
Net Width 16.5 in
Max Open Circuit Voltage
103 VDC
Weld Ouput CC / CV
Warranty 3 Years
Miller's True Blue Warranty
