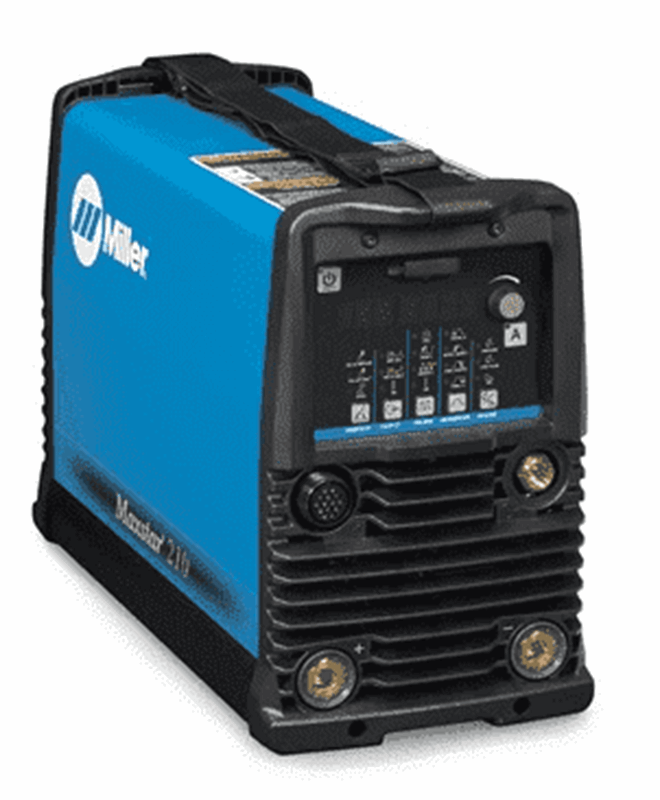

460VThe Maxstar 210 series is well known for consistent arc times and enough power to get just about any job done, and the DX 210 is no exception.
The Maxstar DX 210 offers both TIG and stick welding modes, so you can take on a wide range of work. The welder even has features to make it safer and quieter. The built in cooling system, for instance. The fan cools the machine to reduce noise and energy usage while also keeping the machine clear of contaminants that can build up during use. Not only does it extend the service life of the machine, it also saves you money in the long run.
Hate wasting time adjusting the controls every time you want to weld? The Maxstar DX 210 lets you create preset controls for your most used settings so the machine is ready to work the moment you turn the machine on. Get one, and get welding.
NOT INCLUDED: TIG Torch Adaptor
Processes: TIG (GTAW)Stick (SMAW)TIG DC (GTAW-DC)Pulsed TIG (GTAW-P)
| Welding Mode | TIG (GTAW) | Stick (SMAW) | ||||
| Input Power | 208-480 V | 120V | 208-480V | 120V | ||
| Welding Amperage Range | 1-210 A | 1-210A | 5-210A | 5-100A | ||
| Rated Output | 210 A @ 18.4 V 60% duty cycle | 125 A @ 15 V, 60% duty cycle | 160A @ 26.4V, 60% duty cycle | 90A @ 23.6V, 60% duty cycle | ||
| Phase | 3-phase | 1-phase | 1-phase | 3-phase | 1-phase | 1-phase |
Amps Input @ Rated Load Output, 50/60Hz |
||||||
| 120V | - | - | 22 | - | - | 23 |
| 208V | 14 | 24 | - | 15 | 26 | - |
| 240V | 12 | 20 | - | 13 | 22 | - |
| 400V | 7 | 12 | - | 8 | 13 | - |
| 480V | 6 | 10 | - | 6 | 11 | - |
| KVA | 5.2 | 4.9 | 2.6 | 5.5 | 5.3 | 2.8 |
| KW | 4.9 | 4.9 | 2.6 | 5.2 | 5.3 | 2.8 |
| Max. Open-Circuit Voltage | 80 VDC (11VDC*) | |||||
| Dimensions | H: 13.6 in. (346mm) W: 8.6 in. (219 mm) D: 19.5 in. (495 mm) |
|||||
| Net Weight | STR: 36 lb. (16.3 kg) Base/DX: 38 lb. (17.2 kg) | |||||
| Input Power | 208-480V | 120 V |
| TIG (GTAW) Duty Cycle | 210 A, 60% 175 A, 100% |
150 A, 40% 125 A, 60% 100 A, 100% |
| Stick (SMAW) Duty Cycle | 210 A, 30% 160 A, 60% 125 A, 100% |
100A, 40% 90 A, 60% 75 A, 100% |
| DC TIG Material Thickness Range | STR: 0.025-1/4 in. (0.06-6.4mm) Base/DX: 0.002-1/4 in. (0.05-6.4mm) |
|
| Stick Electrode Maximum Diameter | 6010: 3/16 in. (4.8 mm) 7018: 5/32 in. (4.0 mm) 7024: 5/32 in. (4.0 mm) |
|
| Generator Requirement | 9 kW | |
SHIPPING DIMENSIONS |
|
| Height: | 17.00 Inches |
| Width: | 13.00 Inches |
| Length: | 24.00 Inches |
| Weight: | 44 Lb(s) 0 Oz |

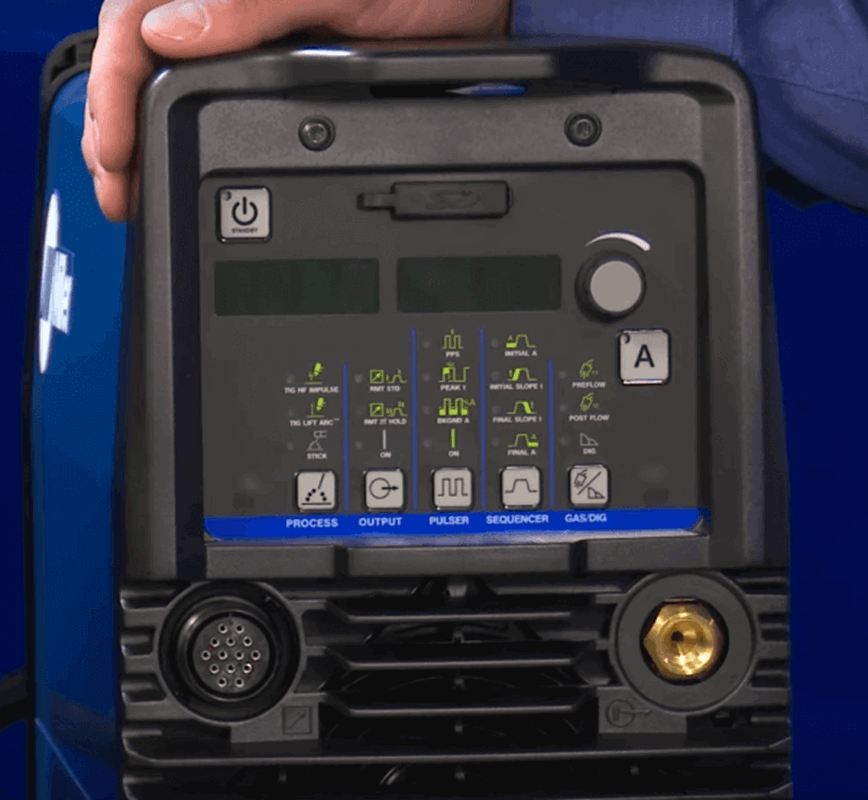

When “ON” button is illuminated, the pulser function is on.
Press switch pad until desired parameter LED is illuminated.
Turn pulser off to exit pulsing function.
