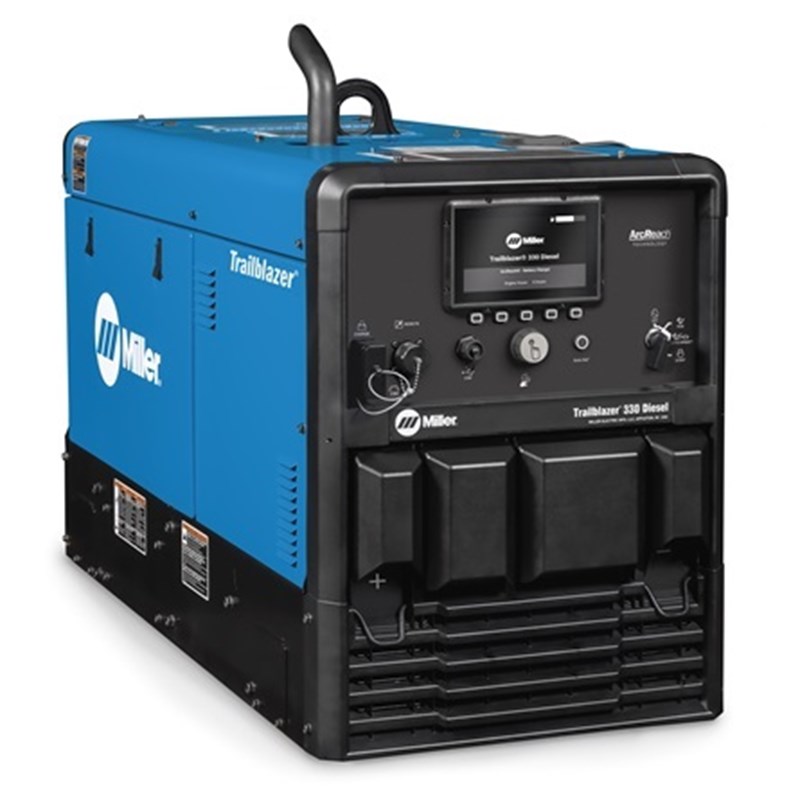

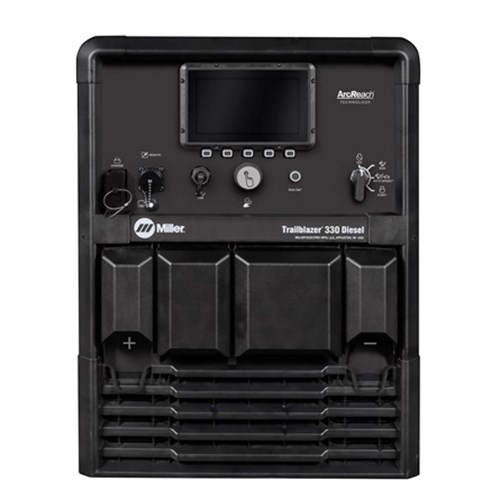

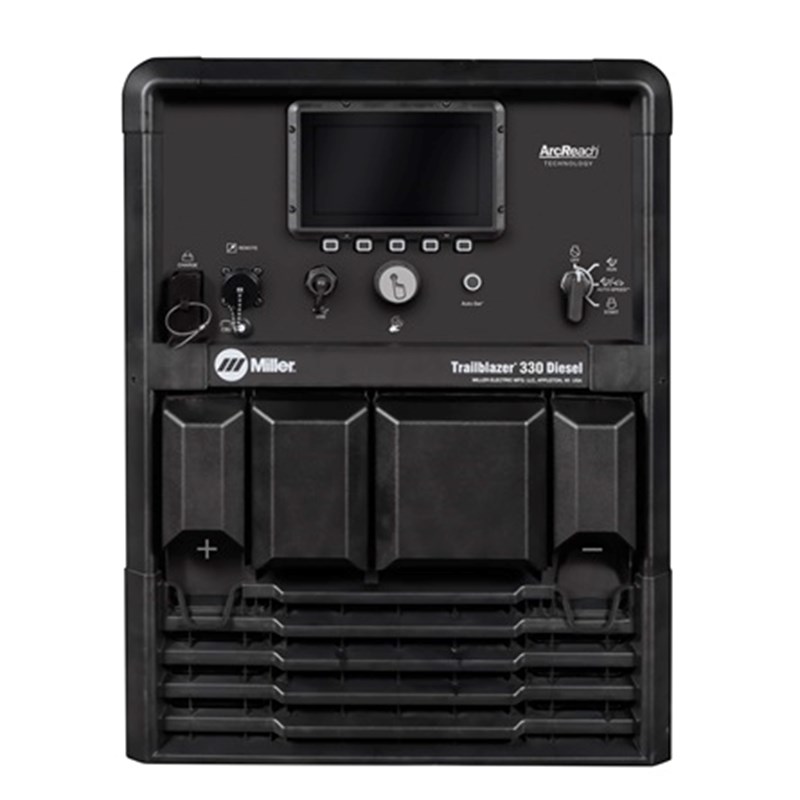

Miller Trailblazer® 330 Diesel Welder/Generator w/ Excel™ Power, Battery Charge/Crank Assist & Kubota Engine #907849003
Miller's Trailblazer® 330 diesel engine-driven welder empowers professionals with unparalleled welding capabilities and unrivaled versatility. Equipped with a robust Kubota engine and Miller-exclusive Excel™ Power, this machine delivers an impressive full 120V of auxiliary power, even when the engine is idling. With its cutting-edge battery charge/crank assist option, the Trailblazer® offers a reliable solution for rejuvenating dead batteries or assisting with difficult engine startups.
This compact powerhouse outperforms its rivals in the 300-amp class, delivering exceptional welding and auxiliary power while maintaining impressive fuel efficiency and minimal noise levels. The Trailblazer® 330 ensures productive and profitable job sites, enabling professionals to tackle demanding welding projects with confidence and ease.
Try It For Yourself! Launch Miller's Trailblazer 330 Simulator
What's Included:
- Trailblazer® 330 Diesel (Kubota) w/Excel™ Power & Battery Charge/Crank Assist #907849003
- Not included: Weld Leads
Output:
- 12,000 W peak power (10,500 W continuous)
- DC stick: 20–330 A
- MIG/flux cored: 15–40 V
- DC TIG: 20–330 A
Applications:
- Fabrication
- Maintenance
- Repair
- Structural Steel Work
- Sheet Metal
- Pipe
Direct spool gun connection
Highlights
- Dynamic DIG™: Auto-adjusts current for smooth, consistent arcs based on material, fit-up, and welder technique.
- QuietPulse™: Reduces noise in DC pulse welding by smoothing transitions between background and peak amperage.
- ArcReach® Technology: Allows remote process adjustments at the weld site, using existing cables to control settings.
- Auto-Speed™ Technology: Adjusts engine speed to meet demand, reducing fuel, maintenance, and noise for safer jobs.
- Excel™ Power: Delivers 2,400 watts of pure, 120 V sine wave power at all speeds, lowering noise and emissions.

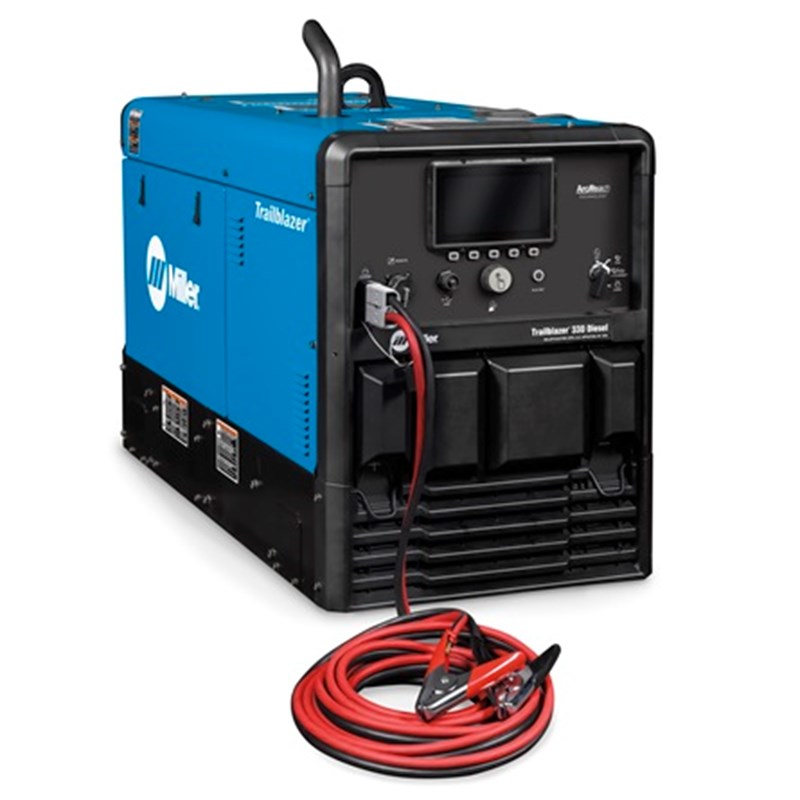

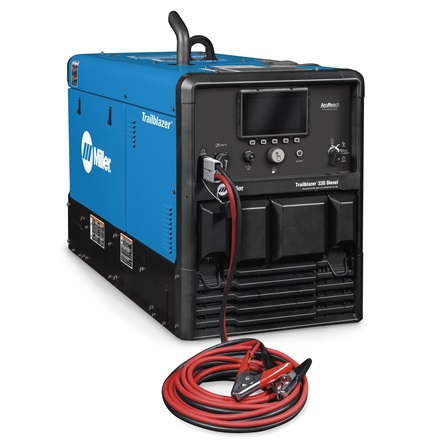

- Battery Charge/Crank Assist: Use the welder to charge dead batteries or jump engines, cutting equipment downtime.
Benefits of the Trailblazer 330 Diesel w/ Excel & Crank Assist #907849003:
- The digital interface quickens the machine setup and makes it less complicated.
- Enjoy easy arc starts and less spatter with exceptional arc performance.

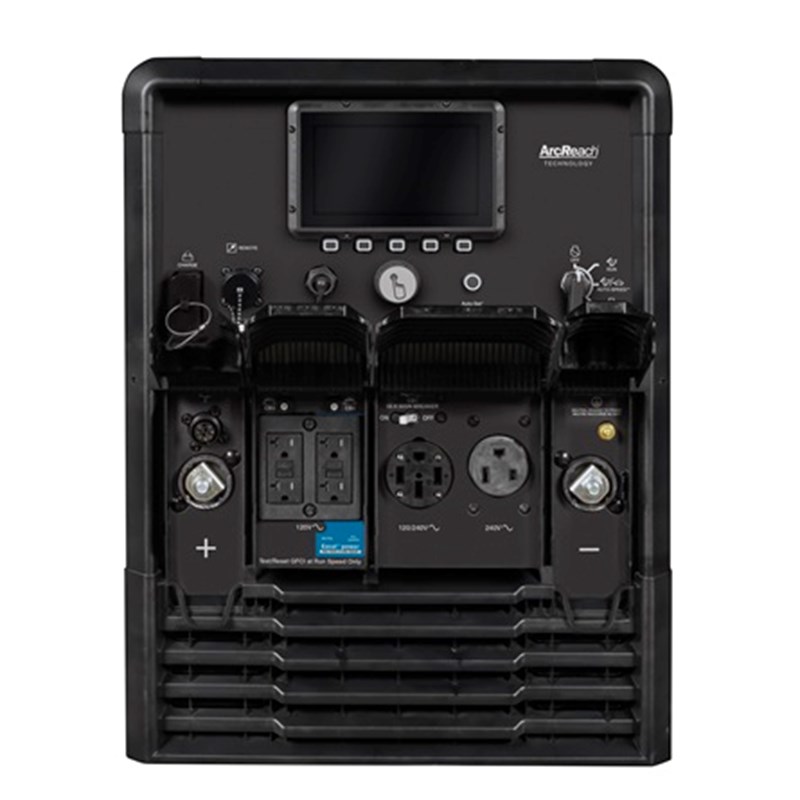

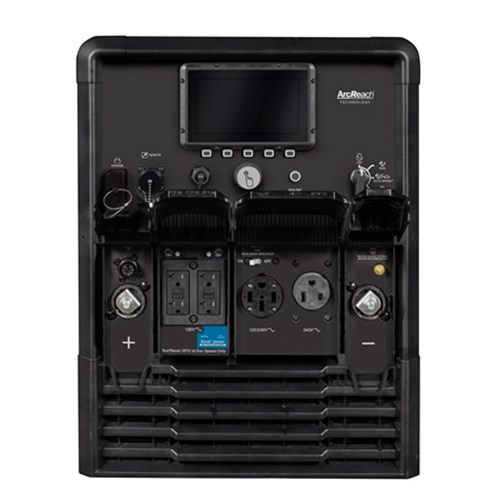

- Separate weld and auxiliary power allow for full auxiliary power at any setting.
- Daily maintenance is made easy by the welder’s intuitive design.
- Designed and recommended for mechanics or anyone else responsible for a fleet of trucks or equipment.
Download literature of this machine:
Fast, Free Shipping & Easy Returns
At Welders Supply, we focus on providing quick, dependable shipping and seamless returns. If you're unsatisfied, return the product within 14 days for an exchange, credit, or refund. All returns must be freight prepaid, in the original packaging, with all manuals and accessories. A restocking fee of up to 25% may apply depending on the condition of the returned product. Certain exclusions apply, including custom orders, PPE and demo items. For more details, contact our customer service team at 1-844-682-0205.
Shop Welders Supply for the best prices on MIG, TIG, Stick and Gas welders from Miller & other top brands.
Other Versions of the Trailblazer® 330 Diesel:
Trailblazer 330 Diesel w/ Excel & Crank Assist #907849003 - Specifications | |
---|---|
Processes | Air Carbon Arc Cutting and Gouging (CAC-A) Flux Cored (FCAW) MIG (GMAW) Pulsed TIG (GTAW-P) Stick (SMAW) TIG DC (GTAW-DC) |
Industries Interests | Construction and Fabrication Heavy Equipment Railcar |
Amperage | 20 A - 330 A |
Weldable Metals | Aluminum Stainless Steel Steel |
Rated Carbon Diameter | 1/4 in (6.4 mm) |
Current Type | DC |
Max Open Circuit Voltage | 107 VDC |
Portability | Lift Eye (Standard) Running Gear / Cart (Optional) Trailer (Optional) |
Cold Weather Starting Aids | Glow Plugs |
Engine Brand | Kubota |
Engine Compliance | T4F |
Engine Idle Speed | 1800 RPM |
Engine Weld Speed | Advanced Auto-Speed(TM) technology: Varies engine speed from 1,800-3,600 rpm to match weld output |
Fuel Tank Size | 11 Gallon |
Fuel Type | Diesel |
Horsepower | 24.8 hp |
Weld Output | CC/CV |
Rated Output | CC/DC Stick/TIG 330 A at 31 V, 100% duty cycle CV/DC MIG/FCAW 330 A at 3.25 V, 100% duty cycle |
Single Phase Auxiliary Continuous Power | 10500 W |
Single Phase Auxiliary Peak Power | 12000 W |
Sound Rating | 74.7 dB @ idle and 80.2 dB @ max weld |
Applications | Aluminum Welding Fabrication Field Welding Industrial Welding Mobile Fabrication & MRO Structural Welding |
Warranty | 3 Years Miller's True Blue Warranty |
SHIPPING DIMENSIONS |
|
Height: | 32.41 Inches |
Width: | 20.60 Inches |
Length: | 45.72 Inches |
Weight: | 611 Lb(s) 0 Oz |
Spec Sheets
- 2024 Spec Sheet (English) - Trailblazer 330 Diesel
- 2024 Spec Sheet (Español) - Trailblazer 330 Diesel
