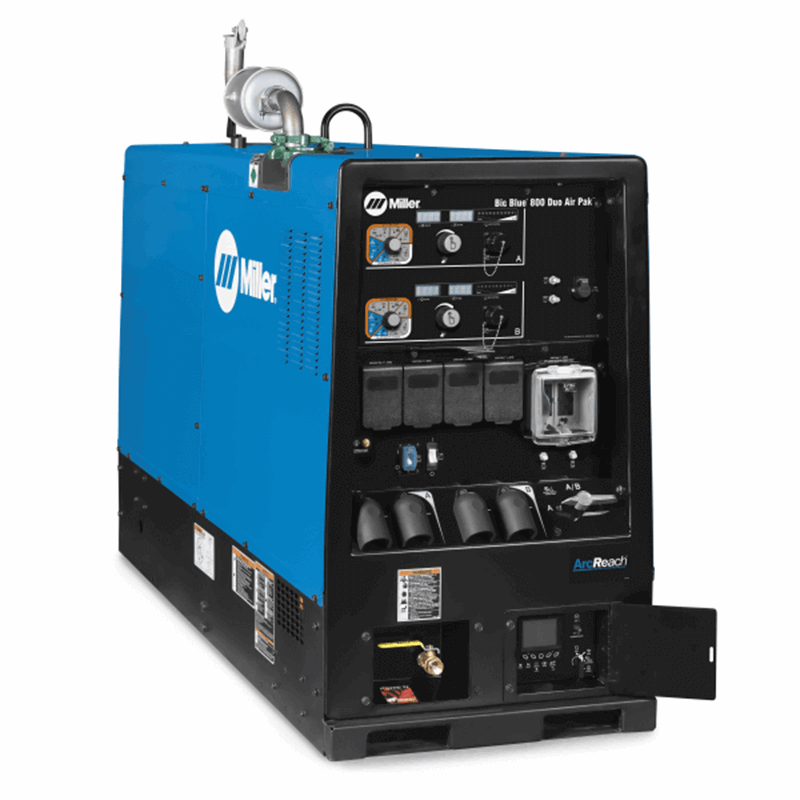

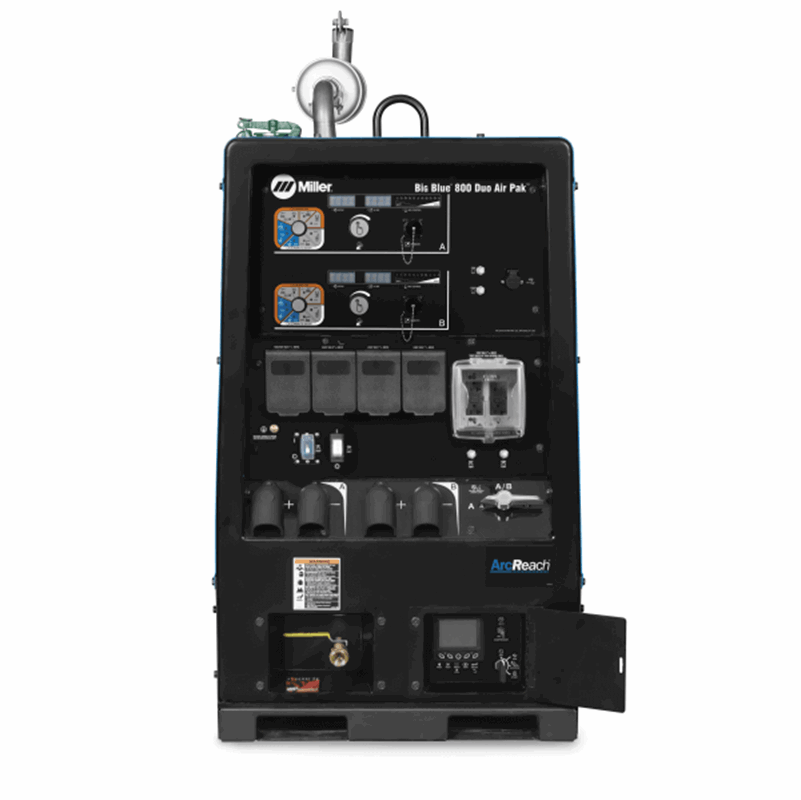

Miller Big Blue® 800 Duo Air Pak™ #907752001
Part Numbers: 907752001
Included with your purchase ( ) :
$73,215.00
$73,215.00
Welding type:
Mig
Stick
Tig
Engine Driven
Material type:
Mild Steel
Stainless Steel
Documents
Videos
DEUTZ Industrial Diesel Engine
Ingersoll Rand Air Compressor
Fork Pockets for Portability
3-Year Miller Warranty
Miller Big Blue® 800 Duo Air Pak™ Truck Mount Spec #907752001
The Big Blue 800 Duo Air Pak Work Truck Model has the critical controls located within easy reach of a ground-based operator when the machine is mounted on the bed of a large-body truck.
What's Included:
- ArcReach® Remote Control Technology
- FA-1D Lockable Flame Arrestor Fuel Cap
- Spark Arrestor
- Air Cleaner Restriction Indicators
- Vandalism Lockout Kit
Features:
- Heavy-Duty Low-Speed DEUTZ TD2.9 L4 T4F Industrial Diesel Engine
The cleanest diesel power available thanks to the Big Blue 800's diesel oxidation catalyst technology.
- Multi-Arc Welding
800 amps for a solo operator, 400 amps for 2, or plug in additional inverter for 3 or more welders.
- Increased Efficiency
- Air Compressor - Ingersoll Rand
Reliable rotary screw air compressor w/ 30,000-hour life expectancy to save you on fuel and maintenance cost.
- Industrial USB Port
A reliable USB port to easily implement the latest software updates and retrieve information about your machine.
- ArcReach® Technology
- ArcReach® Accessories for Every Application
- Increased Productivity & Safety
ArcReach technology reduces hazards on the job site and keeps you welding longer.
- Electronic Engine Display
A comprehensive, easy-to-read display showing you all the operating info about your machine.
Check out our workbenches & accessories
View all our quality welding machines or all other welding equipment.
Other versions of the Big Blue 800:
Miller Big Blue 800 Duo Air Pak Specifications: | |
|---|---|
| Industries Interests | Construction Infrastructure Fabrication Maintenance and Repair - Field Operations Infrastructure Work / Service Trucks |
| Processes | Air Carbon Arc Cutting and Gouging (CAC-A) Flux Cored (FCAW) MIG (GMAW) Pulsed MIG (GMAW-P) RMD Stick (SMAW) TIG DC (GTAW-DC) |
| Carbon Diameter | 1/2 in (12.7 mm) |
| Cold Weather Starting Aids | Engine Block Heater Glow Plugs |
| Current Type | DC |
| Engine Brand | Deutz |
| Engine Compliance | T4F |
| Engine Idle Speed | 1350 RPM |
| Portability | Lift Eye (Standard) Fork Pockets |
| Engine Weld Speed | 1800 RPM |
| Fuel Tank Size | 25 Gallon |
| Net Height | 46 in |
| Fuel Type | Diesel |
| Net Length | 69.5 in |
| Horsepower | 65.7 hp |
| Max Open Circuit Voltage | 85 VDC |
| Net Weight | 2095 lbs |
| Weldable Metals | Steel Stainless Steel |
| Net Width | 28.5 in |
| Rated Output | 1 Welder: 800 A at 38 V, 100% Duty Cycle 2 Welders: 400 A at 36 V, 100% Duty Cycle |
| Single Phase Generator Continuous Power | 12000 W |
| Warranty | Engine Warranties Miller's True Blue Warranty |
| Single Phase Generator Peak Power | 15000 W |
| Sound Rating | Idle: 71.3 dB / Weld: 78.9 dB |
| Three Phase Generator Continuous Power | 20000 W |
| Three Phase Generator Peak Power | 27000 W |
| Amperage Range | 20 - 800 |
SHIPPING DIMENSIONS |
|
| Height: | 48.00 Inches |
| Width: | 30.00 Inches |
| Length: | 71.00 Inches |
| Weight: | 2145 Lb(s) 0 Oz |
Consumables
Manufacturer Reviews
My company bought one of these machines and we use it daily. It's pricey but if you own a big company and need the productivity this machine will run two ln-25 pro wire feeders while using the compressor and 2 nine inch metabo grinders all at the same time. This thing is a beast. The only down side I can see is the price. But the machines are awesome great job Miller
Product Questions and Answers
Q - What kind of welding can this machine do?
A - The Miller Big Blue® 800 Duo is best for heavy industrial applications. It does MIG, TIG, Arc, Stick, and FCAW welding.
Q - Is this 3 phase only?
A - The Miller Big Blue® 800 Duo runs on both 3- and 1- phase.
