Millermatic 141 w/Auto Set 110 Volt Mig Welder #907612

Part Number: 907612
1 Review
$1,055.00
$1,326.00* Save $271.00
Out of Stock

Call 1-844-682-0205 or CHAT for more options

Welding type:

Mig

Mig

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

Power supply:

110V

110V

  • MIG Welding
  • Single-Phase Input
  • 3-Year Power Warranty

Millermatic 141 MIG welder #907612

Millermatic 141 Mig Welder #907612 product overview videoThe Millermatic 141 is an all-in-one MIG welder  capable of welding 24 gauge- 3/16 in. (0.8-4.8mm) mild steel. This welder is very simple to set up, thanks to Miller's breakthrough Auto-Set system. All you have to do is set the wire diameter and weld parameters and you are ready to start welding. You can also set the weld parameters manually for broader applications.

How often have you started a project and it spatters all over? The Millermatic 140 features Miller's Smooth-Start technology for a smooth, spatter-free start. No more pop-gun starts or spatter to clean up. It's the best starting machine in the small MIG category.

It's also easier and faster to set up than ever. The durable cast aluminum feed head incorporates a dual groove, quick-change drive roll and spring-loaded tension arm with calibrated tension knob. If airflow is blocked or the duty cycle is exceeded, the Thermal Overload Protection shuts down the unit. If the tip is shorted to the work, the "Tip Saver" short circuit protection shuts down output. The trigger reset permits quick reset right from the torch rather than the unit. The wire is electronically "cold" until the trigger is pulled. This makes it easier and safer to position the torch to work before starting to weld.

Switching from solid to flux-cored wires has never been easier. The easy access to output studs provides convenient polarity changeover. The self-resetting motor protection circuit eliminates the need to find and replaces fuses.

Millermatic 141 MIG welder Features:

  • Auto-Set – automatically sets your welder to the proper parameters. No hassles, just set the wire diameter and material thickness, and then start welding.
  • Manual Mode – allows you flexibility so you can manually set your machine when welding aluminum and stainless steel
  • Thermal Overload Protection – Automatically shuts down your unit and activates the over-temperature light when airflow is blocked or the duty cycle is exceeded. Once the fault is corrected and the unit is cooled, it will automatically reset.
  • Standard Built-In Solid-State Contractor Circuit – This keeps wire electrically “cold” until the trigger is pulled. This is a safety feature so you can position the welder before starting your weld.
  • Smooth-Start – Gives you a smooth, spatter-free start to your welding. This is the best starting machine in the small Miller MIG welder category.
  • Spool Gun Compatible - Weld from 18 gauge to 1/4 in. aluminum using the Miller Spoolmate 100 spool gun hooked up to a 100 auto-set.
  • NEW Angled Durable Cast Aluminum Drive System – designed to make your setup quicker and easier, an incorporation of dual groove quick-change drive roll and spring-loaded tension arm with calibrated tension knob. Angled to improve feedabilty and gun liner life.
  • “Tip Saver” Short Circuit Protection – Extends the contact tip life and protects the internal components from damage by shutting down the output when tip is shorted to the work. The Trigger reset allows a quick reset at the torch rather than the unit.
  • Easy Output Studs Access – Gives you convenient polarity changeover when you are switching from solid or flux-cored wires.

Applications

  • Farm and Ranch
  • Field Maintenance and Repair
  • Home/Hobby
  • Mechanical Contracting
  • Metal Art/Sculpture
  • Motorsports (car, truck, bike, etc.)
  • Schools/Training
  • Welding Projects

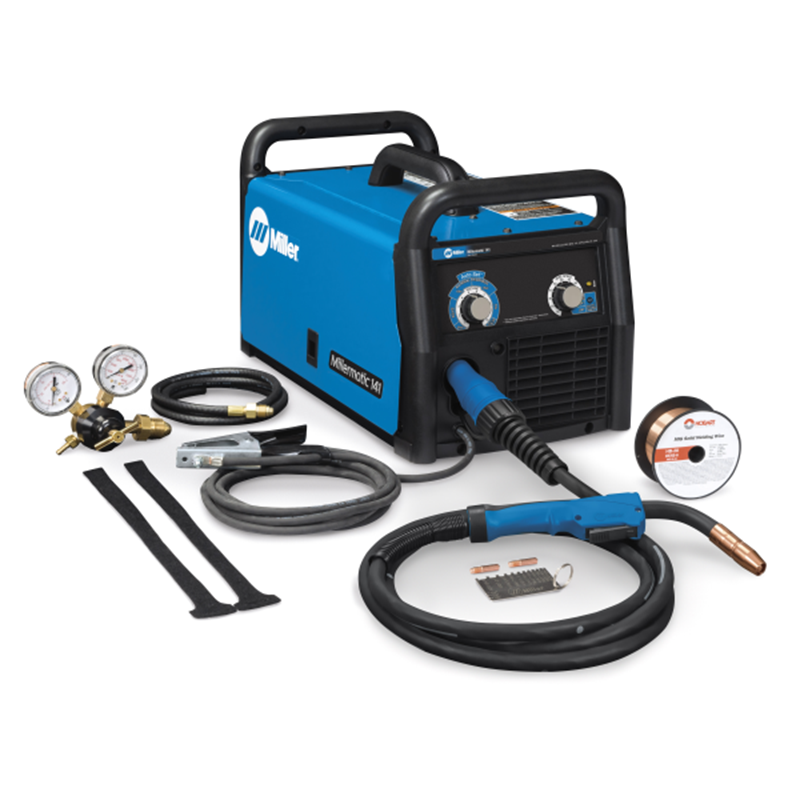

What's Included:

  • Hook-and-loop cord wraps
  • 6.5-ft. (2 m) power cord with plug
  • 10-ft. (3 m) MDX™-100 MIG Welding Gun
  • 10-ft. (3 m) work cable with clamp
  • Argon and AR/CO2 mix flow gauge regulator with gas hose
  • Hobart® spool of .030-in. (0.8 mm) solid wire
  • Quick Select drive rolls for .024-in (0.6 mm) or .030/.035-in. (0.8/0.9 mm) solid wire, and .030/.035-in. (0.8/0.9 mm) flux-cored wire
  • Two contact tips for .030-in. (0.8 mm) wire
  • Material thickness gauge (#229 895)

View All Miller Welding Machines

For the best prices on Miller welders, welding safety equipment, and plasma cutting machines, shop Welders Supply online.

Other Versions of the Miller Dynasty 350:

This product replaces these legacy models:

General Specifications

Input Power Requires 1-Phase power
115 V, 20 Amps, 60 Hz
Rated Output 90 Amps at 18 VDC, 20% duty cycle
Welding Amperage Range 30 - 140 Amps
Wire Speed 15 - 360 IPM (.40 - 9.1 m/min)
Net Weight 51lb (27.3kg)
WireDiameter Capacity .024 - .030 in (0.6 - 0.8 mm) Solid Steel
.024 - .030 in (0.6 - 0.8 mm) Stainless
.030 - .035 in (0.8 - 1.2 mm) Flux Cored
MaxSpoolSize Capacity 8 in (203 mm)

SHIPPING DIMENSIONS

Height: 11.00 Inches
Width: 13.00 Inches
Length: 21.00 Inches
Weight: 65 Lb(s) 0 Oz

Manufacturer Reviews

By: IrishJon
Everyone in the welding and metal working fields knows exactly what you are talking about when you speak 9ne word, that word is 'Miller'. There is a reason for that and it is this, every single product makes is top of the line at good prices. The Milermatic 141 series welder is an amazing welder, once you get the feel of this machine you can weld thicker materials than are stated on the box. Installing new rolls of wire is easier than taking the welder out of the box. All of the controls are clearly marked and easy to adjust and read. The cables are made of fantastic materials and the gun itself fits perfectly in your hand and makes this welder a snitch to use no matter what your welding capabilities are. I strongly suggest buying this welder if you are s beginner or someone that is just a hobby welder. Either way you will be more than satisfied with this welding machine. One last thing the warranty Miller offers is amazing as is their customer service reps!

Product Questions and Answers


Q - What spoolgun works with this? A - The Miller Spoolmate 100 MIG Spoolgun, part #300371
Q - Inverter or transformer based? A - Inverter.
Q - Can this be run with a generator? A - Yes. You will need at minimum a 7000 watt generator and a 30 amp kva plug for it to work well.

Have a question about this product? Submit your question using the form below

Related Products

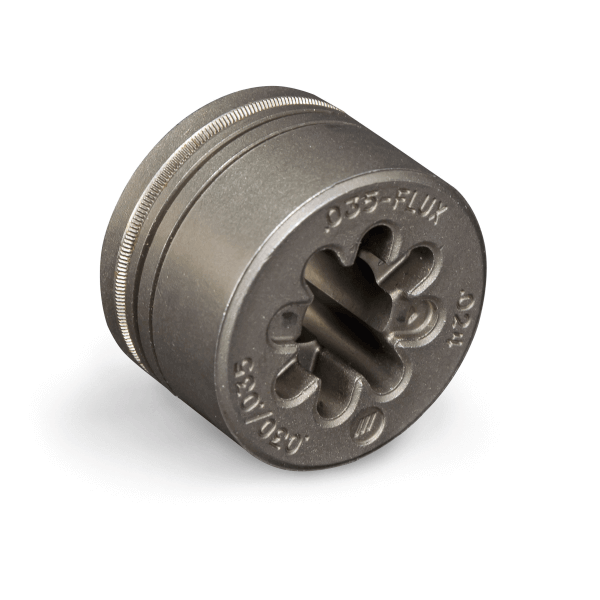

Replacement Millermatic MIG Welder Drive Roll
.024, .030-.035V, .035VK Drive Roll #261157
$26.05
$29.70
Fabshield® 21B 2lb Spool
HOBART Fabshield #21B 2lb Spool
$25.91
$27.25
Fabshield® #21B 10lb Spool
HOBART Fabshield 21B 10 LB Spool
$115.00
$117.90
Hobart HB-28 Mig Welding Wire #S305401
Hobart HB-28 ER70S-6 .024 Mig Welding Wire choose, 2 LB, 10 LB
Starting at $17.38
Hobart HB-28 Mig Welding Wire #S305406
Hobart HB-28 ER70S-6 .030 Mig Welding Wire choose, 2 LB, 10 LB
$16.00
$17.02
Hobart HB-28 Mig Welding Wire #S305408
Hobart HB-28 ER70S-6 .035 Mig Welding Wire choose, 2 LB, 10 LB
$14.60
$15.52
Miller .023 Contact Tip #087299
Miller .023 Contact Tip (Pack of 10)
$14.70
$23.90
Miller .030 Contact Tip #000067
Miller .030 Contact Tip (Pack of 10)
$14.40
$22.80

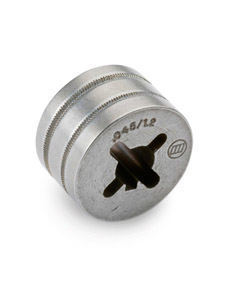

Miller .030-.045 V-Knurl Drive Roll #202926
