Stick Welding
Gasoline Engine
120/240 1PH Electric Input
110-185A Output

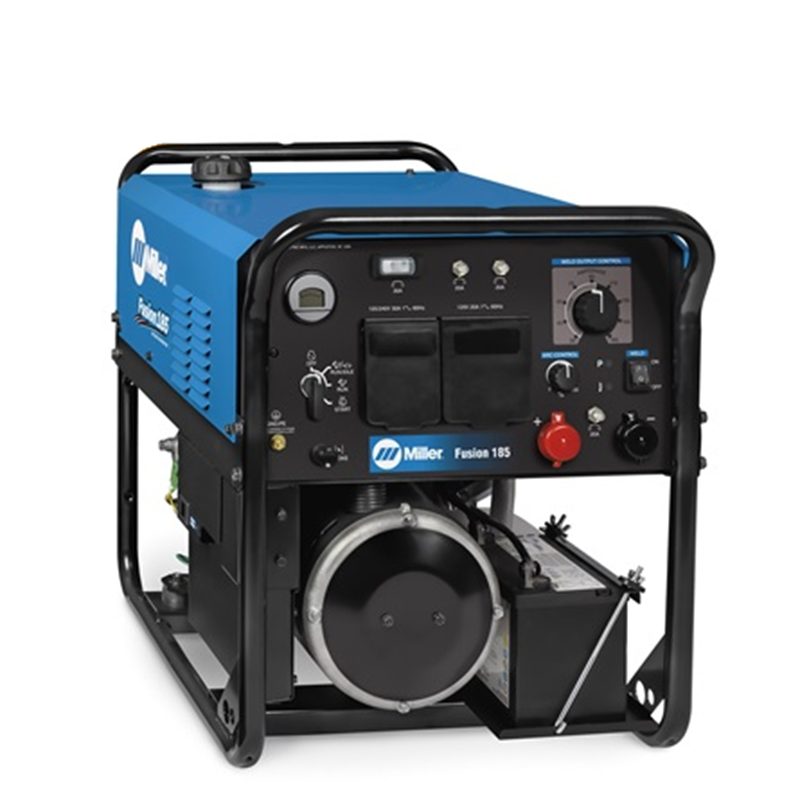

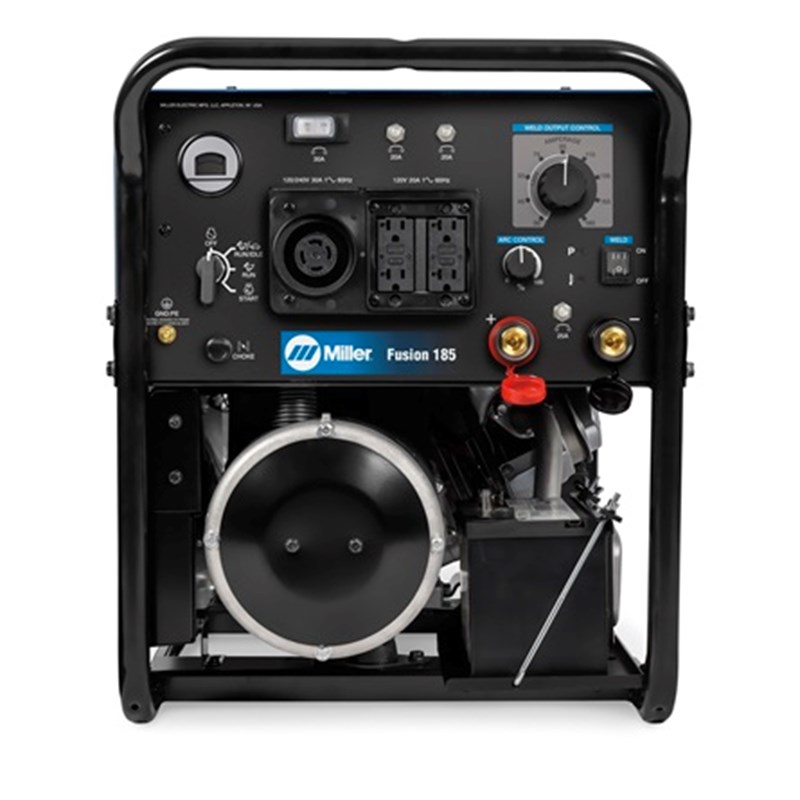

Miller 3 year warrantyThe Fusion welder/generator weighs 242 pounds. That’s up to 50 pounds less than similar machines, so moving the Fusion is easier and faster. Less time is spent waiting and more work can get done.
Uses inverter technology to deliver a smooth, stable stick arc that’s forgiving of variations in arc length and travel speed, so it’s easier to produce clean welds that meet specifications and avoid the time and expense of rework.
PowerShift technology provides weld capabilities using either the Fusion engine or 120/240-volt utility power. You’ll have the confidence of knowing that you can weld virtually anywhere - outdoors and indoors - with just one machine.
The multi-voltage plug (MVP) make it easy to connect the welder to either 120- or 240-volt power.
| Miller Fusion 185 Specifications | |
|---|---|
| Processes | Stick (SMAW) |
| Industries Interests | Construction Farm and Ranch Maintenance and Repair - Field Operations Maintenance and Repair - In Plant Work / Service Trucks |
| Engine Brand | Kohler |
| Engine Idle Speed | 2500 RPM |
| Engine Weld Speed | 3,600 |
| Fuel Tank Size | 6.25 gal. (23.7 L) |
| Fuel Type | Gasoline |
| Horsepower | 13.4 hp |
| Weldable Metals | Steel |
| Rated Output | 185 A at 26.4 V, 20% duty cycle 110 A at 24.4 V, 100% duty cycle |
| Single Phase Generator Continuous Power | 6200 W |
| Single Phase Generator Peak Power | 6500 W |
| Input Voltage | 110/115/120 V 220/230/240 V |
| Current Type | DC |
| Portability | Lift Eye (Optional) Running Gear / Cart (Optional) |
| Weld Output | CC |
| Warranty | 3 Years Miller's True Blue Warranty |
SHIPPING DIMENSIONS |
|
| Height: | 24.75 Inches |
| Width: | 20.13 Inches |
| Length: | 31.25 Inches |
| Weight: | 242 Lb(s) 0 Oz |
