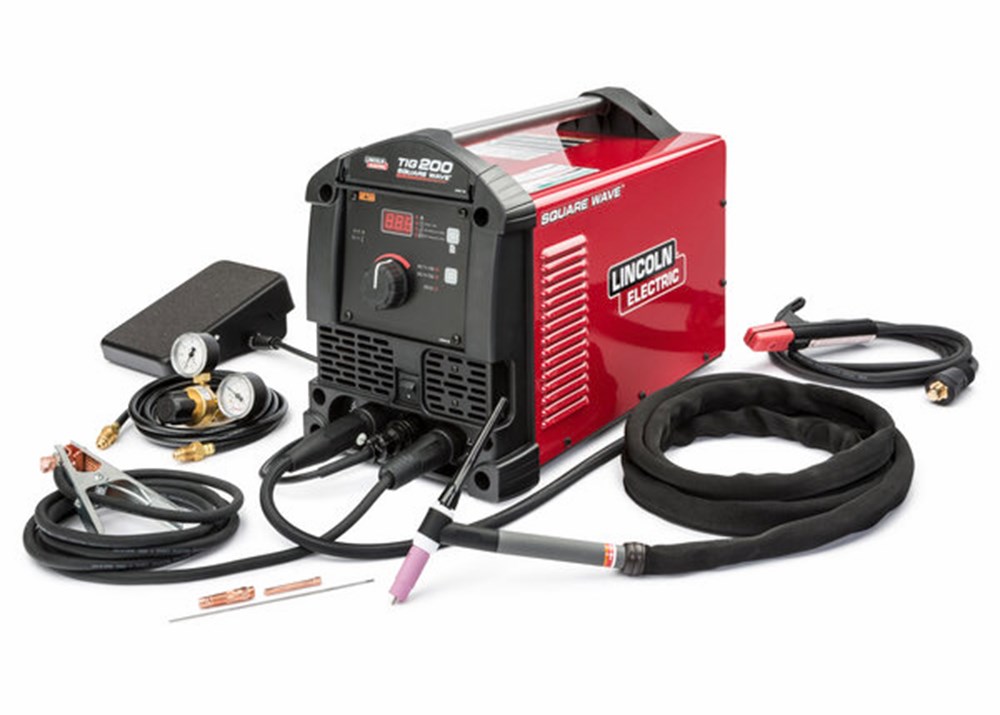

Hassle-Free WarrantyThe Square Wave® TIG 200 is a portable TIG and stick welding machine that lets hobbyists, makers, small fabricators and craftsmen explore their creativity.
It is designed to help expand your welding expertise. As your skills and confidence grow, you can take advantage of the Square Wave TIG 200's additional functionality. No matter your skill level, you won't be disappointed.
The Square Wave TIG 200 provides smooth and stable AC TIG welding on aluminum and DC TIG welding on steel, stainless steel and chrome-moly.

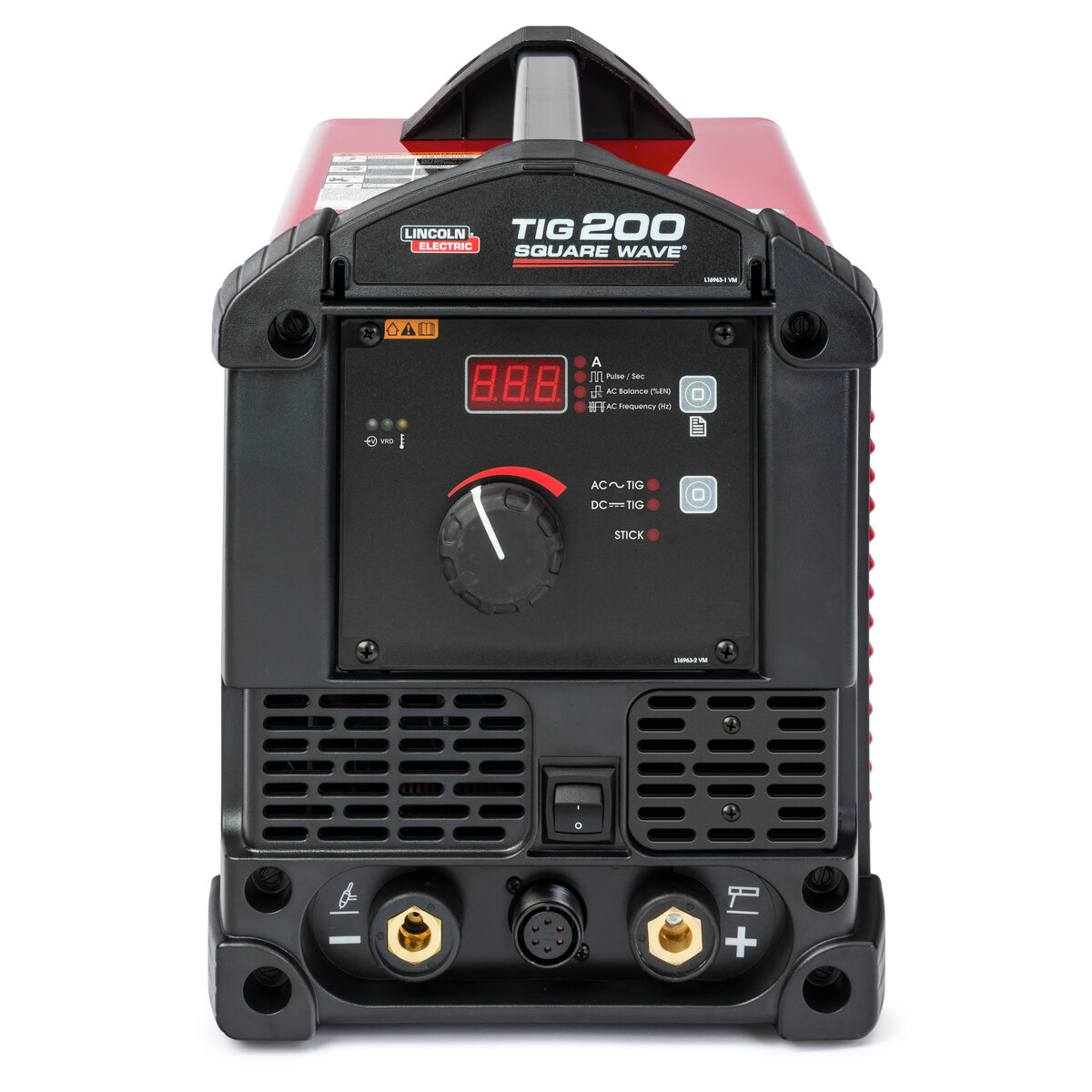

A user-friendly interface enables the operators to set it, forget it and weld.
The user interface makes machine setup easy. Available features, such as Pulse, which provides a drumbeat-like rhythm for filler metal deposition, make you become a better TIG welder - faster.
| Lincoln Square Wave® TIG 200 TIG Welder #K5126-1 - Specifications | |
|---|---|
| Input Voltage | 120/230 |
| Input Current | 120V TIG: 25% Duty Cycle 21A 40% Duty Cycle 17A, 60% Duty Cycle 14A, Stick: 20% Duty Cycle 19A 60% Duty Cycle 16A 230V TIG: 25% Duty Cycle 22A 40% Duty Cycle 17A 60% Duty Cycle 13A |
| Input Hertz | 50/60 |
| Input Power | 120/230/1/50/60 |
| Input Phase | 1 |
| Mode Icon | CC |
| Output Range | 120V TIG: 10-125A, Stick: 10-90A, 230V TIG: 10-200A, Stick: 10-170A |
| Polarity | AC/DC |
| Rated Output | 120V TIG: 125A/25%, 100A/40%, 85A/60%, 120V Stick: 75A/20%, 65A/60% 230V TIG: 200A/25%, 160A/40%, 130A/60% Stick: 170A/20%, 100A/60% 120V AC TIG: 110A/25% |
| Typical Application | Automotive Brewery Distillery General Fabrication Maintenance & Repair |
| Warranty | 3 Years |
SHIPPING DIMENSIONS |
|
| Height: | 14.00 Inches |
| Width: | 10.75 Inches |
| Length: | 19.25 Inches |
| Weight: | 46 Lb(s) 8 Oz |
