Miller MULTIMATIC 200 115/230 50/60HZ 1PH #907518

Part Numbers: 907518
1 Review
$3,549.00
$4,494.00* Save $945.00

Included with your purchase ( ) :

Select your Bundle!
Edit

    Call 1-844-682-0205 or CHAT for more options

    Welding type:

    Mig

    Mig

    Stick

    Stick

    Tig

    Tig

    Material type:

    Mild Steel

    Mild Steel

    Stainless Steel

    Stainless Steel

    Aluminum

    Aluminum

    Power supply:

    110V

    110V

    220V Single Phase

    220V Single Phase

    • Miller Multi-Voltage Plug
    • TIG Welding
    • MIG Welding
    • Stick Welding
    • Lightweight
    • Single Phase Input
    • 3-Year Miller Warranty

    Miller MULTIMATIC 200 Welder #907518

    The Miller MULTIMATIC 200 Welder is Miller's most versatile machine to date for MIG and TIG welding and the only all-in-one portable multiprocess welder. At just 29 lbs., it's portable enough to take just about anywhere. And with the ability to run at 120 volts or 230 volts, powering up won't be an issue.

    Multimatic 200 Miller welder portable

    Miller Welding Equipment Auto-Set Elite - Miller's Auto-Set Elite makes it easy to fine-tune your setting for multiple types of materials and processes.  It's a cinch to set up and use.

    Excellent Arc Characteristics - The Multimatic 200 gives you positive arc starts and an extremely stable arc for minimal spatter on both mixes of gases and straight CO2. Straight CO2 is less expensive than running mixes or argon.

    The Miller Spoolmate 100 #300371 OPTIONAL: Simple Aluminum Solution - Add a Miller Spoolmate 100 direct connect spool gun and you can weld aluminum up to 1/4 inch with 4043 aluminum wire. It's an economical and reliable solution for aluminum welding projects.

    Fan-On-Demand - The Millermatic 200 fan technology only operates when airborne contaminants are pulled through the machine. This reduces both noise and power consumption.

    Plugs in Anywhere - The Millermatic 200 features Miller's Multi-Voltage Plug (MVP). It allows you to connect easily to either 120 or 230-volt power receptacles. No tools are required to change the connection ports. Just choose the plug that fits the receptacle and connect it to the power cord.

    OPTIONAL TIG Contractor Kit - This kit has everything you need for remote TIG welding.

    Miller's Auto-Line Technology - Automatically connect to 115 or 230 VAC, without having to remove the cover and change any settings.

    Miller MULTIMATIC 200 Welder Applications:

    • Aluminum Welding
    • Farm and Ranch
    • Field Maintenance and Repair
    • Home/Hobby
    • In-Plant Maintenance and Repair
    • Mechanical Contracting
    • Motorsports (car, truck, bike, etc.)
    • Rental
    • Schools/Training

    What's Included:

    • Multimatic 200
    • 10-ft. (3 m) MDX™-250 MIG gun
    • 13-ft. (4 m) lead with electrode holder and 25-mm Dinse connector
    • 10-ft. (3 m) work lead with clamp and 25-mm Dinse connector
    • Argon and AR/CO2 mix regulator/flow gauge with 12-ft. (3.7 m) hose
    • Power cord and MVP plugs for 120 and 240 V
    • Quick Select™ drive roll for .024 in (0.6 mm) or .030/.035 in (0.8/0.9 mm) solid wire, and .030/.035 (0.8/0.9 mm) flux cored wire
    • Two contact tips for .030-in. (0.8 mm) wire, and two contact tips for .035-in. (0.9 mm) wire
    • Material thickness gauge #229895
    • Information/settings chart and quick setup guide

    View all Miller Welding and Cutting Products

    Browse all welders and welding machine accessories available at the best prices online.

    Other Miller Multimatic 200 Options:

    Miller MULTIMATIC 200 Welder General Specifications:

    Imput Power 120 V, 20A, 50/60 Hz, single phase
    230 V, 18 A, 50/60 Hz, single phase
    Rated Output CV: MIG/Flux-cored
    120/230 VAC -- 110 A at 19.5 V, 20% Duty Cycle
    120/230 VAC -- 150 A at 21.5 V, 20% Duty Cycle
    CC: TIG
    120 VAC -- 150 A at 16 V, 30% Duty Cycle
    230 VAC-- 150 A at 16 V, 30% Duty Cycle
    CC: Stick
    120 VAC -- 100 A at 24 V, 35% Duty Cycle
    230 VAC -- 150 A at 26 V, 30% Duty Cycle
    Welding
    Amperage
    Range
    MIG 30-200 Amps
    TIG 5-150 Amps
    Stick 20-150 Amps
    Wire Speed 70- 425 IPM (1.8 - 10.8 m/min)
    Net Weight 29 lbs. (13.2 kg)
    Max Open
    Circuit Volt
    90 VDC
    (22-25 VCD) Sense voltage for Stick and Lift-Arc TIG
    Wire Diameter
    Capacity
    .023 - .035 in (0.6 - 0.9 mm) Solid Steel
    .023 - .035 in (0.6 - 0.9 mm) Stainless
    .030 - .045 in (0.8 - 1.1 mm) Flux Cored
    .030 - .035 in (0.8 - 0.9 mm) Aluminum
    Max Spool Size
    Capacity
    8 in (203 mm)
    Dimensions H: 14.5 in (368 mm)
    W: 9.75 in (248 mm)
    D: 17.0 in (432 mm)

    SHIPPING DIMENSIONS

    Height: 10.00 Inches
    Width: 15.00 Inches
    Length: 17.00 Inches
    Weight: 50 Lb(s) 0 Oz

    Manufacturer Reviews

    By: ShopUSA
    I have used the Miller Multimatic 200 for 2 full years now in all kinds of weather and with all types of material. With its autoadjust feature, I rarely have to go to manual settings. I bought a second one just to be sure I have the best ready at a moments notice!

    Product Questions and Answers


    Q - How large of a spool can the Miller Multimatic 200 hold? A - It can hold up to 10 lbs of wire.
    Q - What size generator should be used with the Miller Multimatic 200? A - The Miller Multimatic 200 will require 4.5 KW for welding at 150 amps at 26 volts at a 30% duty cycle.
    Q - Can the Multimatic 200 weld aluminum? A - The Miller Multimatic 220 is not able to TIG weld aluminum. It comes ready to Stick and MIG weld, but will need an additional gun add-on to MIG weld aluminum.
    Q - Does the Miller Multimatic 200 come with a regulator? A - Yes, it comes with a Smith Argon and AR/CO2 mix regulator.

    How to connect shielding gas supply:

    1. Secure gas cylinder.

      Obtain gas cylinder and chain to running gear, wall, or other stationary support so cylinder cannot fall and break off valve.

    2. Clean gas valve.

      Remove cap, stand to side of valve, and open valve slightly. Gas flow blows dust and dirt from valve. Close valve.

    3. Install.

      Install so face is vertical.

    4. Connect gas hose.

      Connect gas hose between regulator/flowmeter gas hose connection, and the appropriate fitting for gas type on rear of welding power source.

    5. Adjust flow.

      Typical flow rate for CO2 shielding gas and MIG welding is 15 to 30 cfh and mixed gas is 25 to 45 cfh.

    6. Install adapter.

      Install adapter with O-ring between regulator/flowmeter and CO2 cylinder.

    Have a question about this product? Submit your question using the form below

    Related Products

    Replacement Millermatic MIG Welder Drive Roll
    .024, .030-.035V, .035VK Drive Roll #261157
    $26.05
    $29.70
    Fabshield® 21B 2lb Spool
    HOBART Fabshield #21B 2lb Spool
    $25.91
    $27.25
    Fabshield® #21B 10lb Spool
    HOBART Fabshield 21B 10 LB Spool
    $115.00
    $117.90
    Hobart HB-28 Mig Welding Wire #S305401
    Hobart HB-28 ER70S-6 .024 Mig Welding Wire choose, 2 LB, 10 LB
    Starting at $17.38
    Hobart HB-28 Mig Welding Wire #S305406
    Hobart HB-28 ER70S-6 .030 Mig Welding Wire choose, 2 LB, 10 LB
    $16.00
    $17.02
    Hobart HB-28 Mig Welding Wire #S305408
    Hobart HB-28 ER70S-6 .035 Mig Welding Wire choose, 2 LB, 10 LB
    $14.60
    $15.52
    Miller .023 Bernard Contact Tip #T-023
    Miller .023 Bernard Contact Tip (Pack of 10)
    $12.55
    $18.70
    Miller .030 Contact Tip #T-030
    Miller .030 Contact Tip (Pack of 10) Bernard
    $12.00
    $16.30
    Miller .030-.045 V-Knurl Drive Roll #202926
    Miller .030-.045 V-Knurl Drive Roll
    $34.20
    $39.04
    Miller .035 Bernard Contact Tip #T-035
    Miller .035 Bernard Contact Tip (Pack of 10)
    $13.80
    $18.70
    Miller AccuLock MDX Consumables Kit 1880275 for use with MDX-250 / MDX-250 EZ-Select™ MIG guns
    Miller AccuLock™ MDX™ Consumables Kit, .030" (0.8mm) wire 1880275
    $61.80
    $66.18
    Miller AccuLock MDX Consumables Kit 1880276 for use with MDX-250 / MDX-250 EZ-Select™ MIG guns
    Miller AccuLock™ MDX™ Consumables Kit, .035" (0.9mm) wire 1880276
    $61.80
    $66.18

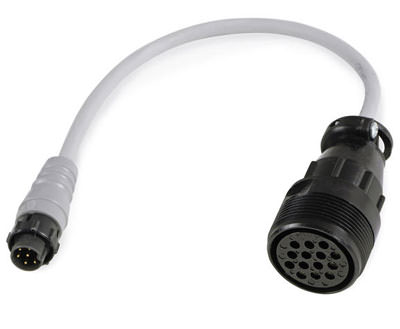

    ADAPTER CORD 1 FT, 6 PIN MACHINE 14 PIN CONTROL #300507
    MILLER ADAPTER CORD 1 FT, 6 PIN MACHINE 14 PIN CONTROL #300507
    $80.80
    $91.00

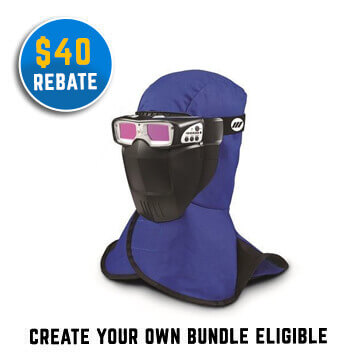

    Shop Miller Auto darkening Weld Mask Goggles #267370
    Miller AutoDarkening Weld Mask Goggles #267370
    $200.85
    $247.58
    Bobcat 250 Diesel, GFCI #907565
    Miller Bobcat 250 Diesel, GFCI #907565
    $9,352.50
    $12,169.90
    Out of Stock

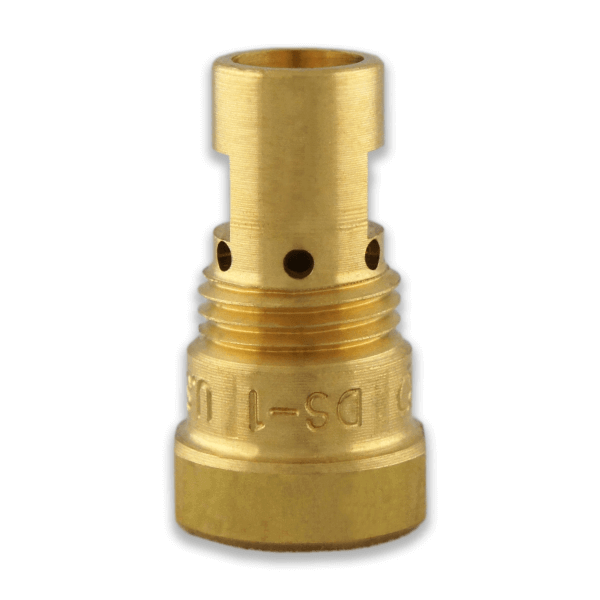

    Centerfire™ Gas Diffuser, Slim Nozzle (10 per pkg) #DS-1
